Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|

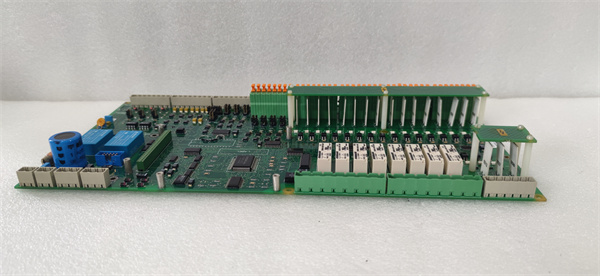

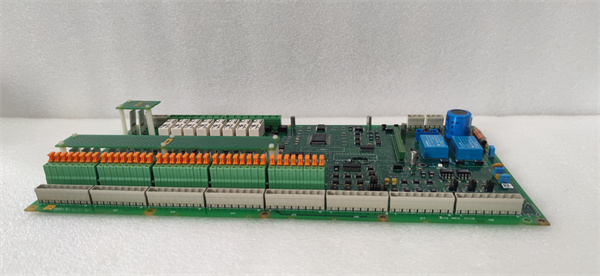

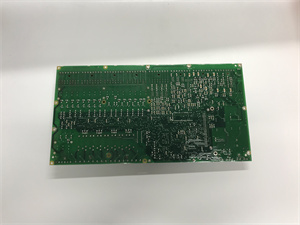

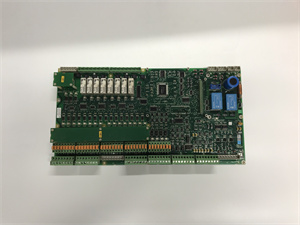

| Product Model | 3ADT312511P2103 SDCS-PIN-20XB |
| Manufacturer | ABB |
| Product Category | Power Conversion Module |
| Type | SDCS-PIN 205B |
| Revision | D |
| Material Rating | 94V-0 |
| Weight | 640 g |
| Operating Temperature Range | -20°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 175 mm × 87 mm × 43 mm |
| Certifications | CE, RoHS |
3ASC25H209
Product Introduction
The ABB 3ADT312511P2103 SDCS-PIN-20XB is a highly reliable and efficient power conversion module designed for industrial automation systems. This module is part of ABB’s family of power electronics and is specifically designed for use in DCS (Direct Current Systems) for motor control applications.
Core Advantages and Technical Highlights
High Efficiency and Reliability: The SDCS-PIN-20XB features advanced electronic components and materials, ensuring high precision and reliability in harsh industrial environments.
Wide Operating Temperature Range: The module operates reliably within a temperature range of -20°C to +70°C, making it suitable for a variety of industrial settings.
Multiple Protection Functions: The module includes overheat, overload, and short-circuit protection, ensuring safe and stable operation.
Compact Design: The SDCS-PIN-20XB features a compact form factor, making it easy to install and integrate into existing systems.
Material Rating: The module has a 94V-0 flame-resistant design, ensuring safe operations in environments where fire safety is critical.
3ASC25H209
Typical Application Scenarios
The ABB 3ADT312511P2103 SDCS-PIN-20XB is widely used in various industrial sectors, including:
-
Manufacturing Plants: For controlling production lines, robotic arms, and packaging machinery.
-
Power Plants: For monitoring and controlling power generation processes.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Oil & Gas Industry: For high-precision control and monitoring of industrial processes.
Related Model Recommendations
-
3ADT312511P2403: A variant with different specifications, suitable for specific applications.
-
SDCS-PIN-205B: An earlier revision of the module, suitable for less demanding applications.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 3ADT312511P2103 SDCS-PIN-20XB comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
