Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3BHE009017R0102 XVC724BE102 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Series | ACS2000 |
| Input Voltage Range | 18-55 VDC |
| Output Voltage Range | 24V DC |
| Output Current Range | 2.5 A |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +100°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 138 mm × 60 mm × 15 mm |
| Weight | 0.04 kg |
| Certifications | CE, UL, RoHS |
| Communication Protocols | Ethernet (Modbus/TCP), RS-485 (Modbus/RTU) |
| Protection Level | IP20 |
| Application Areas | Industrial Automation, Robotics, Electrical Automation |
3BHE009017R0102 XVC724BE102
Product Introduction

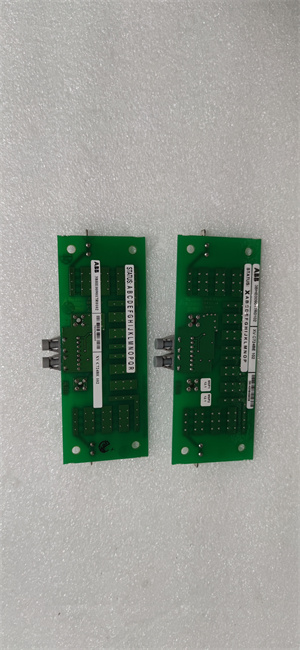

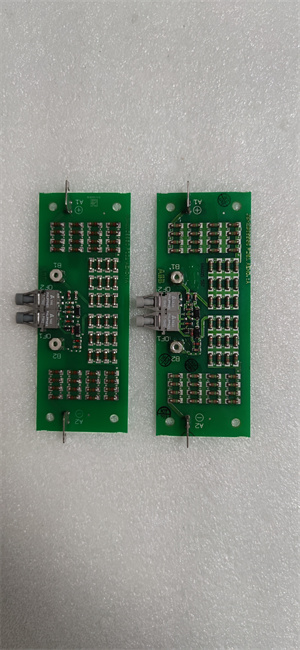

The ABB 3BHE009017R0102 XVC724BE102 is a high-performance Voltage Level Short Circuit Detection (VLSCD) board designed for industrial automation and control systems. It is part of the ACS2000 series and is known for its robustness, reliability, and efficiency in harsh industrial environments.
Core Advantages and Technical Highlights
High Performance: The module features advanced electronic components and materials, ensuring high precision and reliability in harsh industrial environments.
Wide Operating Range: The module operates reliably within a temperature range of -40°C to +85°C and a humidity range of 5% to 95% non-condensing.
Advanced Communication Protocols: The module supports multiple industrial protocols, including Ethernet (Modbus/TCP) and RS-485 (Modbus/RTU), enabling seamless integration with existing systems.
User-Friendly Interface: The module features a user-friendly interface with intuitive navigation keys, allowing for quick setup and easy configuration.
Real-Time Processing: It can quickly respond to precise control requirements, making it suitable for applications such as electric arc furnace control and electrode position control.
Built-in Diagnostics: The module includes built-in fault diagnosis and historical data recording functions, supporting predictive maintenance.
Stable and Reliable: The module uses high-quality materials and advanced production processes to ensure stability and reliability in harsh industrial environments.
3BHE009017R0102 XVC724BE102
Typical Application Scenarios
The ABB 3BHE009017R0102 XVC724BE102 is widely used in various industrial sectors, including:
-
Steel Smelting: Core control unit for electric arc furnaces in scrap steel melting.
-
Metal Processing: Used in alloy production equipment in foundries and smelters.
-
Industrial Automation: For process control and machine control applications.
-
Robotics: For real-time data acquisition and control actions, enhancing robot efficiency and safety.
Related Model Recommendations
-
ABB 70BV05A-ES: Known for its robust I/O capabilities.
-
ABB 70EA2a-ES: A reliable choice for general control tasks.
-
ABB 70EA01B-ES: Ideal for communication-intensive applications.
-
ABB 70EB0lb-E: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 3BHE009017R0102 XVC724BE102 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
