Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 3BHE037864R0106 |
| Manufacturer | ABB |
| Product Category | Voltage Measurement Module |
| Measurement Range | 0 to 1000 V |
| Accuracy | ±0.1% ± 2 counts |
| Response Time | ≤ 5 ms |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Power Consumption | ≤ 50 mW |
| Operating Voltage | 24V DC |
| Dimensions | 160 mm x 100 mm x 80 mm |
| Weight | 0.5 kg |
| Certifications | CE, CSA, UL |

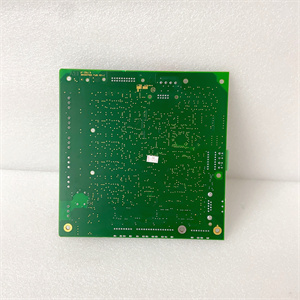

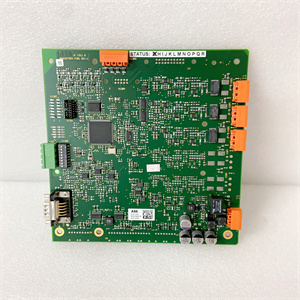

ABB 3BHE037864R0106
Product Introduction
The ABB 3BHE037864R0106 is a high-precision voltage measurement module designed for industrial automation systems. It ensures reliable data collection essential for control and monitoring applications.
Core Advantages and Technical Highlights
High Precision and Reliability
The ABB 3BHE037864R0106 features an accuracy of ±0.1% ± 2 counts, ensuring precise data collection.
Fast Response Time
With a response time of ≤ 5 milliseconds, this module quickly adapts to voltage changes, making it suitable for dynamic industrial processes.
Robust Design
The module operates reliably in a wide temperature range (-20°C to +60°C) and humidity conditions (0% to 95% RH, non-condensing).
Low Power Consumption
The compact design consumes minimal power, less than 50 milliwatts, which helps in energy conservation.

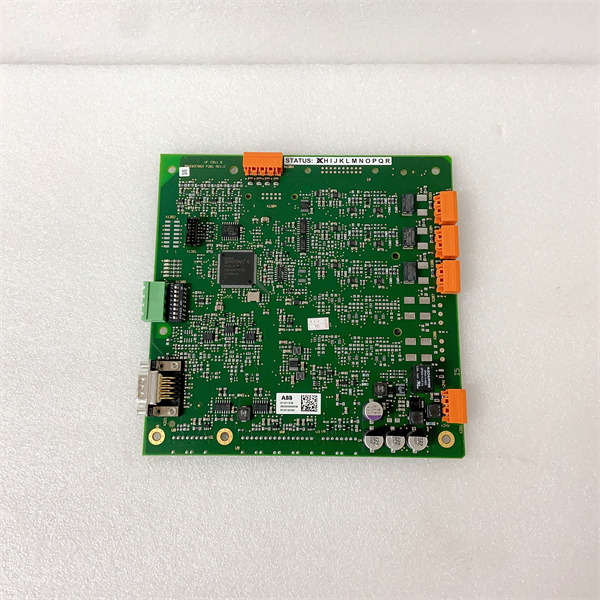

ABB 3BHE037864R0106
Typical Application Scenarios
The ABB 3BHE037864R0106 is widely used in:
-
Industrial Automation Systems: For precise voltage measurements and control.
-
Power Distribution Systems: For monitoring voltage levels in substations and control panels.
-
Environmental Monitoring: For measuring and monitoring environmental parameters such as water quality and air quality.
Related Model Recommendations
-
ABB 3BHE037864R0106 UFC911 B106: A similar model with unique features.
-
ABB 3BHE037864R0106-02: Another model in the same series with different specifications.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
