Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 3BHL000986P7000 LXN1604-6 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Operating Voltage | 24V DC |
| Input Voltage Range | 90-350V AC/DC |
| Output Voltage | 27V DC |
| Output Power | 500W |
| Operating Temperature Range | -25°C to +55°C |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Communication Interface | Backplane communication within DCS/PLC system |
| Dimensions | 35 mm x 177 mm x 170 mm |
| Weight | 1.1 kg |
| Certifications | CE, UL, IEC 61131-2 |

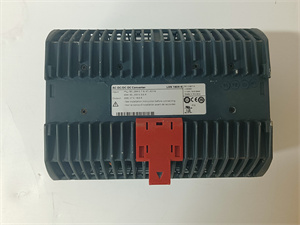

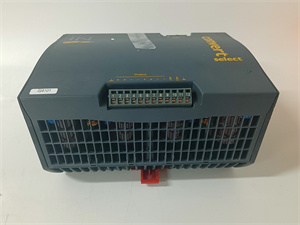

ABB 3BHL000986P7000 LXN1604-6
Product Introduction
The ABB 3BHL000986P7000 LXN1604-6 is a high-performance power module designed for industrial automation systems. It functions as either an AC-DC or DC-DC converter, delivering a stable 27V output at 500W。
Core Advantages and Technical Highlights
High Efficiency and Reliability
The module offers high efficiency, up to 89%, and is designed for long-term reliability in harsh industrial environments。
Robust Design
It features a rugged 35 mm DIN-rail snap-fit design, making it easy to install and maintain. The module is protected against electrical disturbances and electromagnetic interference。
Advanced Protection Features
The module includes power factor correction, low inrush current, and short-term output peak power capability. It also features overload and short-circuit protection。

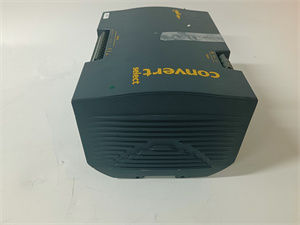

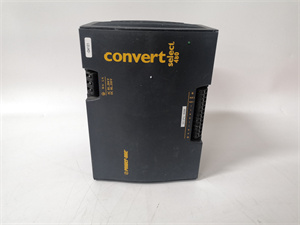

ABB 3BHL000986P7000 LXN1604-6
Typical Application Scenarios
The ABB 3BHL000986P7000 LXN1604-6 is widely used in:
-
Industrial Automation: For powering drives and control systems.
-
Power Generation: For stable power supply in power plants.
-
Environmental Monitoring: For reliable power in monitoring systems.
Related Model Recommendations
-
ABB 3BSE003816R1: A related model with similar specifications。
-
ABB 3BSE003832R1: Another model in the same series with unique features。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
