Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 3BSE030220R1 CI854A |
| Manufacturer | ABB |
| Product Category | Industrial Communication Module |
| Communication Protocol | PROFIBUS-DP/V1 |
| Communication Rate | 9.6 kbps to 12 Mbps |
| Power Supply | 24V DC |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | Length: 127.5 mm, Width: 59 mm, Height: 185 mm |
| Weight | 0.59 kg |
| Certifications | CE, UL, RoHS |
| Interface Type | DB female (9-pin) connector |

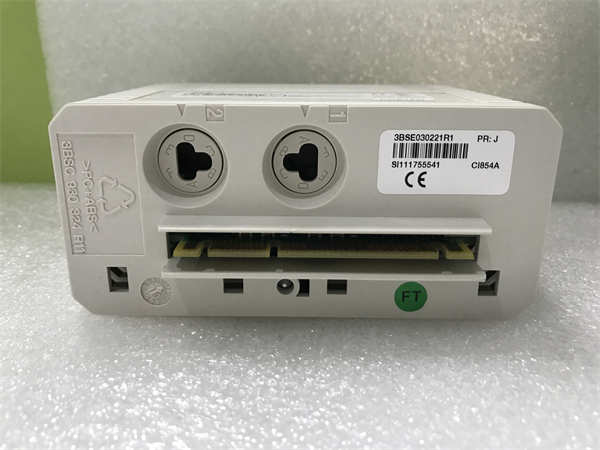

3BSE030220R1 CI854A
Product Introduction
The ABB 3BSE030220R1 CI854A is a high-performance industrial communication module designed for industrial automation systems. It is part of the ABB Advant 800xA series and is used for integrating fieldbus systems into control system architectures.
Core Advantages and Technical Highlights
High-Speed Communication
The module supports PROFIBUS-DP/V1 protocol with a communication rate of up to 12 Mbps, ensuring efficient data exchange in industrial automation networks.
Redundancy and Reliability
The module supports redundant communication channels, enhancing system reliability and availability.
Modular Design
The CI854A includes the communication interface and a baseplate (TP854), making it easy to install and integrate into existing systems.
Wide Application
The module is widely used in various industrial automation applications, including process control, manufacturing automation, and energy management.

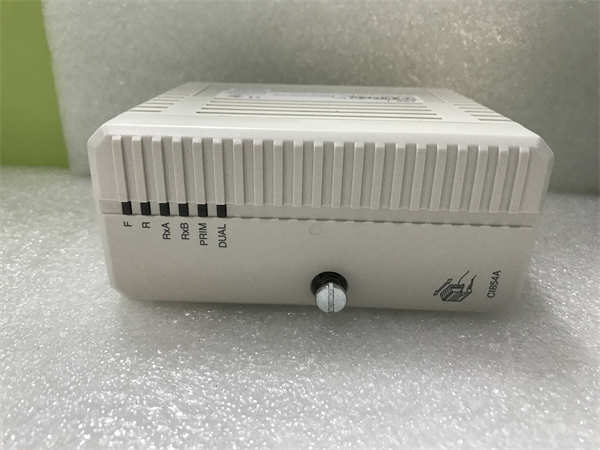

3BSE030220R1 CI854A
Typical Application Scenarios
The ABB 3BSE030220R1 CI854A is widely used in:
-
Process Control: For integrating field devices into DCS systems.
-
Manufacturing Automation: For real-time communication between PLCs and field devices.
-
Energy Management: For monitoring and controlling energy production and distribution systems.
Related Model Recommendations
-
ABB 3BSE030221R1: A related model with similar specifications.
-
ABB CI854BK01: An updated version of the CI854A module.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
