Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 3HAC14550-4/04B |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Operating Voltage | 380V AC |
| Output Power | 14.55 kW |
| Maximum Torque | 100 Nm |
| Control Protocol | EtherCAT |
| Protection Class | IP54 |
| Communication Interface | RS-485 |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 263 mm x 138 mm x 88 mm |
| Weight | 2.35 kg |
| Certifications | CE, UL, RoHS |

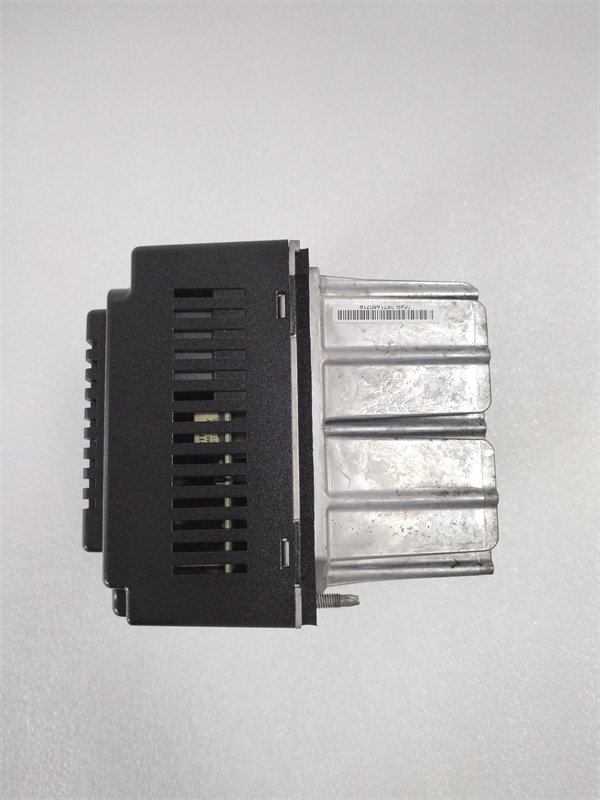

ABB 3HAC14550-4/04B
Product Introduction
The ABB 3HAC14550-4/04B is a high-performance single servo drive unit designed for industrial automation applications. It offers precise control, enhanced efficiency, and robust durability, making it suitable for demanding industrial environments。
Core Advantages and Technical Highlights
High Precision and Reliability
The ABB 3HAC14550-4/04B provides high-precision control with an operating voltage of 380V AC and an output power of 14.55 kW. It supports EtherCAT communication protocol, ensuring efficient data exchange。
Robust Design
The module features a protection class of IP54, making it suitable for industrial environments with dust and splashes. It operates reliably within a wide temperature range of -20°C to +60°C。
Versatile Communication Capabilities
The module supports multiple communication protocols, including RS-485, facilitating seamless integration with existing industrial systems。

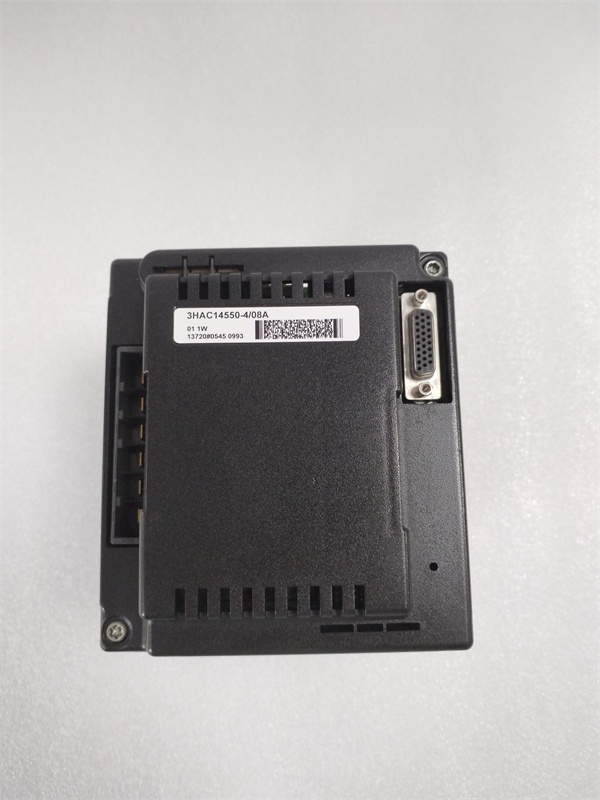

ABB 3HAC14550-4/04B
Typical Application Scenarios
The ABB 3HAC14550-4/04B is widely used in:
-
Industrial Automation: For precise control of production lines and machinery。
-
Power Generation: For monitoring and controlling critical processes in power plants。
-
Environmental Monitoring: For measuring and monitoring environmental parameters such as water quality and air quality。
Related Model Recommendations
-
ABB 3HAC14550-2/09A: A related model with similar specifications。
-
ABB 3HAC17326-1/02: Another model in the same series with unique features。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
