Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB 70EA02A-ES |
| Manufacturer | ABB |
| Product category | Industrial Automation Control Module |
| Operating Voltage | 24 V DC |
| Input Channels | 4 |
| Input Type | 2-wire transmitter signals (4-20 mA, 0-10 V) |
| Precision | ±0.1% FS (typical) |
| Isolation Voltage | 1500 V DC |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions | 90 mm × 36 mm × 70 mm |
| Weight | 120 g |
| Certifications | CE, UL, cULus |

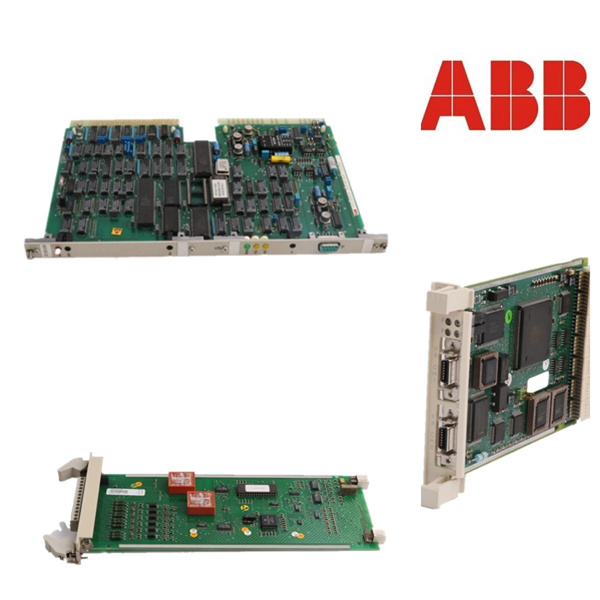

ABB 70EA02A-ES
Product Introduction
The ABB 70EA02A-ES is a high-performance input module designed for industrial automation and process control systems. It is part of the ABB Procontrol P13 series and is used to receive and process signals from two-wire transmitters such as temperature, pressure, and flow sensors.
Core Advantages and Technical Highlights
High Precision and Reliability
The ABB 70EA02A-ES features high measurement precision (±0.1% FS) and robust industrial design, ensuring reliable performance in harsh environments.
Flexible Configuration
The module supports multiple input types (4-20 mA, 0-10 V) and can be configured using ABB’s software tools to meet specific application needs.
Signal Isolation
The module provides electrical isolation (1500 V DC), protecting the control system from interference and ensuring accurate signal transmission.
Easy Integration
The ABB 70EA02A-ES is designed for seamless integration with ABB’s Procontrol systems, facilitating straightforward installation and commissioning.
Typical Application Scenarios
The ABB 70EA02A-ES is widely used in various industrial applications, including:
-
Process Control: Monitoring process variables like temperature, pressure, and flow rate.
-
Data Acquisition: Collecting and processing analog signals for analysis and storage.
-
State Monitoring: Monitoring equipment conditions such as vibration and temperature.
Related Model Recommendations
-
ABB 70EA02A-ES HESG447308R0001: A variant with similar features and specifications.
-
ABB 70EA02A-ES HESG447308R0101: A variant with different specifications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB 70EA02A-ES, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-20°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ABB 70EA02A-ES. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The ABB 70EA02A-ES is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
