Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB ACS800-104-0105-3+Q967 |
| Manufacturer | ABB |
| Product category | Industrial Drive Module |
| Rated power | 75kW |
| Input voltage range | 380-480V AC (±10%) |
| Output voltage range | 0-500V |
| Frequency range | 0.5Hz to 50Hz |
| Control type | Vector Control |
| Overload capacity | 150% for 1 minute |
| Environmental temperature | -10°C to 40°C |
| Humidity range | 5% to 95% RH |
| Installation method | Panel-mounted, IP20 protection |

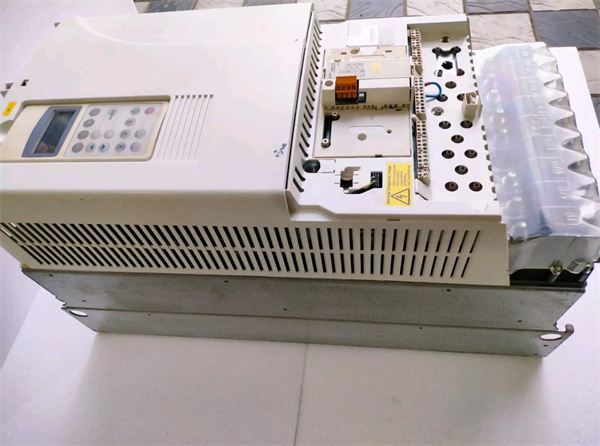

ABB ACS800-104-0105-3+Q967
Product Introduction
The ABB ACS800-104-0105-3+Q967 is a high-performance industrial drive module designed to deliver precise speed and torque control for a wide range of industrial applications. As part of the renowned ACS800 series, this drive module leverages advanced vector control technology to provide high dynamic response and accuracy, making it an essential component in modern industrial automation systems. It is designed to convert fixed-frequency AC voltage into adjustable frequency and voltage, ensuring optimal motor performance and efficiency. The ABB ACS800-104-0105-3+Q967 is built to withstand harsh industrial environments, offering reliable operation and minimal downtime, thus enhancing overall productivity and efficiency in various automation processes.
Core Advantages and Technical Highlights
The ABB ACS800-104-0105-3+Q967 stands out in the market due to its innovative features and robust performance:
High Precision and Dynamic Response: The drive employs advanced vector control technology, ensuring precise speed and torque control. This feature is particularly beneficial in applications requiring high dynamic performance, such as textile machinery and CNC machines.
Energy Efficiency: By optimizing motor speed according to the actual load requirements, the ABB ACS800-104-0105-3+Q967 significantly reduces energy consumption, contributing to lower operational costs and a more sustainable industrial process.
Flexible Integration: The ABB ACS800-104-0105-3+Q967 supports multiple communication protocols, including PROFIBUS, Ethernet/IP, and Modbus TCP, allowing seamless integration with various industrial automation systems and control networks.
Reliability and Durability: With an average mean time between failures (MTBF) exceeding 100,000 hours, the ABB ACS800-104-0105-3+Q967 is designed for long-term, reliable operation in challenging industrial environments. Its IP20 protection rating ensures protection against dust and indirect contact, further enhancing its durability.
Safety Features: The ABB ACS800-104-0105-3+Q967 includes a Safe Torque Off (STO) function, which complies with international safety standards such as EN ISO 14118:2018 and IEC 61800-5-2. This feature ensures safe operation and prevents unexpected startups, providing a secure working environment.

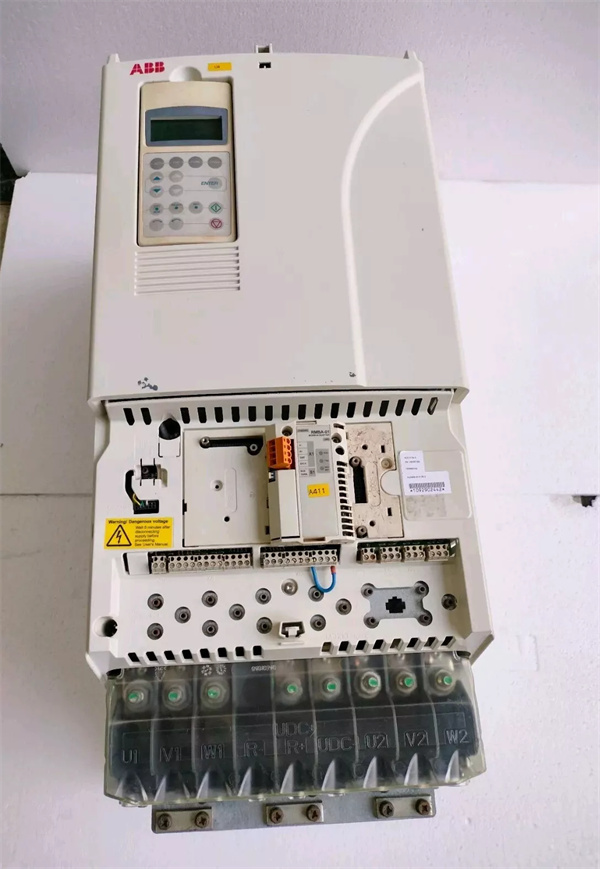

ABB ACS800-104-0105-3+Q967
Typical Application Scenarios
The ABB ACS800-104-0105-3+Q967 is widely used across various industrial sectors due to its versatility and high performance. In the metallurgical industry, it controls heavy-duty machinery such as rolling mills and metal processing equipment, ensuring precise operation and energy efficiency. In the oil and gas sector, it provides reliable control for pumps and compressors, optimizing energy usage and reducing operational costs. For textile manufacturing, the drive enables high-speed and precise control of textile machines, enhancing production efficiency and product quality. Additionally, it is used in water and wastewater treatment plants to manage pumps and fans, contributing to efficient water management. The ABB ACS800-104-0105-3+Q967 is also a preferred choice for packaging and printing industries, where precise speed control is crucial for maintaining product quality and reducing waste.
Related Model Recommendations
-
ABB ACS800-104-0105-3: This model is a close variant of the ABB ACS800-104-0105-3+Q967, without the additional safety features provided by the +Q967 option. It is suitable for applications where high precision and dynamic response are required but additional safety functions are not necessary.
-
ABB ACS800-104-0105-3+Q968: This model offers enhanced communication capabilities and additional safety features compared to the ABB ACS800-104-0105-3+Q967, making it ideal for complex industrial automation systems requiring higher levels of integration and safety.
-
ABB ACS800-104-0105-3+Q969: This upgraded model provides extended functionality, including advanced diagnostics and monitoring capabilities, making it suitable for applications where detailed system monitoring and predictive maintenance are crucial.
-
ABB ACS800-104-0105-3+Q970: This model is designed for applications requiring high power density and compact design. It is an excellent choice for space-constrained installations while maintaining the high performance and reliability of the ACS800 series.
-
ABB ACS800-104-0105-3+Q971: This model offers advanced energy-saving features and is optimized for applications where energy efficiency is a top priority. It is particularly suitable for industries with high energy consumption, such as water treatment and HVAC systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB ACS800-104-0105-3+Q967, ensure that the installation environment meets the specified temperature and humidity requirements (-10°C to 40°C and 5% to 95% RH). Prepare the necessary tools, including a torque wrench for tightening connections and a multimeter for voltage checks. Ensure that the installation area is free from dust and moisture to prevent damage to the drive. Follow the manufacturer’s guidelines for proper grounding and shielding to avoid electromagnetic interference.
Maintenance Suggestions: Regular maintenance is crucial for the long-term performance of the ABB ACS800-104-0105-3+Q967. Perform routine inspections of the drive’s connections and cooling system to ensure proper airflow and prevent overheating. Clean the drive’s surface and ventilation openings regularly to remove dust and debris. Monitor the drive’s performance using diagnostic tools to detect potential issues early. Replace any worn or damaged components promptly to avoid system failures. Keep a stock of essential spare parts, such as fuses and cooling fans, to minimize downtime during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the ABB ACS800-104-0105-3+Q967, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with any technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the drive module, ensuring optimal performance and efficiency in their industrial applications.
