Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AI801 |
| Manufacturer | ABB |
| Product category | Analog Input Module |
| Input Channels | 8 channels |
| Signal Types | 0(4)-20 mA, 0-10 V, 4-20 mA, 2-10 V |
| Resolution | 12-bit |
| Input Impedance | 230-275 kΩ (current input incl. PTC) |
| Over/Under Range | 0%/+15% |
| Maximum Field Cable Length | 600 meters (656 yards) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Dimensions | 86.1 mm (W) x 102 mm (H) x 58.5 mm (D) |
| Weight | 0.24 kg (0.53 lbs) |

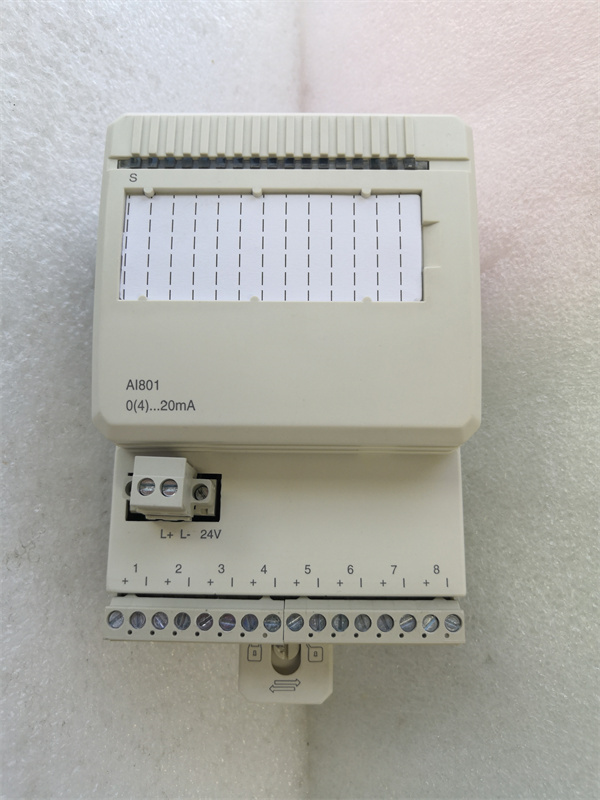

ABB AI801
Product Introduction
The ABB AI801 is a high-precision analog input module designed for industrial automation systems. It is part of the ABB S800 series, offering reliable and accurate data acquisition for various industrial applications. With 8 input channels, the module supports a wide range of signal types, including 0(4)-20 mA, 0-10 V, 4-20 mA, and 2-10 V, making it highly versatile for different measurement requirements. The ABB AI801 features a 12-bit resolution and an update cycle time of 1 ms, ensuring real-time data processing and control. Its robust design and wide operating temperature range make it suitable for demanding industrial environments.
Core Advantages and Technical Highlights
High Precision and Reliability: The ABB AI801 offers high-precision data acquisition with a 12-bit resolution and a maximum error of ±0.1%. It features PTC resistor protection, allowing it to handle short circuits to the transmitter supply without damage.
Fast Data Processing: With an update cycle time of just 1 ms, the module provides real-time data processing capabilities, enabling quick response to process changes.
Flexible Signal Handling: Supporting multiple signal types, including 0(4)-20 mA, 0-10 V, 4-20 mA, and 2-10 V, the ABB AI801 can be easily configured to meet various application requirements.
Robust Design: The module is designed for industrial environments, with an operating temperature range of 0°C to +55°C and a storage temperature range of -40°C to +70°C. Its IP20 protection rating ensures protection against dust and non-condensing moisture.
Easy Integration: The ABB AI801 integrates seamlessly with ABB’s S800 series and other industrial control systems, simplifying setup and maintenance. It also supports HART communication, enhancing its compatibility with various sensors.

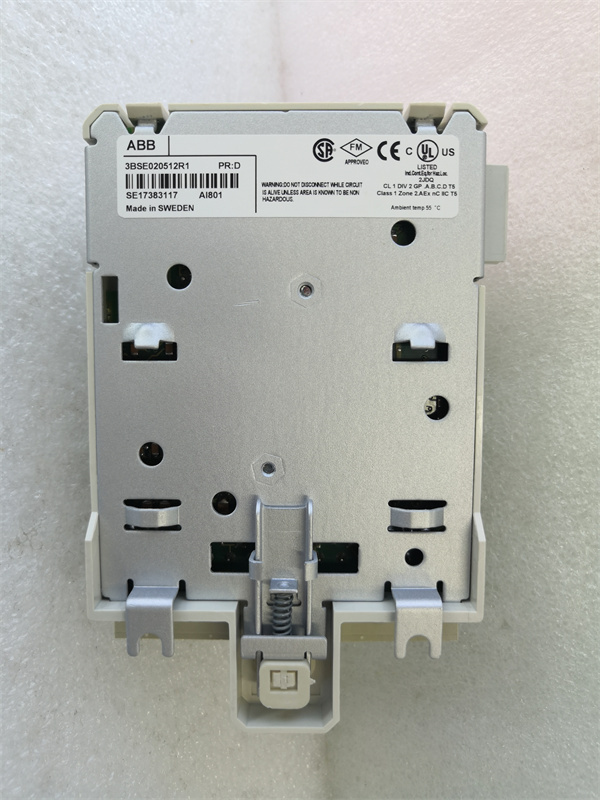

ABB AI801
Typical Application Scenarios
The ABB AI801 is widely used in industries where precise analog signal acquisition is essential. In manufacturing plants, it monitors process variables such as temperature, pressure, and flow rates, enabling efficient process control and optimization. In energy management systems, the module collects data from sensors to monitor and manage energy consumption. It is also used in water treatment plants to monitor water quality parameters and control treatment processes. The ABB AI801 is an ideal solution for applications requiring high precision, fast data processing, and reliable performance.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the ABB AI801 for advanced automation control.
-
ABB AO801: A complementary analog output module for precise control of actuators and valves.
-
ABB DI801: A digital input module that can be used alongside the ABB AI801 to provide a complete I/O solution.
-
ABB AI810: An extended version with additional input signal types, suitable for applications requiring more diverse signal handling.
-
ABB AC500: A versatile PLC platform that can be used in conjunction with the ABB AI801 for comprehensive control systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB AI801, ensure the environment meets the specified temperature and humidity requirements (0°C to +55°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the ABB AI801, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the module, ensuring optimal performance and efficiency in their industrial applications.
