Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AO2020 |
| Manufacturer | ABB |
| Product category | Gas Analyzer System |
| Design Variation | 19″ rack mounted version for controller, display/keypad, power supply, and one analyzer module |
| Dimensions | 483 mm (W) x 412(597) mm (D) x 177 mm (H) |
| Housing Protection | IP 20 (with connection box: IP 54) |
| Power Supply | 100-240 VAC, 2.2 A max |
| Communication Protocols | Modbus TCP/IP, RS-232, Ethernet (10/100Base-T) |
| Operating Temperature | -20°C to +55°C |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Weight | Not specified in the provided data |

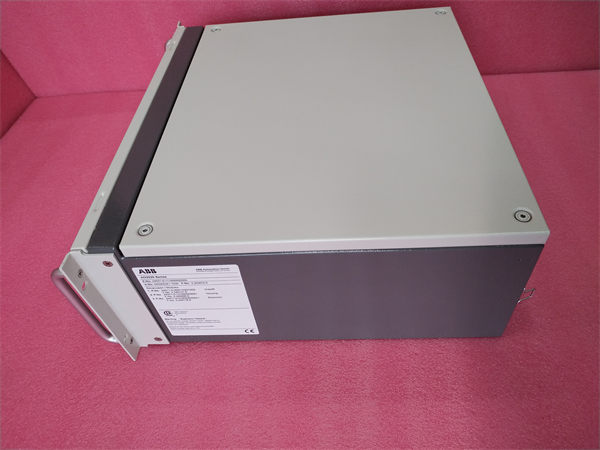

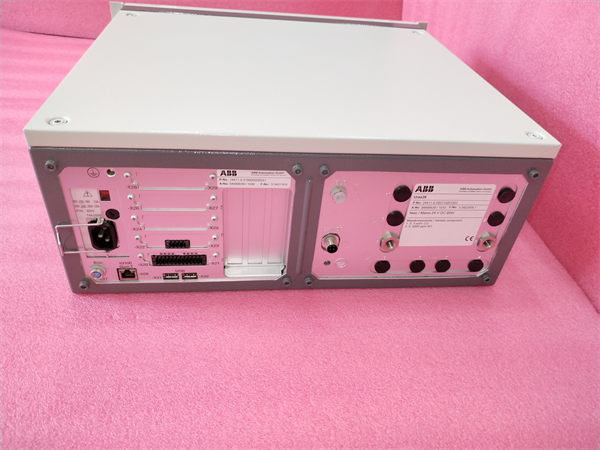

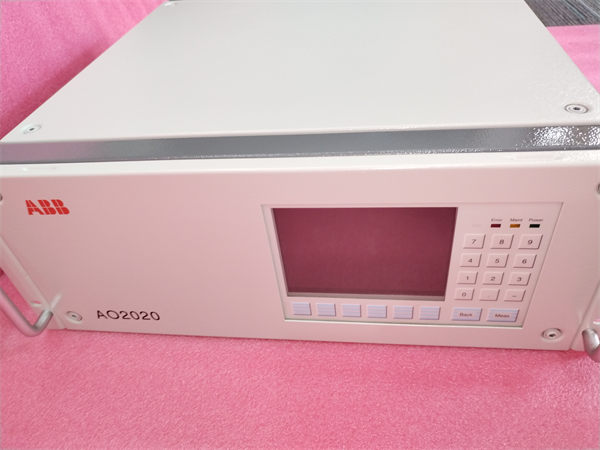

ABB AO2020
Product Introduction
The ABB AO2020 is a high-performance continuous gas analyzer system designed for industrial process and emissions monitoring applications. It is part of the ABB Advance Optima AO2000 Series, offering a modular design that can be configured with various analyzer modules to meet specific measurement requirements. The AO2020 features a 19″ rack-mounted housing suitable for mounting in control rooms or laboratories. It supports multiple communication protocols, including Modbus TCP/IP and RS-232, facilitating seamless integration into existing automation systems.
Core Advantages and Technical Highlights
Modular Design: The ABB AO2020 is designed with a modular approach, allowing users to configure the system with different analyzer modules for various measurement principles. This flexibility makes it suitable for a wide range of applications, from process monitoring to emissions control.
Advanced Communication: Supporting multiple communication protocols, the AO2020 can be easily integrated into existing industrial control systems. Its Ethernet capability allows for remote monitoring and control, enhancing operational efficiency.
User-Friendly Interface: The system features a menu-driven operator interface with clear-text status messages, making it easy to use and maintain. The large graphics panel provides simultaneous digital and analog display of measured values, ensuring real-time visibility of process conditions.
Safety and Reliability: The AO2020 includes a “Safety Concept” for measuring flammable gases in Zone 2 and corrosive/toxic gases, ensuring safe operation in hazardous environments. Its self-monitoring function indicates when maintenance is required, reducing downtime and maintenance costs.

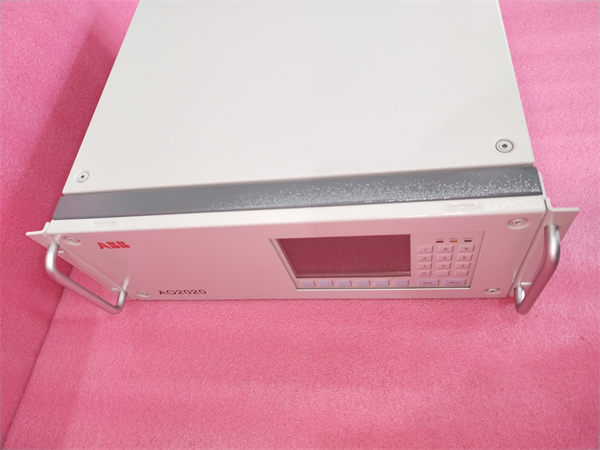

ABB AO2020
Typical Application Scenarios
The ABB AO2020 is widely used in industries where continuous gas monitoring is essential. In power generation plants, it measures flue gas emissions to ensure compliance with environmental regulations. In chemical processing facilities, the AO2020 monitors process gases in real-time, enhancing process control and safety. It is also used in water treatment plants to monitor gas levels in wastewater treatment processes.
Related Model Recommendations
-
ABB AO2040: A wall-mounted version of the AO2000 series, offering additional housing options for external analyzer modules.
-
ABB Uras26: A gas analyzer module that can be integrated with the AO2020 for specific gas measurement applications.
-
ABB Magnos206: Another analyzer module suitable for integration with the AO2020 for measuring specific gas components.
-
ABB Caldos25: A gas analyzer module designed for integration with the AO2020 for specific measurement needs.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB AO2020, ensure the environment meets the specified temperature and humidity requirements (-20°C to +55°C, 0% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for 19″ rack mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the system with a damp cloth to prevent contamination. Use ABB’s dedicated software for system configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the ABB AO2020, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the analyzer system, ensuring optimal performance and efficiency in their industrial applications.
