Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AO810V2 |
| Manufacturer | ABB |
| Product category | Analog Output Module |
| Output Channels | 8 channels |
| Signal Types | 0(4)-20 mA |
| Resolution | 14-bit |
| Load Resistance | Max 850 Ω (short-circuit-proof) |
| Isolation | Group-wise isolation, rated 50 V |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP30 |
| Dimensions | 45 mm (W) x 119 mm (H) x 102 mm (D) |
| Weight | 0.2 kg |
| Communication | Compatible with ABB S800 I/O system, supports Modbus TCP/IP and RS-485 |

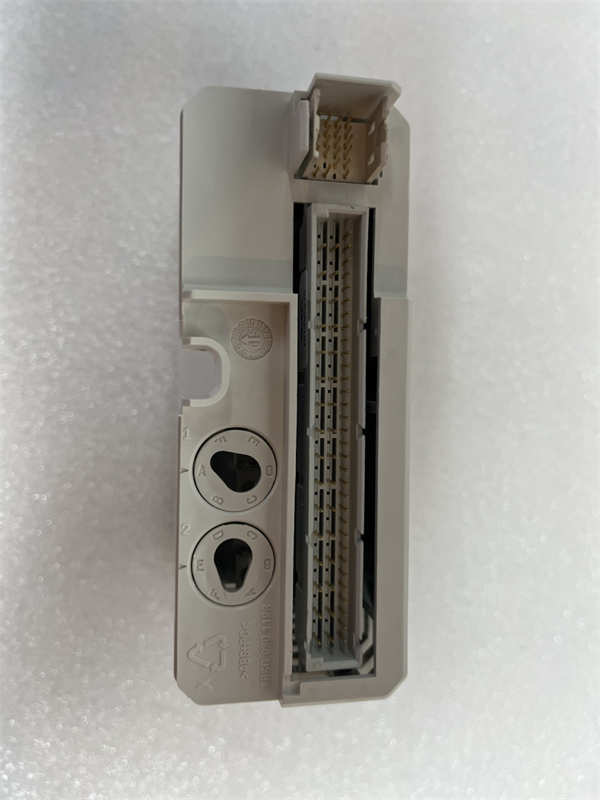

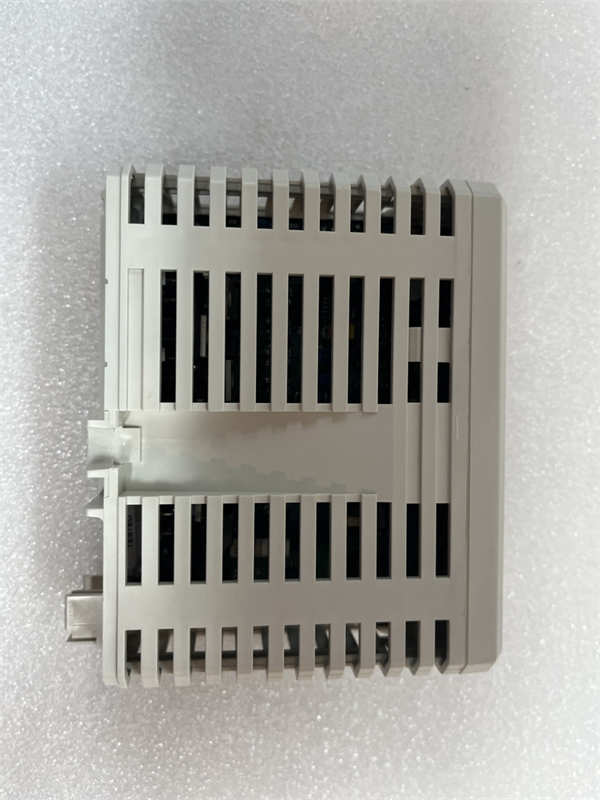

ABB AO810V2
Product Introduction
The ABB AO810V2 is a high-precision analog output module designed for industrial automation systems. It is part of the ABB S800 I/O series and is compatible with various ABB and third-party controllers. The module features 8 output channels that can be configured for 0(4)-20 mA signals, providing high-resolution and precise control for a variety of applications. The AO810V2 is designed for reliable performance in demanding industrial environments, with a wide operating temperature range and robust protection against electromagnetic interference.
Core Advantages and Technical Highlights
High Precision and Reliability: The ABB AO810V2 offers high-precision analog output with a 14-bit resolution, ensuring accurate signal transmission. It supports short-circuit protection and intra-group isolation, enhancing system reliability.
Advanced Communication: The module supports Modbus TCP/IP and RS-485 communication protocols, facilitating seamless integration into existing automation systems. It can be easily configured and monitored using ABB’s dedicated software.
Robust Design: The AO810V2 is designed to operate reliably within a wide temperature range of -20°C to +60°C and offers IP30 protection against dust and non-condensing moisture.
Self-Diagnostics: The module performs self-diagnostic checks cyclically, ensuring continuous monitoring of its operational status and providing early detection of potential issues.
Flexible Configuration: Each channel can be independently configured for different signal types and ranges, providing flexibility for various industrial applications.

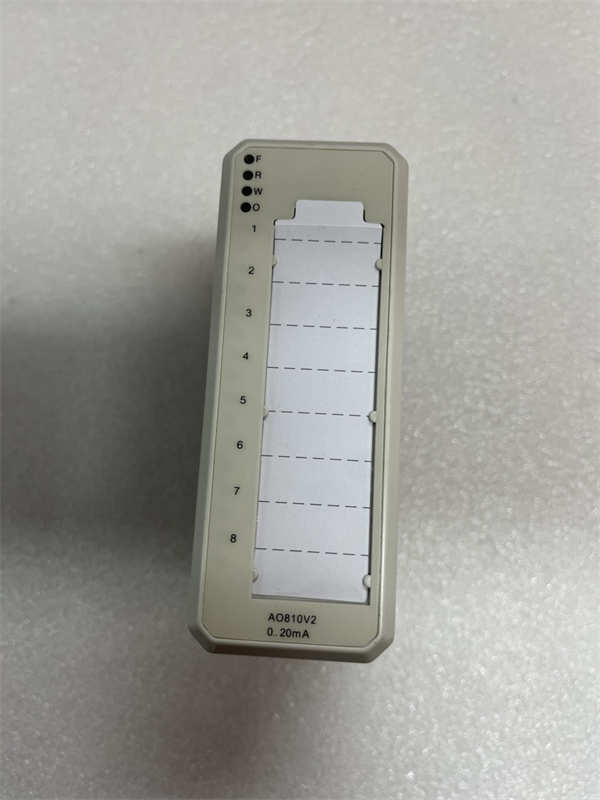

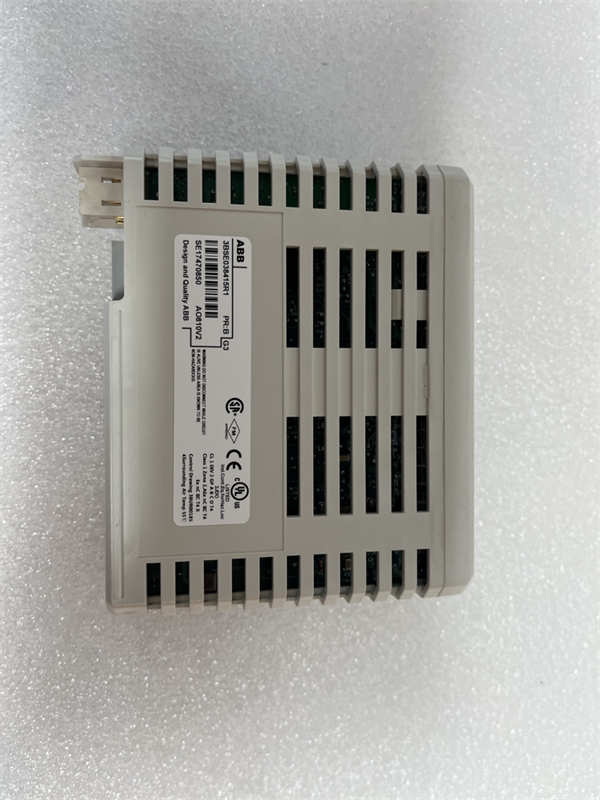

ABB AO810V2
Typical Application Scenarios
The ABB AO810V2 is widely used in industries where precise control and monitoring are essential. In manufacturing plants, it controls actuators and valves, ensuring efficient process control. In power generation facilities, the AO810V2 monitors and controls equipment, optimizing performance and reliability. It is also used in water treatment plants to control pumps and valves, ensuring optimal water management.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the ABB AO810V2 for advanced automation control.
-
ABB AI810: A complementary analog input module for precise data acquisition.
-
ABB DI810: A digital input module that can be used alongside the ABB AO810V2 to provide a complete I/O solution.
-
ABB AC500: A versatile PLC platform that can be used in conjunction with the ABB AO810V2 for comprehensive control systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB AO810V2, ensure the environment meets the specified temperature and humidity requirements (-20°C to +60°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
