Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CI502-PNIO |
| Manufacturer | ABB |
| Product category | Communication Interface Module |
| Communication Protocol | PROFINET IO |
| Digital Inputs | 8 channels (24V DC) |
| Digital Outputs | 8 channels (24V DC, 0.5A) |
| Configurable I/O | 8 channels (24V DC, 0.5A) |
| Ethernet Interface | 2x RJ45 (100 Base-TX), integrated switch |
| Supported Protocols | RTC, RTA, DCP, CL-RPC, LLDP, MRP |
| Min. Bus Cycle | 1 ms |
| Protection Rating | IP20 |
| Dimensions | 67.5 mm (W) x 76 mm (H) x 62 mm (D) |
| Weight | 0.133 kg |
| Operating Temperature | 0°C to 50°C |
| Humidity Range | 5% to 95% RH (non-condensing) |

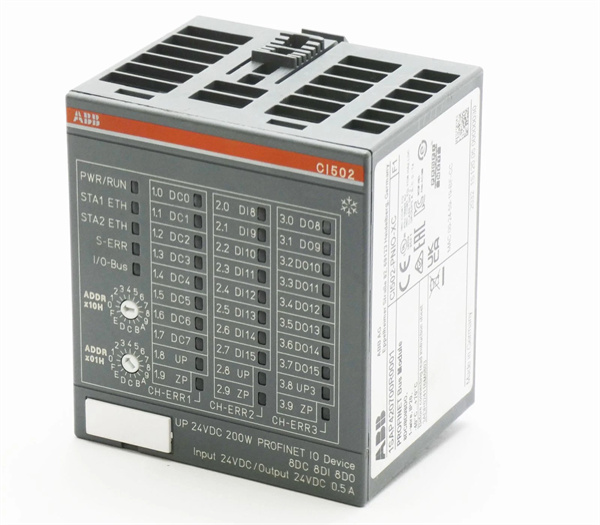

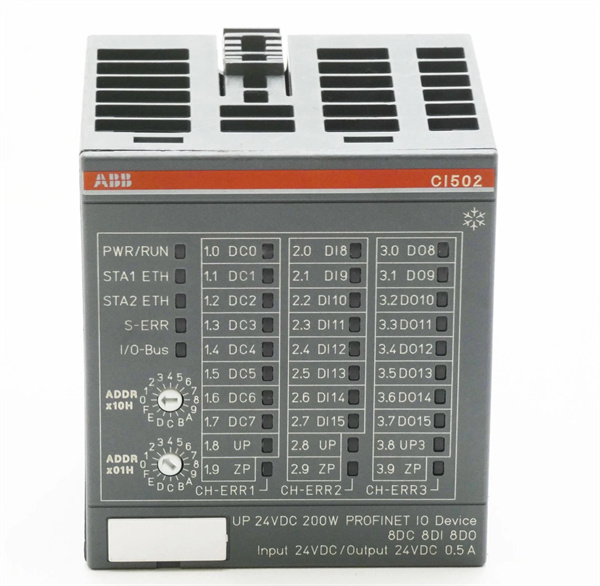

ABB CI502-PNIO
Product Introduction
The ABB CI502-PNIO is a PROFINET communication interface module designed for ABB’s AC500 and AC500-S Programmable Logic Controllers (PLCs). It acts as a distributed I/O device, providing a robust and flexible solution for industrial automation systems. This module features 8 digital inputs, 8 digital outputs, and 8 configurable digital I/O channels, all with 24V DC voltage and 0.5A current capacity. It also includes two RJ45 Ethernet interfaces with an integrated switch, supporting real-time cyclic (RTC) and acyclic (RTA) communication protocols.
Core Advantages and Technical Highlights
Advanced Communication Capabilities: The CI502-PNIO supports multiple PROFINET protocols, including RTC, RTA, DCP, CL-RPC, LLDP, and MRP, ensuring seamless integration with various automation systems. It also features an integrated Ethernet switch, eliminating the need for additional hardware.
High Flexibility and Expandability: With 8 configurable digital I/O channels, the CI502-PNIO offers high flexibility for adapting to different application requirements. It can be expanded with up to 10 S500 I/O modules, providing extensive I/O capabilities.
Robust Design and Protection: The module is designed for industrial environments, featuring IP20 protection and a wide operating temperature range of 0°C to 50°C. It also includes protection against short circuits, reverse supply voltage, overvoltage, and reverse polarity.
User-Friendly Configuration: The CI502-PNIO can be easily configured using ABB’s Control Builder Plus software, allowing users to set up the module’s IP address, station name, and other parameters. It also features two rotary switches for setting the device identifier.

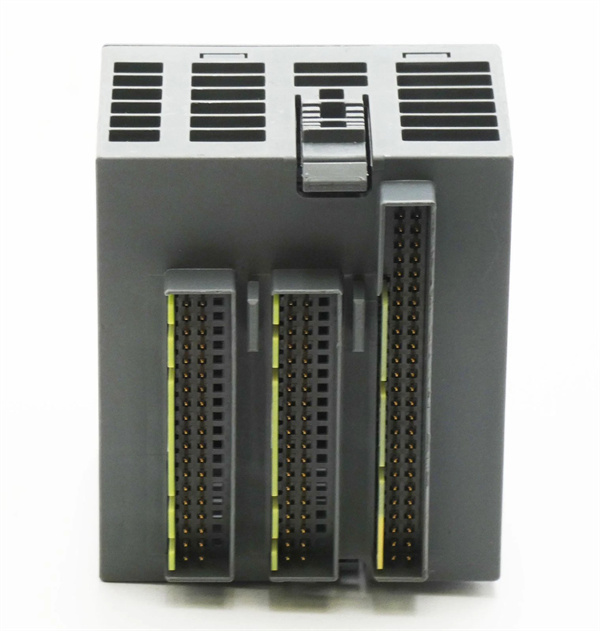

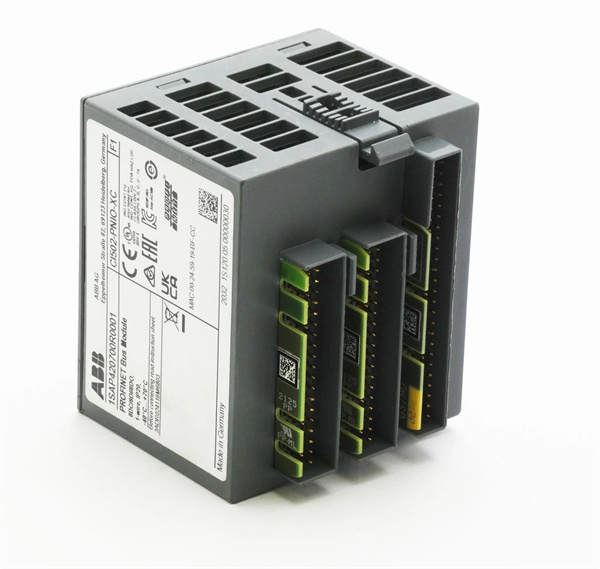

ABB CI502-PNIO
Typical Application Scenarios
The ABB CI502-PNIO is widely used in various industrial sectors where reliable communication and control are essential:
-
Manufacturing Plants: Used in production lines for real-time control and monitoring of machines and processes.
-
Power Generation Facilities: Employed in power plants for monitoring and control of electrical systems.
-
Water and Wastewater Treatment Plants: Used for controlling pumps and valves in water treatment processes.
-
Automotive Manufacturing: Applied in robotic systems and assembly lines for precise motion control.
Related Model Recommendations
-
ABB AC500 PLC: A versatile PLC that integrates seamlessly with the CI502-PNIO for comprehensive automation control.
-
ABB CM579-PNIO: A PROFINET IO master module that can be paired with the CI502-PNIO for advanced communication capabilities.
-
ABB AI810: An analog input module for precise data acquisition, suitable for monitoring drive systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (0°C to 50°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the CI502-PNIO, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
