Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CI522A 3BSE018283R1 |
| Manufacturer | ABB |
| Product category | Communication Interface Module |
| Module Type | AF100 Interface Module |
| Communication Protocol | Modbus RTU, CANopen |
| Operating Voltage | 24 VDC |
| Input Current | Max 10 mA per channel |
| Number of Channels | 8 analog input channels |
| Data Transfer Rate | Up to 1 Mbps |
| Dimensions (W x H x D) | 120 mm x 27 mm x 265 mm |
| Weight | 0.2 kg |
| Operating Temperature Range | -20°C to +55°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Compliance | Exempt from RoHS Directive 2011/65/EU under Article 2(4)(c), (e), (f), and (j) |

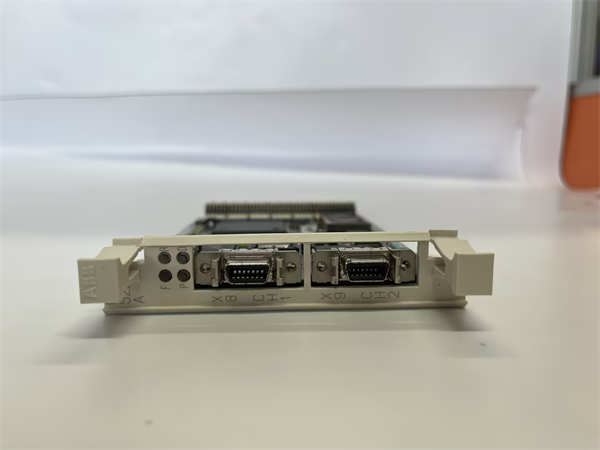

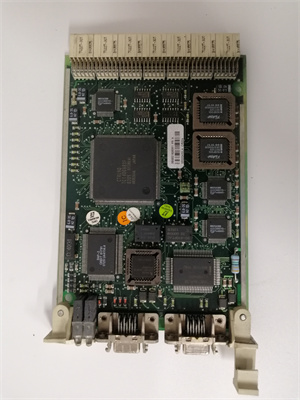

ABB CI522A 3BSE018283R1
Product Introduction
The ABB CI522A 3BSE018283R1 is a high-performance AF100 interface module designed for redundant communication with S800 I/O systems. It is part of the ABB Advant Master Process Control System and is used to ensure high system availability in industrial automation applications.
Core Advantages and Technical Highlights
Redundant Communication: The CI522A 3BSE018283R1 enables redundant communication, ensuring high system availability and reliability in critical industrial applications.
Multiple Communication Protocols: Supports Modbus RTU and CANopen protocols, facilitating seamless integration with various control systems and devices.
Compact Design: With dimensions of 120 mm x 27 mm x 265 mm and a weight of 0.2 kg, the module is designed for space-constrained installations.
Robust Construction: The module is built to withstand harsh industrial environments, operating efficiently within a temperature range of -20°C to +55°C.
Advanced Diagnostics: Features real-time monitoring and advanced diagnostics to help maintenance teams identify potential issues promptly, minimizing downtime.

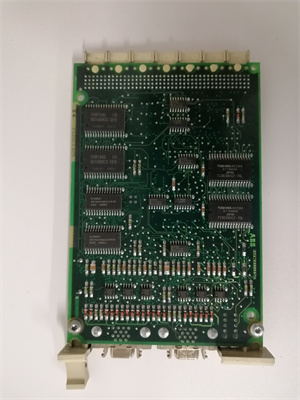

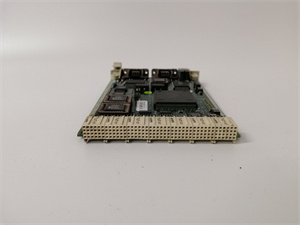

ABB CI522A 3BSE018283R1
Typical Application Scenarios
The ABB CI522A 3BSE018283R1 is widely used in various industrial sectors:
-
Manufacturing Plants: For real-time control and monitoring of production lines.
-
Power Generation Facilities: To monitor and control power plants and substations.
-
Process Control: In chemical, oil, and gas industries for process monitoring and regulation.
-
Building Automation: For lighting, HVAC systems, and other automation equipment in large buildings.
-
Water Treatment Plants: To monitor and control water treatment processes.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the CI522A for advanced automation control.
-
ABB AI810: An analog input module for precise data acquisition, suitable for monitoring drive systems.
-
ABB DI810: A digital input module that can be used alongside the CI522A to provide a complete I/O solution.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-20°C to +55°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for panel mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the CI522A 3BSE018283R1, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
