Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CI857K01 |
| Manufacturer | ABB |
| Product category | Communication Interface Module |
| Communication Protocol | Ethernet/IP, Modbus/TCP, PROFINET IO, TCP/IP, UDP, HTTP, SNMP, FTP, SMTP, DNS, DHCP |
| Data Transfer Rate | Up to 100 Mbps |
| Operating Voltage | 24V DC |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 59 mm x 185 mm x 127.5 mm |
| Weight | 0.7 kg |
| Installation Method | DIN rail installation |
| Redundancy Support | Yes (line redundancy) |
| Hot Swappable | Yes |
| Interface Type | RJ45 Ethernet connector |

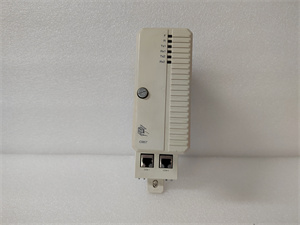

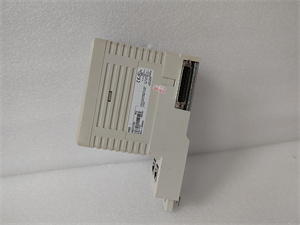

CI857K01
Product Introduction
The ABB CI857K01 is a high-performance communication interface module designed for industrial automation systems. It is part of the ABB INSUM series and is used to facilitate seamless communication between control systems and field devices. The CI857K01 supports a wide range of communication protocols, including Ethernet/IP, Modbus/TCP, PROFINET IO, and standard TCP/IP protocols, ensuring compatibility with various industrial automation systems.
Core Advantages and Technical Highlights
Advanced Communication Capabilities: The CI857K01 supports multiple communication protocols, making it highly versatile for various industrial applications. It features high-speed data transfer rates up to 100 Mbps, ensuring fast and reliable communication.
Robust Design: Built for industrial environments, the CI857K01 operates efficiently within a wide temperature range of -25°C to +70°C and offers IP20 protection. It is designed with high-quality materials to withstand harsh conditions, ensuring long-term performance and minimizing maintenance requirements.
User-Friendly Configuration: The CI857K01 features built-in diagnostic tools and a user-friendly interface, simplifying maintenance and troubleshooting. It also supports various programming languages, including ladder logic and structured text.
Compact Size: With dimensions of 59 mm x 185 mm x 127.5 mm and a weight of 0.7 kg, the CI857K01 is compact and easy to integrate into existing systems.

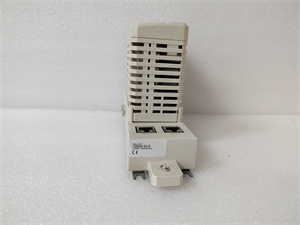

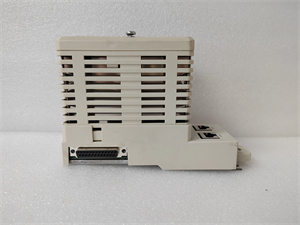

CI857K01
Typical Application Scenarios
The ABB CI857K01 is widely used in various industrial sectors:
-
Manufacturing Plants: For real-time control and monitoring of production lines.
-
Power Generation Facilities: To monitor and control power plants and substations.
-
Process Control: In chemical, oil, and gas industries for process monitoring and regulation.
-
Water Treatment Plants: For controlling pumps and valves in water treatment processes.
-
Building Automation: For lighting, HVAC systems, and other automation equipment in large buildings.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the CI857K01 for advanced automation control.
-
ABB AI810: An analog input module for precise data acquisition, suitable for monitoring drive systems.
-
ABB DI810: A digital input module that can be used alongside the CI857K01 to provide a complete I/O solution.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-25°C to +70°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the CI857K01, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
