Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CI860K01 3BSE032444R1 |
| Manufacturer | ABB |
| Product category | Communication Interface Module |
| Communication Protocol | FOUNDATION Fieldbus HSE |
| Data Transfer Rate | 100 kbit/s to 1000 kbit/s |
| Operating Voltage | 24V DC (18-56V DC range) |
| Operating Temperature | -10°C to +50°C |
| Humidity Range | 20% to 95% RH |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 59 mm x 186 mm x 127.5 mm |
| Weight | 0.55 kg |
| Installation Method | DIN rail installation |
| Redundancy Support | Yes (up to 12 CI860 modules per AC800M) |
| Hot Swappable | Yes |
| Interface Type | RJ-45 female (8-pin) connector |

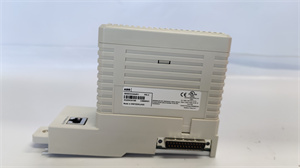

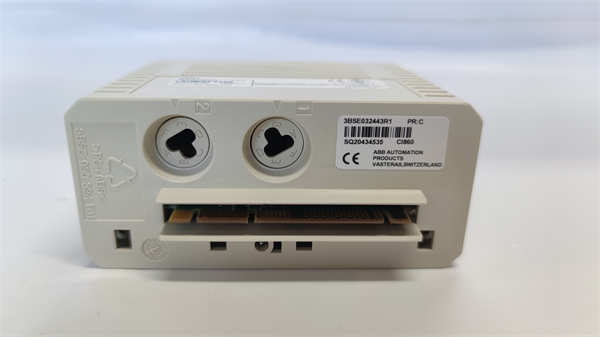

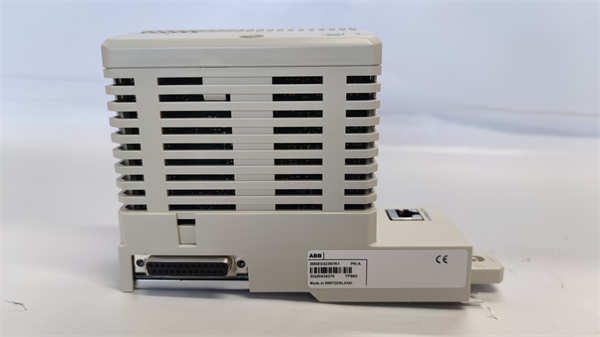

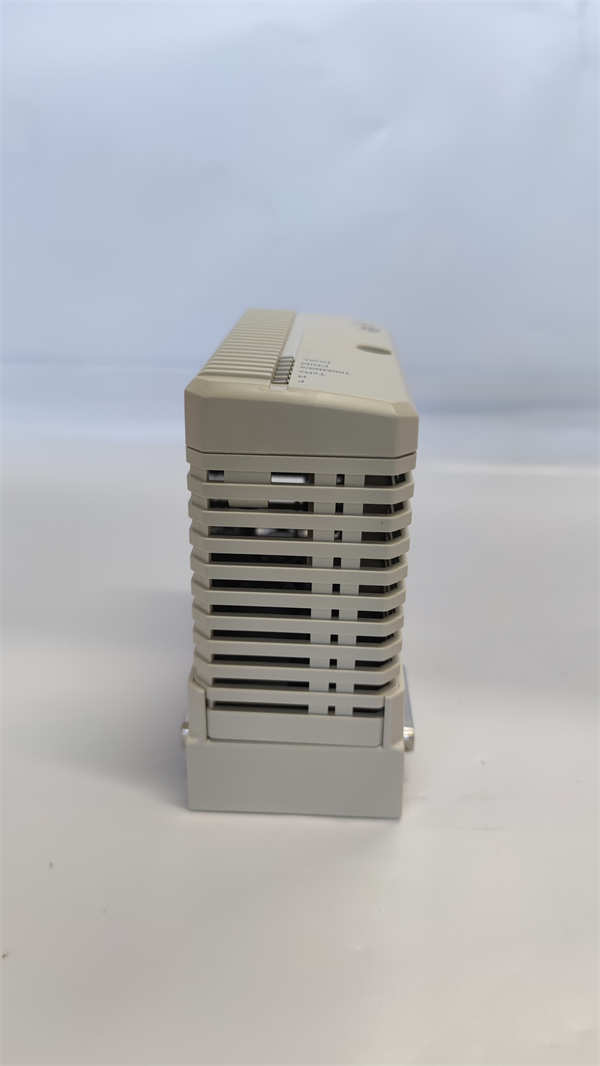

CI860K01 3BSE032444R1
Product Introduction
The ABB CI860K01 3BSE032444R1 is a high-speed Ethernet (HSE) communication interface module designed for industrial automation systems. It is part of the ABB AC 800M series and is used to facilitate seamless communication between control systems and field devices. The CI860K01 supports the FOUNDATION Fieldbus HSE protocol, ensuring compatibility with a wide range of industrial automation systems.
Core Advantages and Technical Highlights
Advanced Communication Capabilities: The CI860K01 supports FOUNDATION Fieldbus HSE, enabling high-speed data transfer rates up to 1000 kbit/s. This makes it ideal for connecting remote I/Os, drives, and other field devices.
Redundant Design: The module supports redundancy, enhancing system reliability and availability. It can be configured in a 1+1 setup, ensuring seamless switching between primary and backup modules.
Robust Design: Built for industrial environments, the CI860K01 operates efficiently within a wide temperature range of -10°C to +50°C and offers IP20 protection. It is designed with high-quality materials to withstand harsh conditions, ensuring long-term performance and minimizing maintenance requirements.
User-Friendly Configuration: The CI860K01 features built-in diagnostic tools and a user-friendly interface, simplifying maintenance and troubleshooting. It also supports various programming languages, including ladder logic and structured text.
Compact Size: With dimensions of 59 mm x 186 mm x 127.5 mm and a weight of 0.55 kg, the CI860K01 is compact and easy to integrate into existing systems.
CI860K01 3BSE032444R1
Typical Application Scenarios
The ABB CI860K01 3BSE032444R1 is widely used in various industrial sectors:
-
Manufacturing Plants: For real-time control and monitoring of production lines.
-
Power Generation Facilities: To monitor and control power plants and substations.
-
Process Control: In chemical, oil, and gas industries for process monitoring and regulation.
-
Water Treatment Plants: For controlling pumps and valves in water treatment processes.
-
Building Automation: For lighting, HVAC systems, and other automation equipment in large buildings.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the CI860K01 for advanced automation control.
-
ABB AI810: An analog input module for precise data acquisition, suitable for monitoring drive systems.
-
ABB DI810: A digital input module that can be used alongside the CI860K01 to provide a complete I/O solution.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-10°C to +50°C, 20% to 95% RH). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the CI860K01 3BSE032444R1, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
