Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CMA120 |
| Manufacturer | ABB |
| Product category | Basic Controller Panel Unit |
| Power supply voltage | 24V DC or 48V DC |
| Input range | 0-10V, 4-20mA, PT100 (2 or 3 wire) |
| Accuracy | ±0.1% FS (Full Scale) |
| Operating temperature | -20°C to +60°C or -40°C to +85°C (depending on model) |
| Protection class | IP65 or IP67 |
| Dimensions | 220 mm x 150 mm x 100 mm |
| Weight | 2.5 kg |
| Communication protocols | Profibus DP, Modbus RTU, Ethernet TCP/IP |
| Installation method | Panel mount |

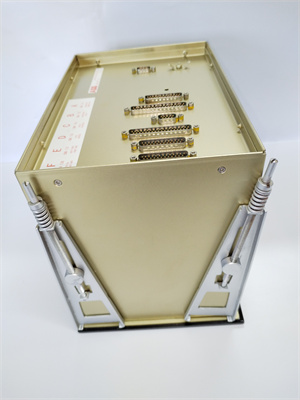

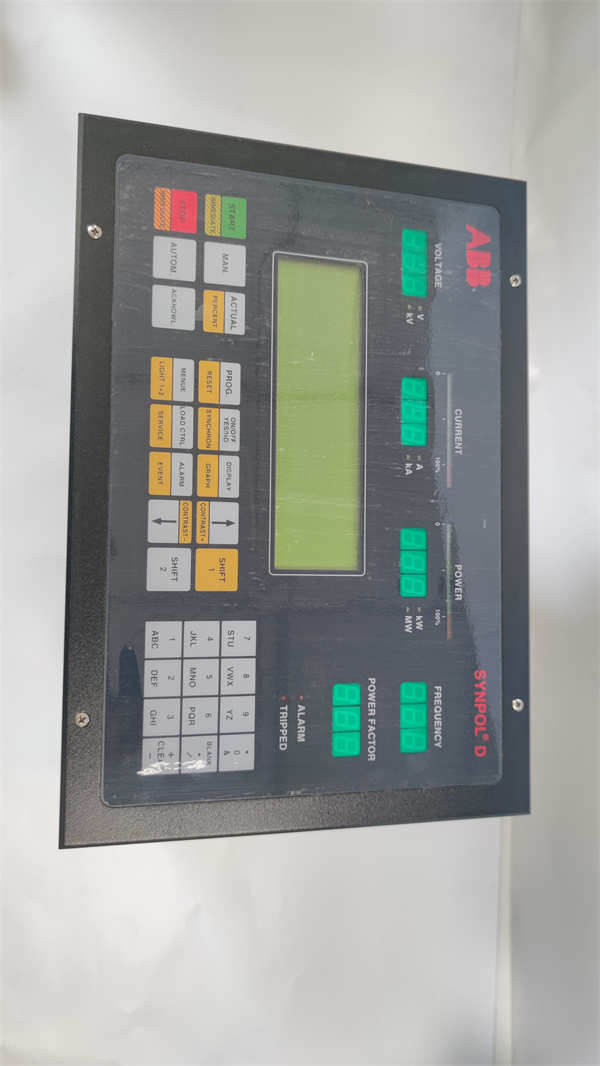

ABB CMA120
Product Introduction
The ABB CMA120 is a versatile basic controller panel unit designed for a wide range of industrial automation applications. It is part of ABB’s Synpol D control system series and serves as a fundamental component for human-machine interaction, data acquisition, control output, and alarm management. This panel unit is designed with a modular approach, allowing for flexible configuration and easy integration into various automation systems. Its intuitive user interface and industrial-grade components ensure high reliability and stability, making it suitable for harsh industrial environments.
Core Advantages and Technical Highlights
The ABB CMA120 offers several key advantages that make it a standout choice for industrial control applications.
High Reliability and Durability: The ABB CMA120 is built with industrial-grade components and features a high level of redundancy and fault tolerance. This ensures continuous and reliable operation in critical process automation systems. Its wide operating temperature range and high protection class (IP65/IP67) make it suitable for both indoor and outdoor applications.
Flexible Configuration: The ABB CMA120 supports multiple input and output configurations, including 8 digital inputs, 4 analog inputs, and 2 relay outputs. It also supports various communication protocols such as Profibus DP, Modbus RTU, and Ethernet TCP/IP, ensuring seamless integration with different automation systems.
User-Friendly Interface: The ABB CMA120 provides an intuitive user interface with a clear display and easy-to-use controls. This makes it simple for operators to monitor and manage processes, reducing training time and increasing efficiency.
Advanced Diagnostics: The panel unit features LED diagnostics that provide quick fault identification, reducing downtime and maintenance costs. This ensures that any issues can be resolved promptly, maintaining system performance.

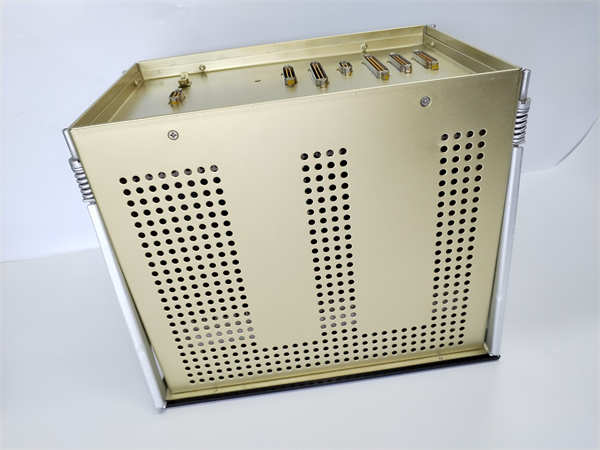

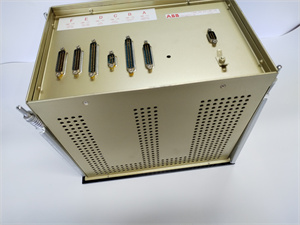

ABB CMA120
Typical Application Scenarios
The ABB CMA120 is widely used across various industrial sectors due to its versatility and reliability. In the power generation industry, it is used for controlling boilers, turbines, and generators. In the oil and gas sector, it plays a crucial role in managing production, processing, and transportation processes. The ABB CMA120 is also employed in chemical processing plants for controlling reactors and distillation towers. Additionally, it is used in water and wastewater treatment facilities for automated control and monitoring.
Related Model Recommendations
-
ABB CMA120-3DDE300400: A specific variant of the ABB CMA120 with enhanced I/O capabilities and communication options.
-
ABB AC800F: A controller series that works seamlessly with the ABB CMA120, providing a comprehensive automation solution.
-
ABB PM595-4ETH: An Ethernet communication module that can be used alongside the ABB CMA120 for additional connectivity options.
-
ABB TB5xx: Terminal bases that are compatible with the ABB CMA120, providing a complete solution for connecting various I/O devices.
-
ABB CM579-PNIO: Another communication module from ABB, offering PROFINET IO capabilities that can complement the ABB CMA120 in complex automation systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB CMA120, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C or -40°C to +85°C (depending on the model). The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard panel mount for secure installation and follow the manufacturer’s guidelines to avoid damage to the device.
Maintenance Suggestions
To maintain the ABB CMA120, perform regular inspections of the panel unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features. By following these maintenance tips, you can ensure the long-term reliability and optimal performance of the ABB CMA120.
Service and Guarantee Commitment
The ABB CMA120 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability. This commitment ensures that customers receive reliable and efficient support throughout the product’s lifecycle, giving them confidence in their investment.
