Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CMA126 |
| Manufacturer | ABB |
| Product category | Industrial Interface Card |
| Part Number | 3DDE 300 406 |
| Operating Voltage | 24 VDC |
| Power Consumption | 5 W |
| Communication Protocols | RS485, Ethernet, Modbus RTU, Profibus |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 120 mm x 80 mm x 60 mm |
| Weight | 1.5 kg |
| Protection Class | IP20 |
| Certification | CE, RoHS |

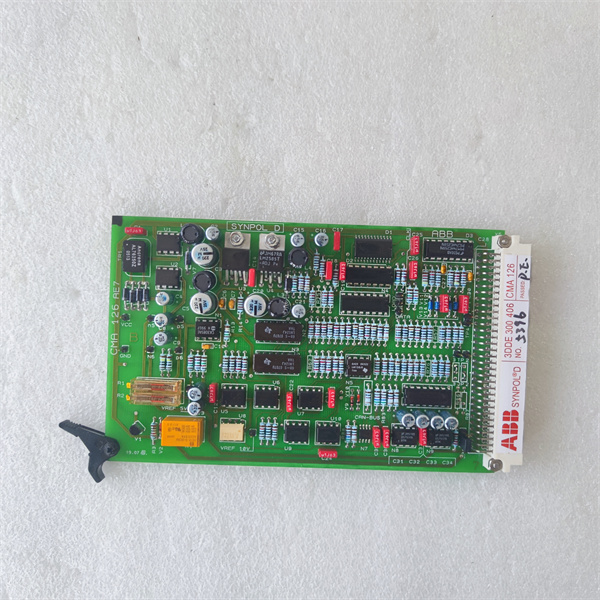

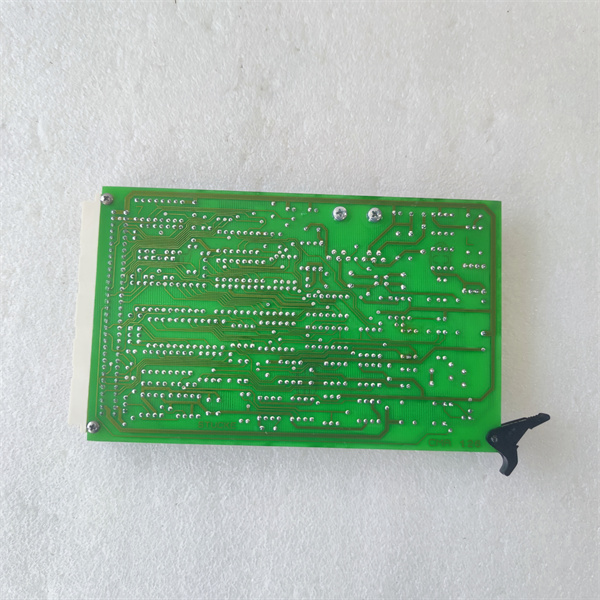

ABB CMA126
Product Introduction
The ABB CMA126 is a high-performance interface card designed for seamless integration into ABB’s Synpol D industrial control systems. It serves as a critical component for data communication and control, enhancing the overall efficiency and reliability of automation processes. The module supports multiple communication protocols, including RS485, Ethernet, Modbus RTU, and Profibus, ensuring versatile connectivity options for various industrial applications. With its compact design and robust construction, the ABB CMA126 is suitable for both indoor and outdoor use, even in harsh industrial environments.
Core Advantages and Technical Highlights
The ABB CMA126 offers several key advantages that make it a standout choice for industrial automation.
High Performance and Reliability: Equipped with advanced microprocessors and algorithms, the ABB CMA126 ensures high-speed, accurate control and data processing. Its redundant design, such as 1B1 redundancy for critical components like the CPU and memory, guarantees stable system operation.
Versatile Communication Capabilities: The module supports a wide range of communication protocols, including Modbus RTU, Profibus, and Ethernet, making it compatible with various industrial networks and devices. This flexibility allows for seamless integration into existing systems and future expansions.
Compact and Durable Design: The ABB CMA126 features a compact size (120 mm x 80 mm x 60 mm) and lightweight construction (1.5 kg), making it easy to install and integrate into control panels without compromising space. Its IP20 protection class ensures durability and long service life in harsh industrial conditions.
User-Friendly Interface: The module provides an intuitive programming interface and software support, simplifying setup, configuration, and maintenance processes. This reduces downtime and minimizes the risk of errors during installation or troubleshooting.
Advanced Diagnostics: The ABB CMA126 includes diagnostic features that provide real-time status monitoring and quick fault identification, reducing maintenance costs and improving system reliability.

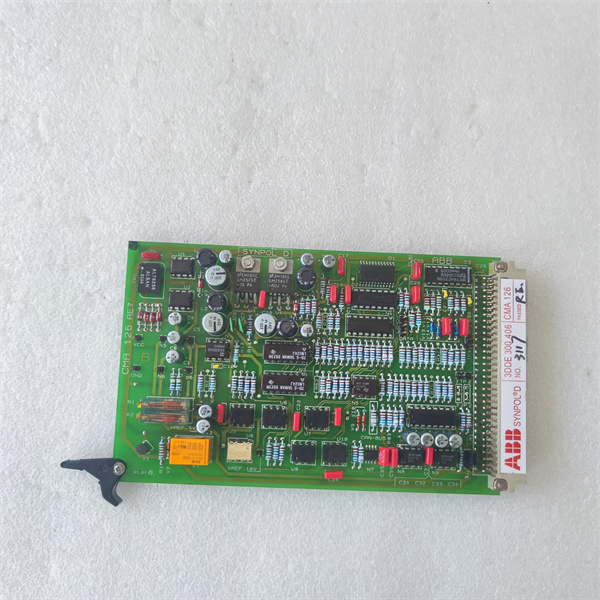

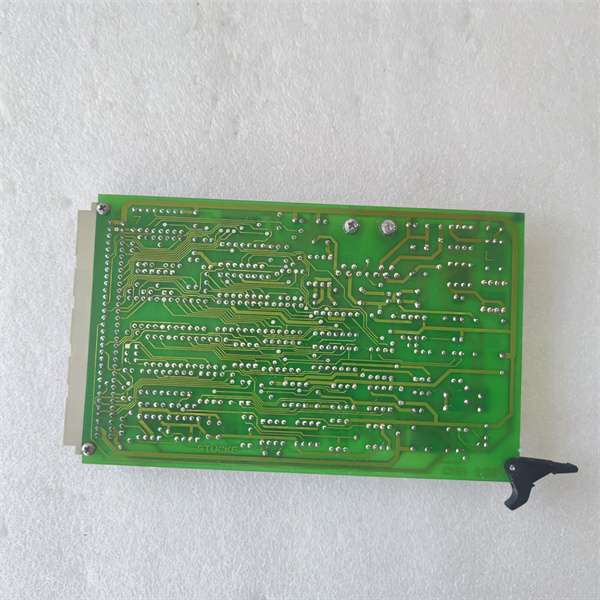

ABB CMA126
Typical Application Scenarios
The ABB CMA126 is widely used across various industrial sectors, including power plants, chemical plants, water treatment facilities, and manufacturing lines. In power generation, it is employed for controlling and monitoring turbines and generators. In chemical processing, it manages reactors and distillation towers, ensuring precise control and data acquisition. The module’s ability to operate in a wide temperature range and its compact design make it suitable for both indoor and outdoor applications, such as in oil and gas refineries.
Related Model Recommendations
-
ABB CMA120: A basic controller panel unit, suitable for simpler applications.
-
ABB CMA130: An advanced controller with more features and capabilities, ideal for complex automation tasks.
-
ABB CM579-PNIO: A PROFINET IO communication module that can be used alongside the ABB CMA126 for enhanced connectivity.
-
ABB AC800F: A controller series that works seamlessly with the ABB CMA126, providing a comprehensive automation solution.
-
ABB PM595-4ETH: An Ethernet communication module that can be used for additional connectivity options.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB CMA126, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +70°C and storage temperature range of -40°C to +85°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail for mounting the module, ensuring it is securely fastened.
Maintenance Suggestions
To maintain the ABB CMA126, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features. By following these maintenance tips, you can ensure the long-term reliability and optimal performance of the ABB CMA126.
Service and Guarantee Commitment
The ABB CMA126 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability. This commitment ensures that customers receive reliable and efficient support throughout the product’s lifecycle, giving them confidence in their investment.
