Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CP435T 1SBP260193R1001 |
| Manufacturer | ABB |
| Product category | Industrial HMI Touchscreen Control Panel |
| Display size | 7 inches |
| Display resolution | 800 x 480 pixels |
| Display type | TFT LCD, 64K colors |
| Touchscreen type | Resistive or Capacitive |
| Communication protocols | RS-232/RS-485, Ethernet, CANopen, Modbus RTU/TCP, Profibus DP |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Power supply | 24V DC |
| Power consumption | 20W |
| Dimensions | 231 mm x 176 mm x 47 mm |
| Weight | 0.86 kg |
| Protection class | IP65 |
| Series | ABB CP400 Series |

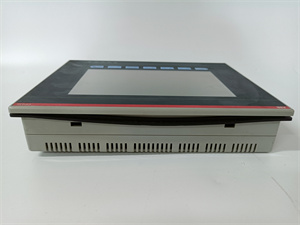

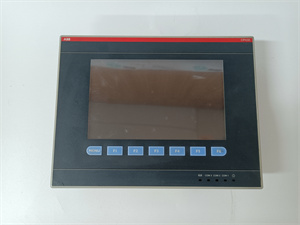

ABB CP435T 1SBP260193R1001
Product Introduction
The ABB CP435T 1SBP260193R1001 is a high-performance 7-inch color TFT touchscreen control panel designed for industrial automation applications. It serves as a human-machine interface (HMI) device, providing an intuitive and user-friendly interface for monitoring and controlling industrial processes. The CP435T features a high-resolution display (800 x 480 pixels) with 64K colors, ensuring clear visibility and precise control. It supports multiple communication protocols, including RS-232/RS-485, Ethernet, CANopen, Modbus RTU/TCP, and Profibus DP, making it highly versatile and compatible with various industrial systems.
Core Advantages and Technical Highlights
High-Resolution Display: The CP435T features a 7-inch TFT LCD with a resolution of 800 x 480 pixels and 64K colors, providing clear and detailed visual feedback for operators.
Versatile Communication Options: The panel supports a wide range of communication protocols, enabling seamless integration with PLCs, SCADA systems, and other industrial devices.
Robust Industrial Design: The CP435T is designed for harsh industrial environments, with an IP65 protection rating and an operating temperature range of 0°C to 50°C. Its compact size and lightweight construction (0.86 kg) make it easy to install and integrate into control panels.
User-Friendly Interface: The touchscreen interface is intuitive and easy to navigate, with customizable menus and buttons to suit specific application needs. The panel also includes 1 menu key and 6 programmable function keys for efficient operation.
Advanced Diagnostics: Built-in diagnostic functions monitor communication link status and report faults via indicator lights or software logs, ensuring quick identification and resolution of issues.

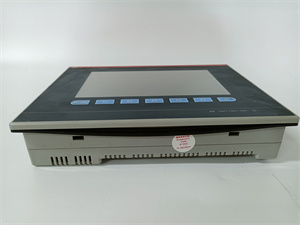

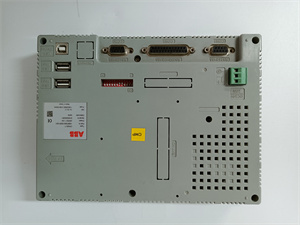

ABB CP435T 1SBP260193R1001
Typical Application Scenarios
The ABB CP435T 1SBP260193R1001 is widely used in various industrial sectors, including manufacturing, power generation, water and wastewater treatment, and HVAC systems. It is ideal for applications requiring precise control and monitoring of industrial processes, such as temperature, pressure, and flow control. The panel’s ability to operate in a wide temperature range and its compact design make it suitable for both indoor and outdoor installations.
Related Model Recommendations
-
ABB CP400 Series: Other models in the CP400 series offer similar functionality with different display sizes and configurations.
-
ABB AC800 Series: PLC controllers that can be seamlessly integrated with the CP435T for comprehensive automation solutions.
-
ABB PM595-4ETH: An Ethernet communication module that can be used for additional connectivity options.
-
ABB CM579-PNIO: A PROFINET IO communication module that can be used alongside the CP435T for enhanced connectivity.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB CP435T 1SBP260193R1001, ensure that the environment meets the specified requirements, including an operating temperature range of 0°C to 50°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB CP435T 1SBP260193R1001, perform regular inspections of the panel and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features. By following these maintenance tips, you can ensure the long-term reliability and optimal performance of the CP435T.
Service and Guarantee Commitment
The ABB CP435T 1SBP260193R1001 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability. This commitment ensures that customers receive reliable and efficient support throughout the product’s lifecycle, giving them confidence in their investment.
