Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CP651-WEB |
| Manufacturer | ABB |
| Product category | Industrial HMI Touchscreen Control Panel |
| Display size | 10.4 inches |
| Display resolution | 800 x 600 pixels |
| Display type | TFT LCD, 64K colors |
| Touchscreen type | Single-touch, resistive touch screen |
| Communication protocols | Ethernet (10/100 Mbit), RS-232, USB Host, Modbus TCP, OPC UA |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Power supply | 24 V DC (18-32 V DC) |
| Power consumption | ≤1.0 A |
| Dimensions | 287 mm x 232 mm x 60 mm |
| Weight | 2.05 kg |
| Protection class | IP65 (front panel) / IP20 (rear panel) |
| Certifications | CE, UL, IEC 61131 |

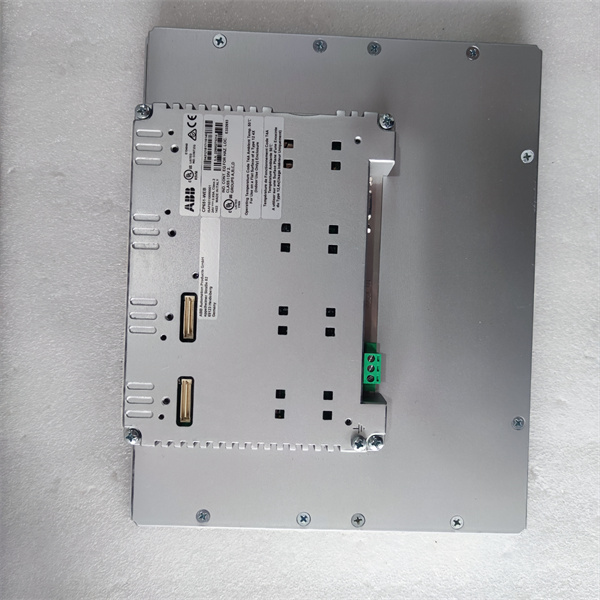

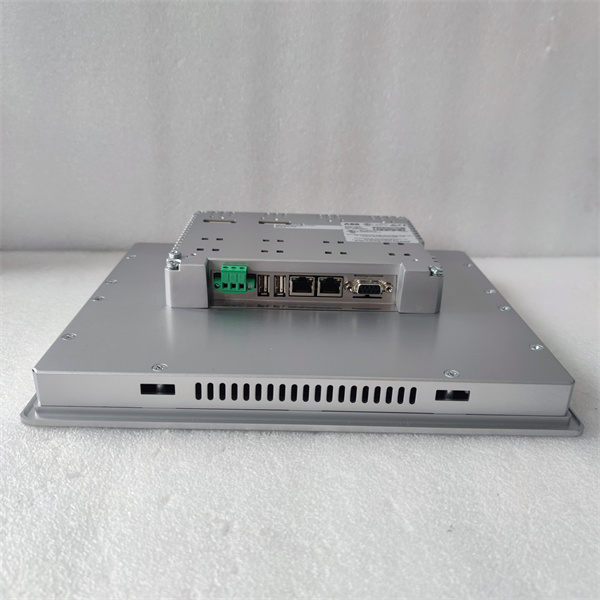

CP651-WEB
Product Introduction
The ABB CP651-WEB is a high-performance industrial control panel designed for a wide range of automation applications. It features a 10.4-inch TFT LCD touchscreen with a resolution of 800 x 600 pixels and supports 64K colors, providing clear and detailed visual feedback for operators. The panel integrates a microbrowser for visualization of ABB AC500 V2.3 web server applications, enabling remote monitoring and control through standard web browsers.
Core Advantages and Technical Highlights
High-Resolution Display: The CP651-WEB features a 10.4-inch TFT LCD with a resolution of 800 x 600 pixels and 64K colors, ensuring clear and detailed visualization.
Versatile Communication Options: The panel supports multiple communication protocols, including Ethernet (10/100 Mbit), RS-232, USB Host, Modbus TCP, and OPC UA, enabling seamless integration with various industrial systems.
Robust Industrial Design: The CP651-WEB is designed for harsh industrial environments, with an IP65 protection rating for the front panel and an operating temperature range of -25°C to +70°C.
User-Friendly Interface: The resistive touchscreen supports single-touch operation and is compatible with gloves, making it suitable for industrial environments. The panel also includes ABB’s Panel Builder 800 software for easy interface development.
Advanced Diagnostics: Built-in diagnostic functions monitor communication link status and report faults via indicator lights or software logs, ensuring quick identification and resolution of issues.

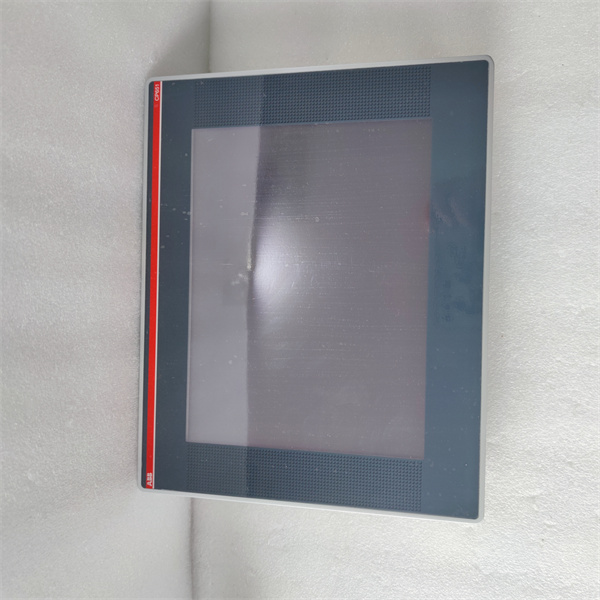

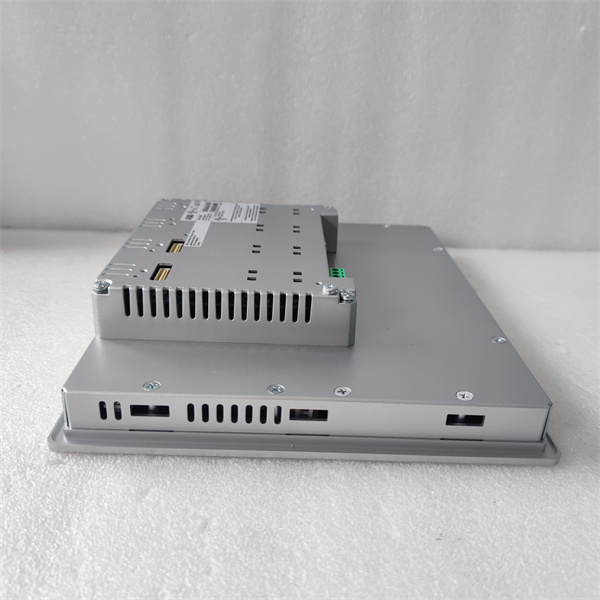

CP651-WEB
Typical Application Scenarios
The ABB CP651-WEB is widely used in various industrial sectors, including manufacturing, power generation, water and wastewater treatment, and HVAC systems. It is ideal for applications requiring precise control and monitoring of industrial processes, such as temperature, pressure, and flow control. The panel’s ability to operate in a wide temperature range and its compact design make it suitable for both indoor and outdoor installations.
Related Model Recommendations
-
ABB CP635: A 7-inch touchscreen control panel with similar functionality but smaller in size.
-
ABB CP660: A 12.1-inch touchscreen control panel, offering a larger display for more detailed visualization.
-
ABB AC800 Series: PLC controllers that can be seamlessly integrated with the CP651-WEB for comprehensive automation solutions.
-
ABB PM595-4ETH: An Ethernet communication module that can be used for additional connectivity options.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB CP651-WEB, ensure that the environment meets the specified requirements, including an operating temperature range of -25°C to +70°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB CP651-WEB, perform regular inspections of the panel and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features.
Service and Guarantee Commitment
The ABB CP651-WEB is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability.
