Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CP800 |
| Manufacturer | ABB |
| Product category | Industrial Communication Processor Module |
| Input voltage | AC 100-240V or 24V DC |
| Output voltage | 0-10V DC, 0-24V DC |
| Communication protocols | Ethernet, RS-232, RS-485, Modbus RTU, Profibus, Fieldbus Foundation, FF HART, INTERBUS |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Dimensions | 119 mm x 106 mm x 44 mm |
| Weight | 0.16 kg |
| Protection class | IP65 |
| Certifications | CE, UL, RoHS |

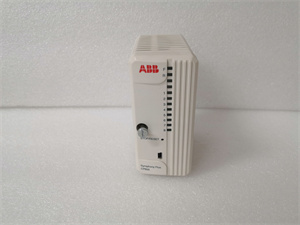

ABB CP800
Product Introduction
The ABB CP800 is a high-performance communication processor module designed for industrial automation applications. It serves as a central hub for communication within the control system, enabling seamless integration and efficient data transfer across various industrial networks. The CP800 supports multiple communication protocols, including Ethernet, RS-232, RS-485, Modbus RTU, Profibus, Fieldbus Foundation, FF HART, and INTERBUS, ensuring compatibility with a wide range of devices.
Core Advantages and Technical Highlights
High-Speed Communication: The CP800 module offers robust and reliable communication capabilities, essential for complex industrial automation environments. It ensures smooth data flow between different components, enabling seamless integration and optimization of processes.
Compact Design: With dimensions of 119 mm x 106 mm x 44 mm and a weight of 0.16 kg, the CP800 is compact and easy to integrate into existing systems without compromising on functionality.
Enhanced Reliability: The module is designed to withstand harsh industrial conditions, with an operating temperature range of -20°C to +70°C and a storage temperature range of -40°C to +85°C. It also features enhanced fault tolerance and reliability, critical for maintaining continuous operation in demanding environments.
User-Friendly Interface: The CP800 comes with intuitive configuration options and supports various programming languages, making it easy to set up and use for both experienced engineers and newcomers.
Advanced Diagnostics: Built-in diagnostic functions monitor communication link status and report faults via indicator lights or software logs, ensuring quick identification and resolution of issues.

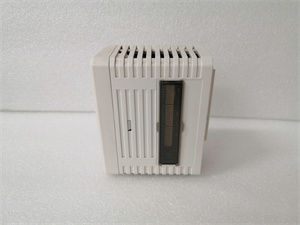

ABB CP800
Typical Application Scenarios
The ABB CP800 is widely used in various industrial sectors, including manufacturing, power generation, water and wastewater treatment, and HVAC systems. It is ideal for applications requiring precise control and monitoring of industrial processes, such as temperature, pressure, and flow control. The module’s ability to operate in a wide temperature range and its compact design make it suitable for both indoor and outdoor installations.
Related Model Recommendations
-
ABB CP635: A 7-inch touchscreen control panel with similar functionality but smaller in size.
-
ABB CP660: A 12.1-inch touchscreen control panel, offering a larger display for more detailed visualization.
-
ABB AC800 Series: PLC controllers that can be seamlessly integrated with the CP800 for comprehensive automation solutions.
-
ABB PM595-4ETH: An Ethernet communication module that can be used for additional connectivity options.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB CP800, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +70°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB CP800, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features.
Service and Guarantee Commitment
The ABB CP800 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability.
