Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CSA464AE |
| Manufacturer | ABB |
| Product category | Industrial Control Module |
| Input voltage | 24V DC / 220V |
| Output voltage | 24V DC / 0-480V AC |
| Output current | 5A / 10A |
| Operating temperature | -20°C to +60°C / -25°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Protection class | IP20 |
| Dimensions | 85 mm x 25 mm x 120 mm / 10″ x 10″ x 6″ |
| Weight | 0.2 kg / 5 lbs |
| Communication protocols | Ethernet, RS-232, RS-485, Modbus, Profibus |
| Certifications | CE, RoHS |

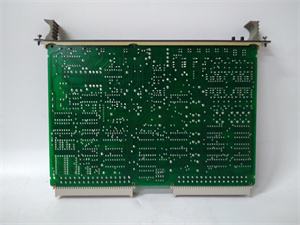

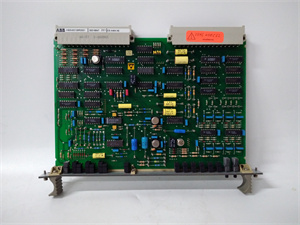

ABB CSA464AE
Product Introduction
The ABB CSA464AE is a high-performance industrial control module designed for a wide range of automation applications. It is part of ABB’s Advant OCS (Open Control System) series and is known for its advanced technology and durable construction. The module is capable of monitoring and controlling various industrial processes, ensuring reliable and efficient operation. It features multiple communication protocols, including Ethernet, RS-232, RS-485, Modbus, and Profibus, making it highly versatile for different industrial environments.
Core Advantages and Technical Highlights
High-Precision Monitoring: The CSA464AE features high-precision monitoring of current, voltage, frequency, and other parameters, providing reliable system protection and fault detection. This ensures the stable operation of power systems and helps in early detection of potential issues.
Flexible Configuration: The module offers flexible configuration options, allowing users to customize settings according to specific application requirements. This adaptability makes it suitable for a wide range of industrial applications.
Robust Industrial Design: The CSA464AE is designed to withstand harsh industrial environments, with an operating temperature range of -20°C to +60°C and a storage temperature range of -40°C to +85°C. Its IP20 protection class ensures durability and reliability in challenging conditions.
Ease of Integration: The module supports multiple communication protocols and can be easily integrated into existing control systems. This simplifies installation and setup processes, reducing engineering costs and time.
Advanced Diagnostics: Built-in diagnostic functions monitor the module’s operating status and the status of connected devices, quickly identifying and reporting any faults or abnormalities. This proactive monitoring capability minimizes downtime and helps in quick troubleshooting.

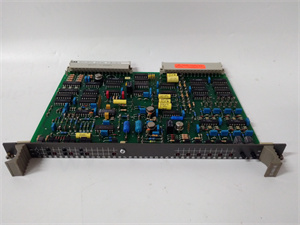

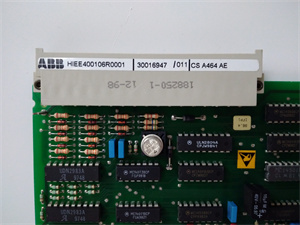

ABB CSA464AE
Typical Application Scenarios
The ABB CSA464AE is widely used in various industrial sectors, including:
-
Power Generation: Monitoring and controlling critical equipment such as generators, transformers, and switchgear.
-
Oil and Gas: Managing and controlling processes in drilling operations, refineries, and pipelines.
-
Manufacturing: Automating production lines for increased efficiency and productivity.
-
Chemical Processing: Supervising complex chemical reactions and material handling processes.
Related Model Recommendations
-
ABB CSA463AE: A powerful processing module suitable for standard automation applications.
-
ABB LD800HSE 3BDH000320R02: A connection controller that can be used in conjunction with the CSA464AE for enhanced control.
-
ABB SCYC51020 58052582G: A pulse control board for specific industrial applications.
-
ABB NDCU-33CX 3AUA0000052751: An I/O module that can be integrated with the CSA464AE for expanded functionality.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB CSA464AE, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB CSA464AE, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features.
Service and Guarantee Commitment
The ABB CSA464AE is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability.
