Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSMB-01C |
| Manufacturer | ABB |
| Product Category | Power Supply Module |
| Input Voltage | 18V to 32V DC |
| Output Voltage | 24V DC |
| Output Current | 10A |
| Power | 240W |
| Efficiency | Up to 90% |
| Operating Temperature | -20°C to +60°C |
| Dimensions (L x W x H) | 105 mm x 45 mm x 22 mm |
| Weight | 0.95 kg |
| Protection Features | Overload, overvoltage, and short-circuit protection |
| Communication Interface | Modbus TCP/IP, Modbus RTU |

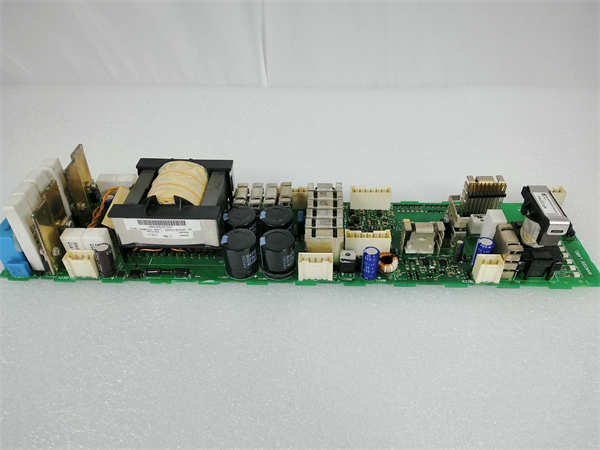

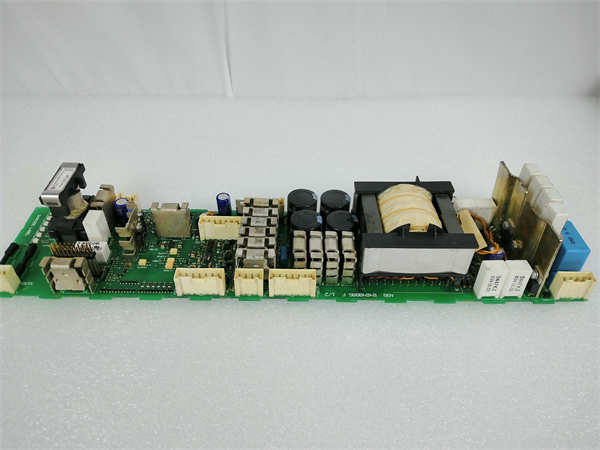

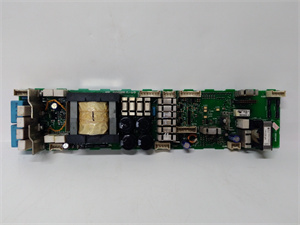

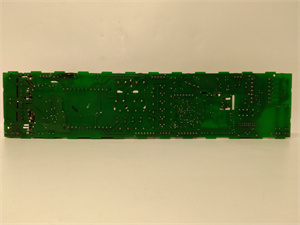

ABB DSMB-01C
Product Introduction
The ABB DSMB-01C is a high-performance power supply module designed for use in ABB’s Distributed Control Systems (DCS) and ACS800 drive series. It provides stable and reliable power to various industrial automation components, ensuring efficient operation in demanding environments. The module features a wide input voltage range (18V to 32V DC) and an output voltage of 24V DC, capable of delivering up to 10A of current. Its compact design and high efficiency (up to 90%) make it ideal for space-constrained applications. The DSMB-01C also includes robust protection mechanisms to safeguard against overvoltage, overload, and short-circuit events.
Core Advantages and Technical Highlights
Wide Input Voltage Range: The ABB DSMB-01C can operate with input voltages ranging from 18V to 32V DC, making it highly adaptable to various power sources.
High Efficiency: With an efficiency of up to 90%, the module minimizes energy loss and reduces operational costs.
Robust Protection Features: The module includes built-in overload, overvoltage, and short-circuit protection, ensuring long-term reliability and reducing maintenance costs.
Compact Design: The DSMB-01C features a compact form factor (105 mm x 45 mm x 22 mm) and weighs only 0.95 kg, making it suitable for installations with limited space.
Advanced Communication Capabilities: The module supports Modbus TCP/IP and Modbus RTU protocols, enabling seamless integration into existing control systems.
Wide Operating Temperature Range: The DSMB-01C can operate reliably in temperatures ranging from -20°C to +60°C, ensuring stability in harsh industrial environments.
ABB DSMB-01C
Typical Application Scenarios
The ABB DSMB-01C is widely used in various industrial sectors where stable power supply is critical. In manufacturing facilities, it powers PLCs, sensors, and actuators, ensuring smooth operation of production lines. In power generation plants, the module provides reliable power to control systems and monitoring equipment. It is also used in robotics for powering control systems and in water treatment plants for driving pumps and valves. The DSMB-01C is an essential component in automation systems, providing stable power to critical equipment.
Related Model Recommendations
-
DSDP170K02: A pulse encoder input module that complements the DSMB-01C for applications requiring precise position and speed measurement.
-
DSAI146: An analog input module with high-precision temperature sensing capabilities, suitable for applications requiring detailed temperature data.
-
DSAO120AK01: An analog output module with high precision and reliability, suitable for applications requiring precise analog control.
-
DSDO115K12: A digital output module with high-density channels, suitable for applications requiring extensive digital control.
-
ACS800 Series: The DSMB-01C is part of the ACS800 series, which includes other power supply modules and drive components for industrial automation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the ABB DSMB-01C, ensure the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference. Ensure proper grounding and power supply specifications to prevent voltage fluctuations.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.
Service and Guarantee Commitment
The ABB DSMB-01C is backed by ABB’s comprehensive support and quality assurance. The module comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSMB-01C undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
