Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSQC679 3HAC028357-001 |
| Manufacturer | ABB |
| Product Category | Robot Teach Pendant |
| Display Type | 10″ Color LCD Touch Screen |
| Input Voltage | 24V DC ±10% |
| Power Consumption | Approx. 5W (idle) |
| Communication Interface | DeviceNet, Ethernet, ABB IRC5 Compatible |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Dimensions (L x W x H) | 38 mm x 34 mm x 223 mm |
| Weight | 0.5 kg |
| Certifications | CE, UL |

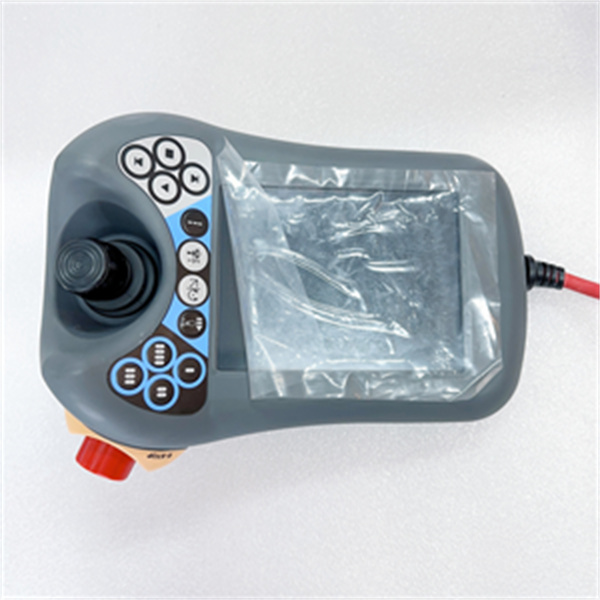

ABB DSQC679 3HAC028357-001
Product Introduction
The ABB DSQC679 3HAC028357-001 is a high-performance teach pendant designed for ABB’s IRC5 series robots. This device serves as the core tool for programming, operating, and maintaining ABB robots, making it an essential component in industrial automation. The teach pendant features a 10″ color LCD touch screen, providing an intuitive interface for users to interact with the robot system. It supports multiple communication protocols, including DeviceNet and Ethernet, ensuring seamless integration with various industrial devices.
Core Advantages and Technical Highlights
Intuitive Interface: The DSQC679 features a user-friendly touch screen interface that simplifies programming and control tasks. The graphical display allows users to easily navigate through menus and configure robot operations.
High Precision and Stability: The teach pendant offers high-precision motion control capabilities, ensuring accurate robot trajectories and improving production efficiency. This precision is crucial for applications requiring high accuracy, such as welding and assembly.
Compatibility: The DSQC679 is compatible with a wide range of ABB robots and industrial automation devices. It supports multiple communication protocols, making it easy to integrate into existing systems.
Durability and Reliability: Built with high-quality materials, the teach pendant is designed to withstand harsh industrial environments. It undergoes rigorous testing to ensure long-term reliability and minimal downtime.
Safety Features: The teach pendant includes safety features that protect both personnel and equipment. It can prevent accidents by controlling the robot’s movements and ensuring safe operation.

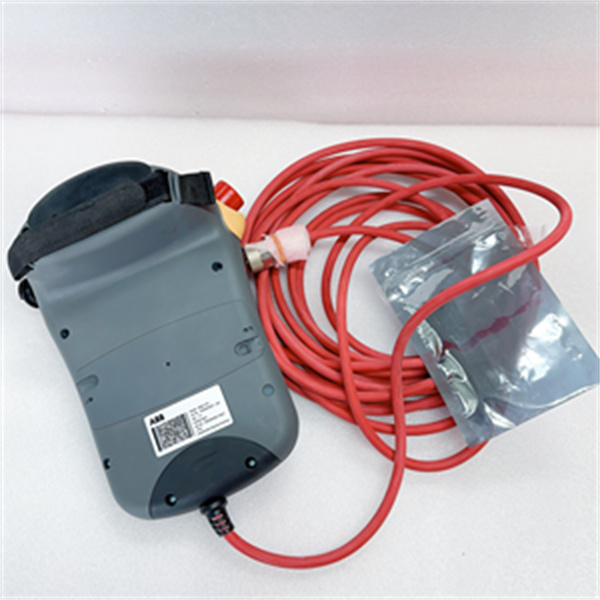

ABB DSQC679 3HAC028357-001
Typical Application Scenarios
The ABB DSQC679 3HAC028357-001 is widely used in various industrial sectors, particularly in automotive manufacturing, electronics assembly, and food and beverage production. In automotive manufacturing, it controls robots for welding, painting, and assembly tasks. In electronics, the teach pendant enables precise control of robots for high-precision assembly and inspection. It is also used in the food and beverage industry to enhance the efficiency and hygiene of automated production lines.
Related Model Recommendations
-
DSQC652: A digital I/O module with 16 inputs and 16 outputs, suitable for applications requiring additional I/O capabilities.
-
DSQC655: A complementary module with enhanced communication capabilities, ideal for applications requiring high-speed data transfer.
-
DSQC355A: An upgraded version with advanced features and improved performance, offering future-proof solutions for digital signal processing needs.
-
DSQC377A: A module designed for specific robot control applications, providing specialized I/O and communication features.
-
DSQC378A: A module with enhanced functionality for complex automation tasks, offering additional I/O points and advanced control capabilities.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the ABB DSQC679 3HAC028357-001, ensure the designated location meets the specified temperature and humidity requirements. Mount the teach pendant securely in the control cabinet or on a suitable stand. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.
Service and Guarantee Commitment
The ABB DSQC679 3HAC028357-001 is backed by ABB’s comprehensive support and quality assurance. The teach pendant comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSQC679 undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
