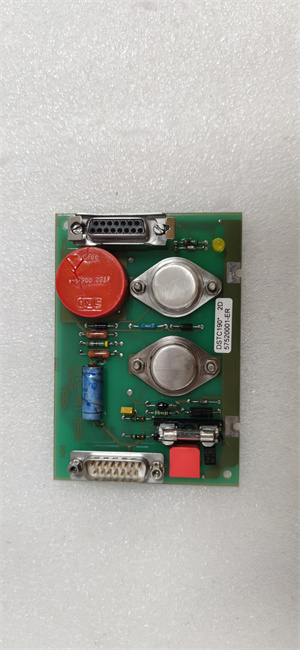

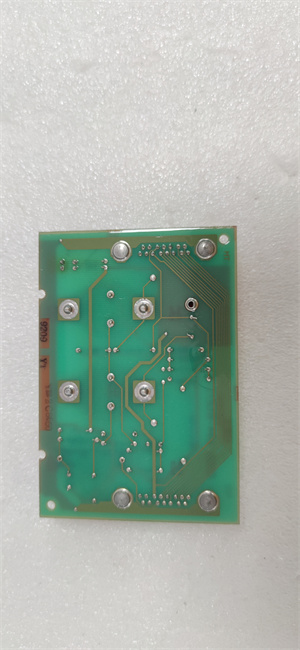

ABB DSTC190
ABB DSTC190
ABB DSTC190

ABB DSTC190

Versatile Communication Capabilities: The DSTC190 supports multiple industrial communication protocols such as Modbus TCP, PROFIBUS, and DeviceNet, enabling seamless integration with various control systems.
Robust Design: The module is designed to operate reliably in harsh industrial environments, with an operating temperature range of -40°C to +70°C. It features IP67 protection, making it resistant to dust and water ingress.
High-Speed Data Transfer: With support for high-speed communication protocols, the DSTC190 ensures efficient data transfer, crucial for real-time control and monitoring.
Easy Integration and Setup: The compact size (100 mm x 75 mm x 35 mm) and lightweight design (0.4 kg) of the DSTC190 make it easy to install and integrate into existing systems.
Advanced Diagnostics: The module includes built-in diagnostic features and fault detection capabilities, simplifying maintenance and troubleshooting.
Get a Quote
Manufacturer:
Part number: ABB DSTC190
Our extensive catalogue, including : ABB DSTC190 , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product Model DSTC190
Manufacturer ABB
Product Category Industrial Communication Module
Input Voltage 24V DC
Output Current 10A
Operating Temperature Range -40°C to +70°C
Dimensions (L x W x H) 100 mm x 75 mm x 35 mm
Weight 0.4 kg
Communication Interfaces Ethernet, RS-485
Supported Protocols Modbus TCP, PROFIBUS, DeviceNet
Certifications CE, UL, RoHS
ABB DSTC190

ABB DSTC190

Product Introduction

The ABB DSTC190 is a high-performance industrial communication module designed for seamless integration into ABB’s Advant OCS system. It serves as a critical component in distributed control systems (DCS), facilitating reliable communication and control in various industrial applications. The module supports multiple communication protocols, including Ethernet and RS-485, ensuring compatibility with a wide range of industrial devices.

Core Advantages and Technical Highlights

Versatile Communication Capabilities: The DSTC190 supports multiple industrial communication protocols such as Modbus TCP, PROFIBUS, and DeviceNet, enabling seamless integration with various control systems.
Robust Design: The module is designed to operate reliably in harsh industrial environments, with an operating temperature range of -40°C to +70°C. It features IP67 protection, making it resistant to dust and water ingress.
High-Speed Data Transfer: With support for high-speed communication protocols, the DSTC190 ensures efficient data transfer, crucial for real-time control and monitoring.
Easy Integration and Setup: The compact size (100 mm x 75 mm x 35 mm) and lightweight design (0.4 kg) of the DSTC190 make it easy to install and integrate into existing systems.
Advanced Diagnostics: The module includes built-in diagnostic features and fault detection capabilities, simplifying maintenance and troubleshooting.

ABB DSTC190

ABB DSTC190

Typical Application Scenarios

The DSTC190 is widely used in various industrial sectors, including manufacturing, power generation, oil and gas, and renewable energy. It is ideal for applications requiring reliable communication and control, such as:
  • Industrial automation systems
  • Process control systems
  • Renewable energy systems (e.g., wind and solar power)
  • Transportation and logistics.

Related Model Recommendations

  • DSTC190 57520001-ER: A specific variant of the DSTC190, suitable for applications requiring compatibility with ABB’s Advant OCS system.
  • DSSR122: A power supply unit suitable for applications requiring stable DC power.
  • DSSB140: A battery unit for applications needing backup power or energy storage.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation: Before installing the DSTC190, ensure the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail using the provided hardware. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.

Service and Guarantee Commitment

The DSTC190 is backed by ABB’s comprehensive support and quality assurance. The module comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
