Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSTYW121 3BSE007836R1 |
| Manufacturer | ABB |
| Product Category | Voltage Transformer Unit |
| Series | ABB Advant OCS |
| Input Voltage Range | 220 V DC |
| Output Voltage Range | 24 V DC |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 225 mm × 121.5 mm × 50 mm |
| Weight | 0.48 kg |
| Certifications | CE, UL, RoHS |
| Protection Level | IP20 |
| Application Areas | Industrial Automation, Power Systems |

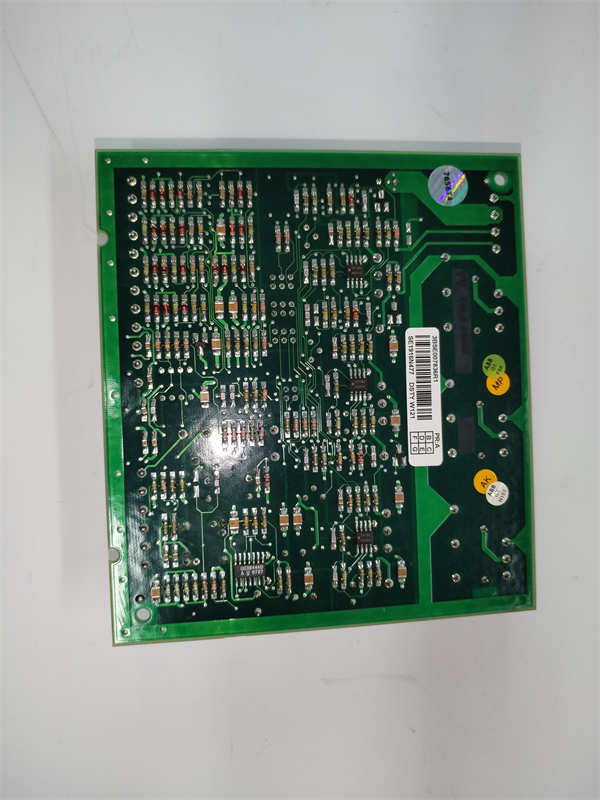

ABB DSTYW121 3BSE007836R1
Product Introduction
The ABB DSTYW121 3BSE007836R1 is a high-performance voltage transformer unit designed for industrial automation and control systems. It is part of the ABB Advant OCS series and is known for its robustness, reliability, and efficiency in harsh industrial environments.
Core Advantages and Technical Highlights
High Precision Signal Processing: The DSTYW121 features high accuracy and stability, ensuring precise voltage transformation and measurement.
Wide Operating Range: It operates reliably within a temperature range of -20°C to +70°C and a humidity range of 5% to 95% non-condensing.
Advanced Diagnostics: The module includes diagnostic functions to monitor and troubleshoot system performance, ensuring minimal downtime.
Compact Design: The DSTYW121 has a compact form factor (225 mm × 121.5 mm × 50 mm) and weighs only 0.48 kg, making it easy to install and integrate into existing systems.

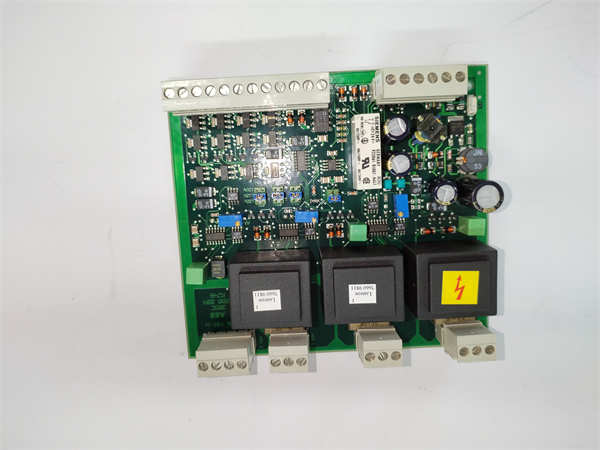

ABB DSTYW121 3BSE007836R1
Typical Application Scenarios
The ABB DSTYW121 3BSE007836R1 is widely used in various industrial sectors, including:
-
Manufacturing Plants: For precise control of production lines and machinery.
-
Power Plants: For monitoring and controlling power generation processes.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Transportation Systems: For real-time control of traffic signals and other transportation infrastructure.
Related Model Recommendations
-
ABB 70BV05A-ES: Known for its robust I/O capabilities.
-
ABB 70EA2a-ES: A reliable choice for general control tasks.
-
ABB 70EA01B-ES: Ideal for communication-intensive applications.
-
ABB 70EB0lb-E: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB DSTYW121 3BSE007836R1 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
