High-Speed Communication: The EI813F supports IEEE 802.3 standard, providing fast data transmission rates up to 10 Mbps, ensuring efficient real-time communication.
Direct Memory Access: The module features direct memory access, reducing CPU overhead and enhancing system performance.
Battery Backup (Optional): The EI813F can be equipped with a battery backup to ensure data persistence during power failures, enhancing system reliability.
Easy Integration: The module is designed for easy integration with ABB PLCs and other compatible devices, simplifying installation and maintenance.
State Indicators: The module includes LED indicators for monitoring communication status, facilitating quick troubleshooting.
High Compatibility: The EI813F supports multiple communication protocols, including Modbus TCP and EtherNet/IP, ensuring seamless integration with various industrial systems.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product Model EI813F
Manufacturer ABB
Product Category Ethernet Communication Module
Series ABB EI813 Series
Interface Type 10BaseT Ethernet
Data Rate 10 Mbps
Operating Voltage 24V DC
Operating Temperature Range -20°C to +60°C
Storage Temperature Range -40°C to +85°C
Humidity Range 5% to 95% non-condensing
Dimensions (L×W×H) 125 mm × 28 mm × 155 mm
Weight 0.15 kg
Certifications CE, UL, RoHS
Communication Protocols TCP/IP, UDP/IP, Modbus TCP, EtherNet/IP
Protection Level IP20
ABB EI813F

ABB EI813F

Product Introduction

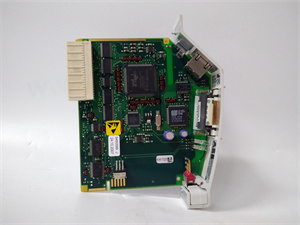

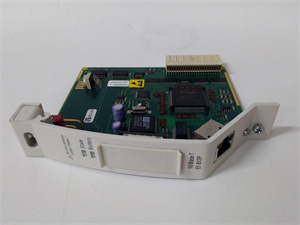

The ABB EI813F is a high-performance Ethernet communication module designed for industrial automation systems. It is part of the ABB EI813 series and is known for its robustness, reliability, and efficiency in harsh industrial environments.

Core Advantages and Technical Highlights

High-Speed Communication: The EI813F supports IEEE 802.3 standard, providing fast data transmission rates up to 10 Mbps, ensuring efficient real-time communication.
Direct Memory Access: The module features direct memory access, reducing CPU overhead and enhancing system performance.
Battery Backup (Optional): The EI813F can be equipped with a battery backup to ensure data persistence during power failures, enhancing system reliability.
Easy Integration: The module is designed for easy integration with ABB PLCs and other compatible devices, simplifying installation and maintenance.
State Indicators: The module includes LED indicators for monitoring communication status, facilitating quick troubleshooting.
High Compatibility: The EI813F supports multiple communication protocols, including Modbus TCP and EtherNet/IP, ensuring seamless integration with various industrial systems.
ABB EI813F

ABB EI813F

Typical Application Scenarios

The ABB EI813F is widely used in various industrial sectors, including:
  • Industrial Automation: For data communication and control in manufacturing plants.
  • Power Systems: For monitoring and controlling power generation processes.
  • Building Automation: For managing building facilities such as lighting and HVAC systems.
  • Energy Management: For controlling and monitoring energy equipment to improve efficiency.

Related Model Recommendations

  • ABB 70BV05A-ES: Known for its robust I/O capabilities.
  • ABB 70EA2a-ES: A reliable choice for general control tasks.
  • ABB 70EA01B-ES: Ideal for communication-intensive applications.
  • ABB 70EB0lb-E: Designed for motion control.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.

Service and Guarantee Commitment

The ABB EI813F comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
