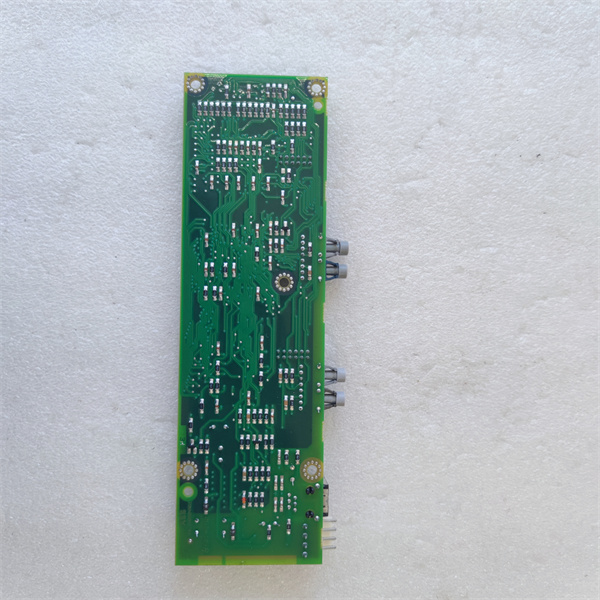

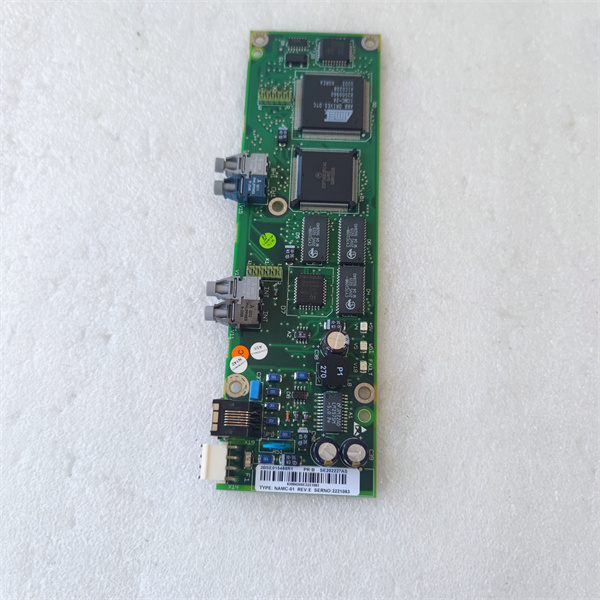

ABB NAMC-01 3BSE015488R1

Description

Detailed Parameter Table

Parameter Name	Parameter Value
Product model	ABB NAMC-01 3BSE015488R1
Manufacturer	ABB
Product category	Digital I/O Control Module
Input Voltage	18-36 VDC
Operating Temperature Range	-40°C to +85°C
Dimensions (W x H x D)	90 mm x 45 mm x 70 mm
Weight	0.5 kg
Communication Interface	RS-485, CAN
Certifications	CE, RoHS Compliant
Supported Protocols	Modbus RTU, CANopen
Typical Power Consumption	3.5 watts

ABB NAMC-01 3BSE015488R1

Product Introduction

Core Advantages and Technical Highlights

• The ABB NAMC-01 3BSE015488R1 integrates multiple control functions into a single module, saving space and improving system reliability.

• Various control functions can be realized through software configuration, offering flexibility to adapt to different application requirements.

• The module uses industrial-grade components and is designed to operate in harsh industrial environments with a wide temperature range (-40°C to +85°C).

• The modular design of the ABB NAMC-01 3BSE015488R1 allows for easy maintenance and replacement, reducing downtime.

• The module supports multiple communication protocols, including RS-485 and CAN, ensuring seamless integration with existing control systems.



  ABB NAMC-01 3BSE015488R1

Typical Application Scenarios

• Oil and Gas Industry: Monitoring and controlling key parameters such as pressure, temperature, and flow in pipelines and refineries.
• Manufacturing Automation: Used in production lines to control motors, solenoids, and other discrete manufacturing equipment.
• Power Distribution Industry: In substations and power plants, the module is used for monitoring and controlling auxiliary equipment such as pumps and fans.
• Water and Wastewater Treatment: For controlling variables such as chemical dosing, flow regulation, and pressure monitoring.

Related Model Recommendations

• ABB NAMC-11 3BSE015488R1: A similar model with the same functionality but different revision.
• ABB 3BSE015488R1 Rev E: An upgraded version with enhanced performance and reliability.
• ABB 3BSE015488R1 Refurbished: A cost-effective option with the same functionality, suitable for budget-conscious applications.
• ABB 3BSE015488R1 NAMC-11 Rev C: An earlier revision of the module, suitable for systems that require backward compatibility.

Installation, Commissioning, and Maintenance Instructions

• Verify the compatibility of the ABB NAMC-01 3BSE015488R1‘s interface with the existing control system. Ensure that the RS-485 or CAN bus connection meets the system requirements and that the input voltage range is within 18-36 VDC.
• Provide sufficient ventilation around the module, especially in high-temperature environments.

• Regularly inspect the DIN rail installation to ensure the module is securely mounted.
• Monitor the status indicator lights to detect any signs of malfunction.
• Check cable connections for security and inspect for signs of wear and tear.
• Conduct functional testing on the module at least once a year to ensure optimal performance.
