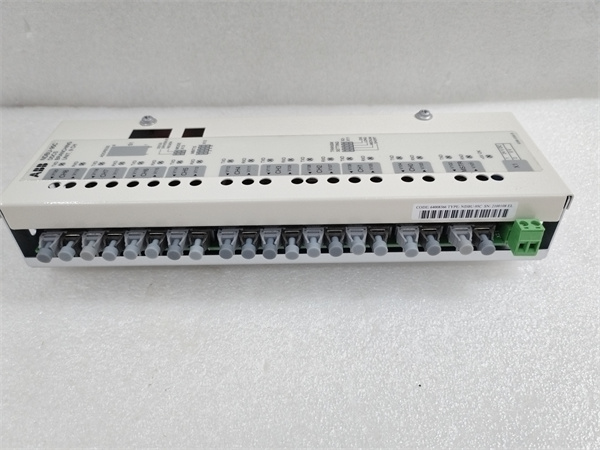

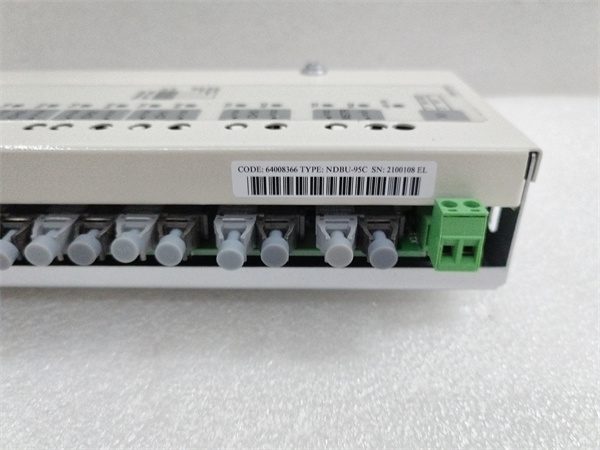

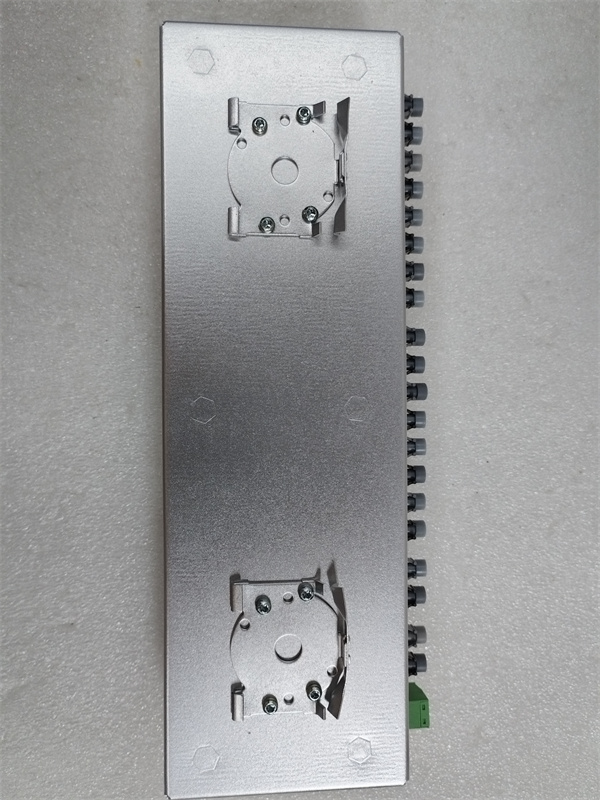

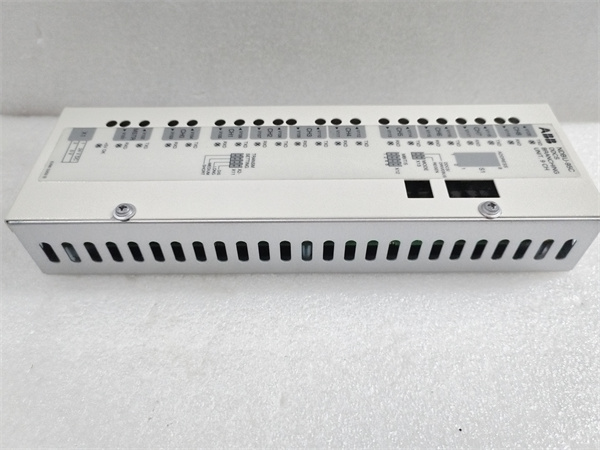

ABB NDBU-95C 64008366

Description

Detailed Parameter Table

Parameter Name	Parameter Value
Product model	ABB NDBU-95C 64008366
Manufacturer	ABB
Product category	Branching Unit
Input Voltage Range	24V DC ±10%
Operating Temperature Range	-40°C to +85°C
Dimensions (W x H x D)	41 mm x 264 mm x 94 mm
Weight	1 kg
Communication Interface	Modbus, Profibus, Ethernet
Certifications	CE, UL, ATEX certified
Supported Protocols	Modbus, Profibus, Ethernet/IP
Typical Power Consumption	2.5 watts

ABB NDBU-95C 64008366

Product Introduction

Core Advantages and Technical Highlights

• The ABB NDBU-95C 64008366 features high accuracy (±0.25% of full scale) and a wide measurement range (0.3 to 10m), ensuring reliable data for critical monitoring applications.
• It supports multiple output modes, including 4-20mA, RS485, and Modbus, for easy integration with other systems and networks.

• The unit is designed to operate reliably within a wide temperature range (-40°C to +85°C), making it suitable for harsh industrial environments.
• It features a protection rating of IP67, ensuring stability and longevity even in challenging conditions.

• The ABB NDBU-95C 64008366 supports multiple communication protocols, including Modbus, Profibus, and Ethernet/IP, ensuring seamless integration with existing control systems.

• The compact design (41 mm x 264 mm x 94 mm) and lightweight (1 kg) make the branching unit easy to install and maintain.
• Its IP67 protection class ensures durability and longevity, even in challenging conditions.



  smart

Typical Application Scenarios

• Manufacturing Automation: Installed in production lines to optimize signal distribution and ensure efficient operation of machinery.
• Energy Sector: Used for monitoring and controlling key parameters in power plants and substations.
• Food Processing Plants: Reliable signal distribution in environments with high humidity and frequent washdowns.

Related Model Recommendations

• ABB ACS800: A frequency converter that works seamlessly with the ABB NDBU-95C 64008366 for complete control solutions.
• ABB ACS850: Another compatible frequency converter that benefits from the branching capabilities of the ABB NDBU-95C 64008366.
• ABB ACS550: A versatile frequency converter that can utilize the ABB NDBU-95C 64008366 for enhanced control.
• ABB NDBU-95C 3AFE64008366: A variant with similar functionality but different configurations.

Installation, Commissioning, and Maintenance Instructions

• Ensure the installation environment meets the specified temperature and humidity requirements. The branching unit should be installed in a location with adequate ventilation to dissipate heat.
• Verify that the power supply voltage is within the specified range (24V DC ±10%) to avoid damage to the unit.

• Regularly inspect the installation to ensure the branching unit is securely mounted and all connections are tight.
• Monitor the operational status of the unit to detect any signs of malfunction early.
• Conduct functional testing on the branching unit at least once a year to ensure optimal performance.
