Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB NDCU-21C |
| Manufacturer | ABB |
| Product category | Drive Control Unit |
| Operating Voltage | 24V DC |
| Operating Temperature Range | -25°C to +70°C |
| Dimensions (W x H x D) | 10.2 cm x 7.6 cm x 27.9 cm |
| Weight | 1.4 kg |
| Communication Interface | RS-232, CAN, Ethernet |
| Certifications | CE, UL, ATEX certified |
| Supported Protocols | Modbus RTU, Modbus TCP/IP, CANopen |
| Typical Power Consumption | 200 mA at 24V DC |

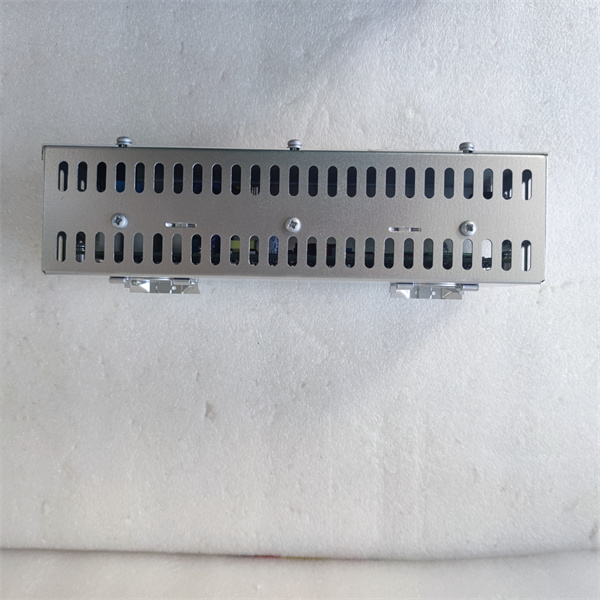

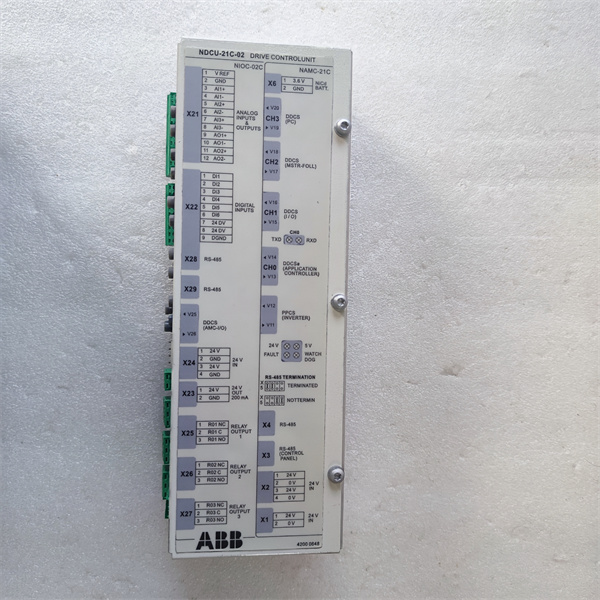

ABB NDCU-21C
Product Introduction
The ABB NDCU-21C is a high-performance drive control unit designed for industrial automation systems. It offers advanced control capabilities and high power efficiency, making it suitable for a wide range of applications, including manufacturing, logistics, and energy management. The NDCU-21C is part of the ABB ACS series and is designed to provide precise control and protection for three-phase asynchronous motors. It supports various control modes, including speed, torque, and position control, and features multiple communication protocols for seamless integration into existing systems.
Core Advantages and Technical Highlights
High Performance and Precision:
-
The ABB NDCU-21C provides high-precision control with a dynamic response suitable for demanding industrial applications. It supports multiple control modes, ensuring precise motor control and protection.
Robust Industrial Design:
-
Designed for harsh industrial environments, the NDCU-21C operates reliably within a wide temperature range (-25°C to +70°C) and features a durable IP20-rated enclosure.
Advanced Communication Capabilities:
-
The unit supports multiple communication protocols, including Modbus RTU, Modbus TCP/IP, and CANopen, ensuring compatibility with a variety of control systems.
Ease of Use and Maintenance:
-
The ABB NDCU-21C features user-friendly interfaces and comprehensive diagnostic tools, simplifying setup, monitoring, and troubleshooting processes. Its compact size and lightweight design make it easy to install and maintain.
Energy Efficiency:
-
The drive control unit is designed to optimize energy use without compromising performance, contributing to sustainable industrial practices.

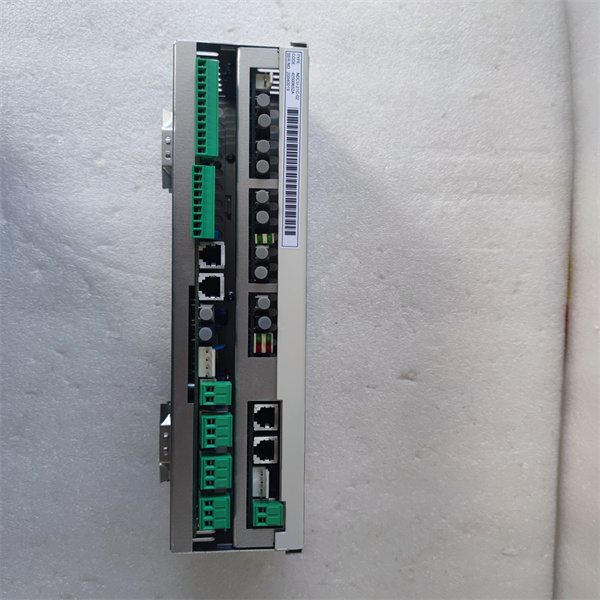

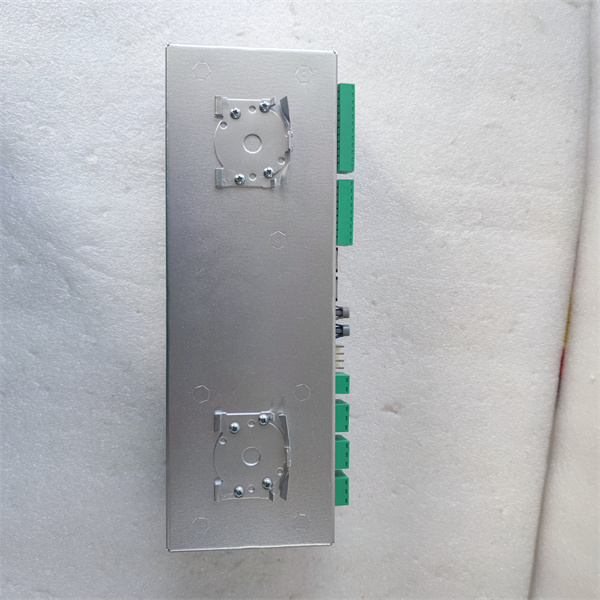

ABB NDCU-21C
Typical Application Scenarios
The ABB NDCU-21C is widely used across various industrial sectors:
-
Manufacturing: For precise control of motors in production lines, ensuring high efficiency and reliability.
-
Energy Management: Used in power plants and substations to optimize the performance of electrical equipment.
-
Logistics: In material handling systems, such as conveyor belts and robotic arms, to ensure smooth and efficient operation.
Related Model Recommendations
-
ABB ACS800: A frequency converter that works seamlessly with the ABB NDCU-21C for complete control solutions.
-
ABB ACS850: Another compatible frequency converter that benefits from the control capabilities of the ABB NDCU-21C.
-
ABB ACS550: A versatile frequency converter that can utilize the ABB NDCU-21C for enhanced control.
-
ABB NDCU-21C-02: A variant with similar functionality but different configurations.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
-
Ensure the installation environment meets the specified temperature and humidity requirements. The control unit should be installed in a location with adequate ventilation to dissipate heat.
-
Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the unit.
Maintenance Suggestions:
-
Regularly inspect the installation to ensure the control unit is securely mounted and all connections are tight.
-
Monitor the operational status of the unit to detect any signs of malfunction early.
-
Conduct functional testing on the control unit at least once a year to ensure optimal performance.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB NDCU-21C, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
