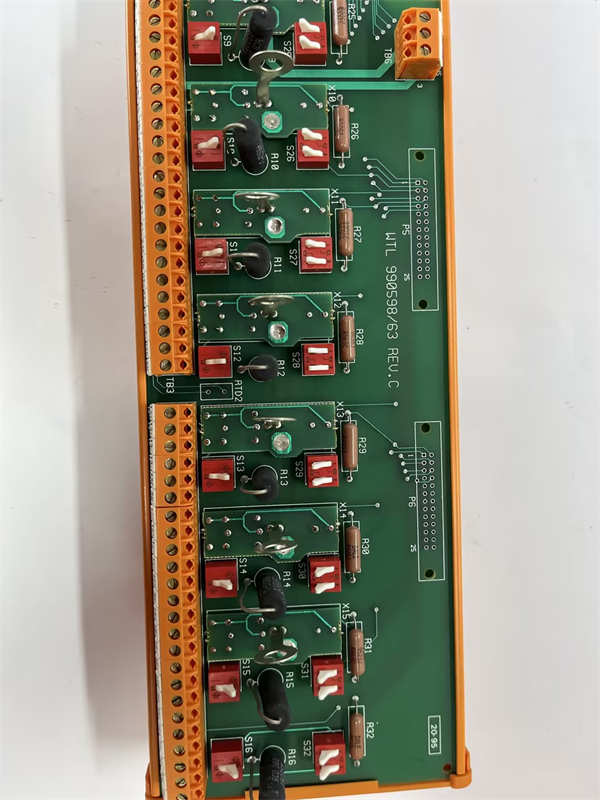

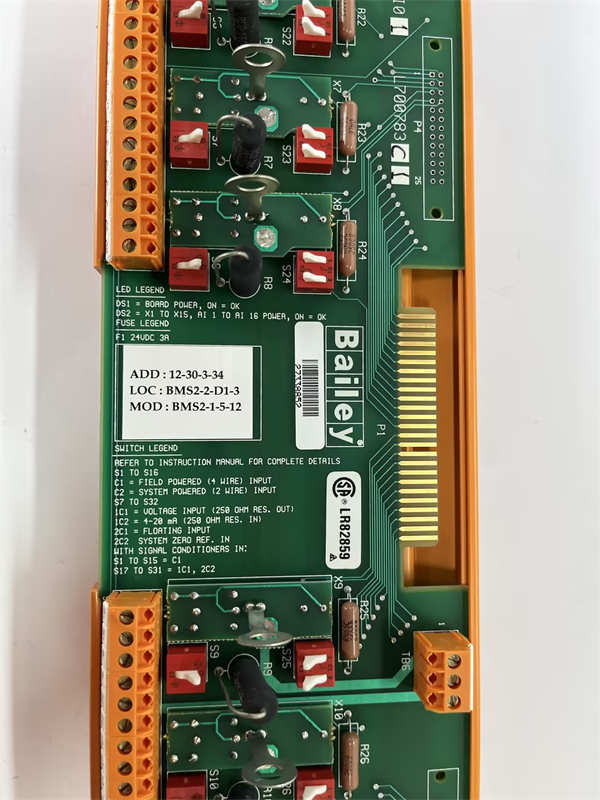

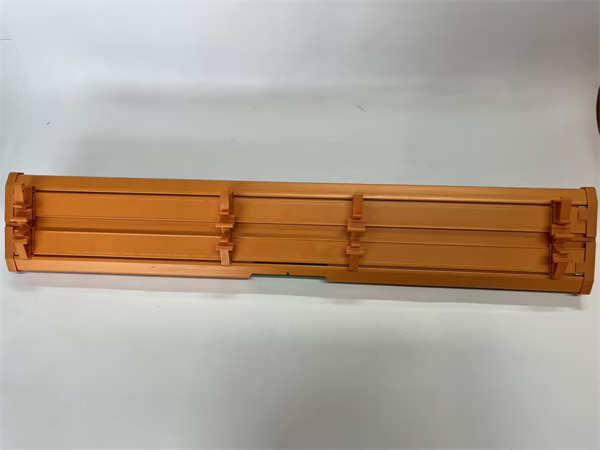

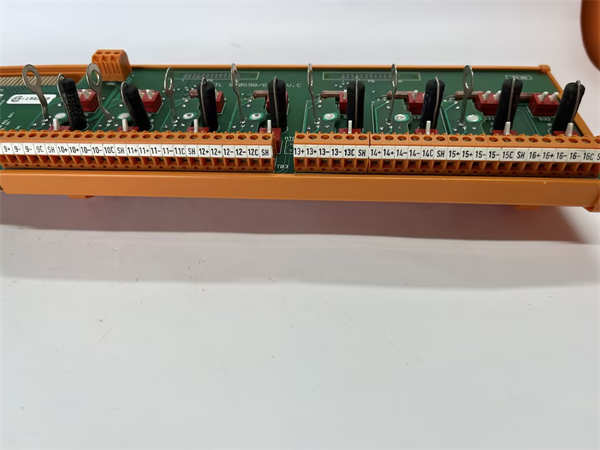

ABB NRAI01

Description

Detailed Parameter Table

Parameter Name	Parameter Value
Product model	ABB NRAI01
Manufacturer	ABB
Product category	Analog Input Termination Assembly
Operating Voltage	24V DC ±10%
Operating Temperature Range	-25°C to +70°C
Dimensions (W x H x D)	140 mm x 160 mm x 22 mm
Weight	500 g
Communication Interface	RS-485, Modbus RTU, PROFIBUS DP
Certifications	CE, UL, ATEX certified
Supported Protocols	Modbus RTU, PROFIBUS DP, Ethernet/IP
Typical Power Consumption	2W

ABB NRAI01

Product Introduction

Core Advantages and Technical Highlights

• The ABB NRAI01 features a 16-bit resolution and ±0.1% accuracy, ensuring precise signal conversion even in fluctuating environmental conditions. Its isolated channels reduce cross-talk and interference, enhancing data integrity.

• The module supports multiple analog signal types, including 4-20 mA, 0-10 V, thermocouples, and RTDs, eliminating the need for separate modules for different sensors. This simplifies inventory management and system design.

• Rated for operation in extreme temperatures (-40°C to +70°C) and resistant to vibration, humidity, and electromagnetic interference, the NRAI01 is suitable for harsh industrial environments.

• Designed for plug-and-play installation, the NRAI01 seamlessly connects with ABB control systems and third-party platforms via standard communication protocols, reducing setup time and configuration complexity.

• With a typical power consumption of only 2W, the ABB NRAI01 is designed to optimize energy use without compromising performance.



  ABB NRAI01

Typical Application Scenarios

• Manufacturing: For precise control of motors in production lines, ensuring high efficiency and reliability.
• Energy Management: Used in power plants and substations to optimize the performance of electrical equipment.
• Process Control: For monitoring and controlling key parameters in industrial processes, such as temperature, pressure, and flow.
• Water and Wastewater Treatment: For monitoring water levels, flow rates, and other critical parameters.

Related Model Recommendations

• ABB ACS800: A frequency converter that works seamlessly with the ABB NRAI01 for complete control solutions.
• ABB ACS850: Another compatible frequency converter that benefits from the control capabilities of the ABB NRAI01.
• ABB ACS550: A versatile frequency converter that can utilize the ABB NRAI01 for enhanced control.
• ABB NDCU-21C: A drive control unit that complements the ABB NRAI01 for advanced control applications.

Installation, Commissioning, and Maintenance Instructions

• Ensure the installation environment meets the specified temperature and humidity requirements. The termination assembly should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC ±10%) to avoid damage to the module.

• Regularly inspect the installation to ensure the termination assembly is securely mounted and all connections are tight. Monitor the operational status of the module to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.
