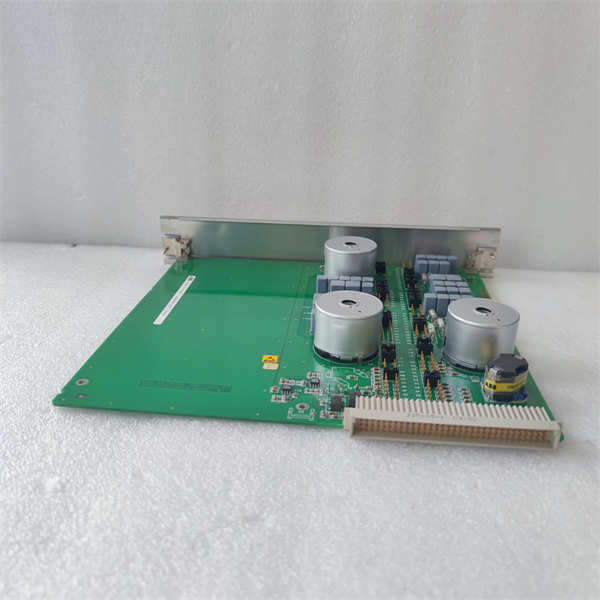

ABB P4LR 1KHL015107R0001
ABB P4LR 1KHL015107R0001

ABB P4LR 1KHL015107R0001

High Performance and Reliability:
  • The ABB P4LR 1KHL015107R0001 features a robust design with a wide operating temperature range (-20°C to +60°C) and low power consumption (<2 W), making it suitable for long-term use in demanding conditions.
Advanced Communication Capabilities:
  • The module supports multiple communication protocols, including PROFIBUS DP, Modbus RTU, and Ethernet/IP, ensuring seamless integration with existing control systems.
Compact and Durable Design:
  • With dimensions of 82 mm x 30 mm x 23 mm and a weight of only 0.08 kg, the module is compact and lightweight, making it easy to install in tight spaces.
User-Friendly Configuration:
  • The module is designed for easy installation and configuration, reducing setup time and maintenance complexity.
Get a Quote
Manufacturer:
Part number: ABB P4LR 1KHL015107R0001
Our extensive catalogue, including : ABB P4LR 1KHL015107R0001 , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product model ABB P4LR 1KHL015107R0001
Manufacturer ABB
Product category Industrial Control Module
Operating Voltage 24V DC
Communication Interface PROFIBUS DP, Modbus RTU, Ethernet/IP
Transmission Rate 12 Mbps
Connection Type 9-pin D-type connector
Power Consumption <2 W
Operating Temperature Range -20°C to +60°C
Storage Temperature Range -40°C to +85°C
Protection Rating IP20
Dimensions (W x H x D) 82 mm x 30 mm x 23 mm
Weight 0.08 kg
Certifications CE, IEC 61131-3
ABB P4LR 1KHL015107R0001

ABB P4LR 1KHL015107R0001

Product Introduction

The ABB P4LR 1KHL015107R0001 is a high-performance industrial control module designed for seamless integration into complex automation systems. It provides precise control over critical processes and ensures reliable operation in harsh industrial environments.

Core Advantages and Technical Highlights

High Performance and Reliability:
  • The ABB P4LR 1KHL015107R0001 features a robust design with a wide operating temperature range (-20°C to +60°C) and low power consumption (<2 W), making it suitable for long-term use in demanding conditions.
Advanced Communication Capabilities:
  • The module supports multiple communication protocols, including PROFIBUS DP, Modbus RTU, and Ethernet/IP, ensuring seamless integration with existing control systems.
Compact and Durable Design:
  • With dimensions of 82 mm x 30 mm x 23 mm and a weight of only 0.08 kg, the module is compact and lightweight, making it easy to install in tight spaces.
User-Friendly Configuration:
  • The module is designed for easy installation and configuration, reducing setup time and maintenance complexity.

Typical Application Scenarios

The ABB P4LR 1KHL015107R0001 is widely used across various industrial sectors:
  • Manufacturing: For precise control of robotic arms, CNC machines, and packaging lines.
  • Energy Management: For monitoring and controlling valve positions and conveyor belts in power plants.
  • Process Control: For precise position and speed control in industrial processes.
  • Robotics: For joint control and motion synchronization in robotic systems.

Related Model Recommendations

  • ABB ACS800: A frequency converter that works seamlessly with the ABB P4LR 1KHL015107R0001 for complete control solutions.
  • ABB ACS850: Another compatible frequency converter that benefits from the control capabilities of the ABB P4LR 1KHL015107R0001.
  • ABB ACS550: A versatile frequency converter that can utilize the ABB P4LR 1KHL015107R0001 for enhanced control.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation:
  • Ensure the installation environment meets the specified temperature and humidity requirements. The module should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the module.
Maintenance Suggestions:
  • Regularly inspect the installation to ensure the module is securely mounted and all connections are tight. Monitor the operational status of the module to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.

Service and Guarantee Commitment

ABB provides comprehensive support for the ABB P4LR 1KHL015107R0001, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
