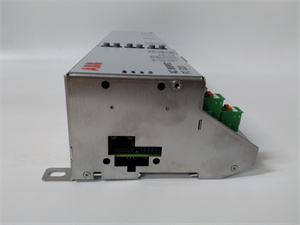

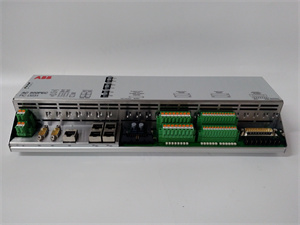

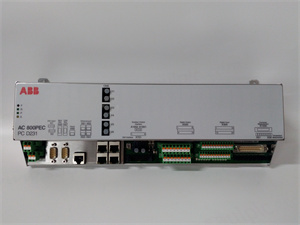

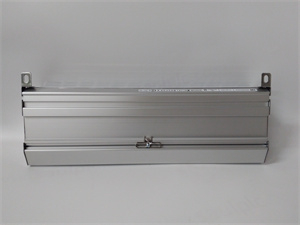

ABB PCD231B101

Description

Detailed Parameter Table

Parameter Name	Parameter Value
Product model	ABB PCD231B101 3BHE025541R0101
Manufacturer	ABB
Product category	Industrial Control Module
Operating Voltage	24V DC (18-32V wide range)
Power Consumption	<4W
Communication Interface	Modbus TCP/IP, RS485, CAN Bus, Ethernet/IP
Operating Temperature Range	-20°C to +60°C
Storage Temperature Range	-40°C to +85°C
Protection Rating	IP20
Dimensions (W x H x D)	132 mm x 105 mm x 52 mm
Weight	1.5 kg
Certifications	CE, UL, IECEx

ABB PCD231B101

Product Introduction

Core Advantages and Technical Highlights

• The ABB PCD231B101 3BHE025541R0101 features a high-performance ARM Cortex-A9 dual-core processor running at 1.2 GHz, providing up to three times the performance of its predecessor (e.g., PCD230) with floating-point operation acceleration.
• It supports up to 1024 PID loops with configurable sampling times as short as 1ms, making it suitable for high-speed control applications such as hydraulic servo systems.

• The module supports multiple communication protocols, including Modbus TCP/IP, RS485, CAN Bus, and Ethernet/IP, ensuring seamless integration with existing industrial networks and systems.

• Designed for harsh industrial environments, the module features an IP20 protection rating and operates reliably within a wide temperature range of -20°C to +60°C.

• The module supports programming in multiple IEC 61131-3 standard languages, including Function Block Diagram (FBD), Ladder Logic (LD), and Structured Text (ST), providing flexibility for users to customize control logic.

• With low power consumption (<4W), the module is designed to optimize energy use without compromising performance.



  ABB PCD231B101

Typical Application Scenarios

• Manufacturing: For precise control of robotic arms, CNC machines, and packaging lines.
• Energy Management: For monitoring and controlling valve positions and conveyor belts in power plants.
• Process Control: For precise position and speed control in industrial processes.
• Robotics: For joint control and motion synchronization in robotic systems.

Related Model Recommendations

• ABB ACS800: A frequency converter that works seamlessly with the ABB PCD231B101 3BHE025541R0101 for complete control solutions.
• ABB ACS850: Another compatible frequency converter that benefits from the control capabilities of the ABB PCD231B101 3BHE025541R0101.
• ABB ACS550: A versatile frequency converter that can utilize the ABB PCD231B101 3BHE025541R0101 for enhanced control.

Installation, Commissioning, and Maintenance Instructions

• Ensure the installation environment meets the specified temperature and humidity requirements. The module should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the module.

• Regularly inspect the installation to ensure the module is securely mounted and all connections are tight. Monitor the operational status of the module to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.
