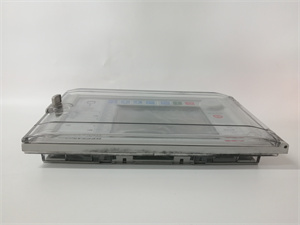

ABB REF542PLUS

Product introduction

The ABB REF542PLUS is a advanced numerical protection relay designed for the protection, control, and monitoring of medium-voltage (MV) distribution networks. As part of ABB’s REF series, it integrates protection, measurement, and communication functions into a single device, making it a key component in modern power distribution automation systems.

The REF542PLUS provides comprehensive protection against electrical faults such as overcurrents, earth faults, and voltage anomalies, ensuring reliable operation of MV networks. Its numerical design allows for precise setting adjustments and flexible configuration, adapting to various network topologies. Equipped with IEC 61850 communication, the REF542PLUS enables seamless integration into smart grid systems, facilitating remote monitoring and control—critical for efficient grid management and quick fault resolution.

In power distribution networks, the REF542PLUS acts as a safeguard, detecting faults within milliseconds and initiating protective actions (like tripping breakers) to minimize damage and downtime. Its advanced measurement capabilities also provide real-time data on network parameters, supporting condition-based maintenance and energy management.

Core advantages and technical highlights

Advanced protection algorithms

The REF542PLUS uses adaptive protection algorithms that adjust to network changes, such as load variations or distributed generation connections. In a wind farm’s MV collection network, this ensures accurate fault detection even when wind turbine output fluctuates—preventing unnecessary tripping during normal load changes while maintaining fast response to actual faults.

Multifunctional integration

Combining protection, measurement, and control in one device, the REF542PLUS reduces equipment footprint and wiring complexity. In a industrial plant’s MV switchgear, it replaces separate protection relays, meters, and control units, cutting installation costs by up to 30%. Its built-in fault recorder captures pre-fault and post-fault data, simplifying root-cause analysis and reducing troubleshooting time.

Smart grid compatibility

With IEC 61850-8-1 and -9-2 compliance, the REF542PLUS supports real-time data exchange with SCADA systems and substation automation. In a utility’s smart distribution network, it enables remote configuration of protection settings and instant fault notifications, allowing operators to restore power faster—reducing average outage duration by 40% compared to legacy relays.

Typical application scenarios

In urban medium-voltage distribution networks, the REF542PLUS protects 10-35 kV feeders supplying residential and commercial areas. It monitors feeder currents and voltages, detecting faults like tree contact or cable insulation failure. When a fault occurs, the REF542PLUS trips the feeder breaker within 50 ms, isolating the fault and preventing it from spreading to other parts of the network.

In industrial facilities such as chemical plants, the REF542PLUS protects MV motors and transformers. It continuously measures motor current to detect thermal overload caused by bearing wear or process jams, issuing alarms before damage occurs. For transformers, it monitors winding temperature and voltage unbalance, ensuring safe operation under varying load conditions.

In renewable energy plants (solar or wind), the REF542PLUS integrates with the plant’s control system to protect the MV collection system. It coordinates with grid codes to ride through voltage dips, preventing unnecessary disconnection of renewable generation during temporary grid disturbances—maximizing energy export and grid stability.

Related model recommendations

REF541PLUS: A compact version of REF542PLUS with fewer protection functions, ideal for simple feeder protection in rural networks.

REF615: Advanced relay for MV/MV and MV/LV transformers, offering specialized transformer protection features compatible with REF542PLUS in substation applications.

RET670: ABB’s bay controller that works with REF542PLUS to manage complete substation automation, handling interlocking and sequence control.

REF543PLUS: Upgrade of REF542PLUS with enhanced processing power and additional protection functions for complex network configurations.

CMU800: Communication module that extends REF542PLUS‘s connectivity options, supporting legacy protocols in mixed automation environments.

REF542: Predecessor of REF542PLUS, replaced by the newer model but still compatible in systems requiring incremental upgrades.

SPAJ140C: Overcurrent relay that can be paired with REF542PLUS in redundant protection schemes for critical feeders.

ABB REF542PLUS

Installation, commissioning and maintenance instructions

Installation preparation: Mount REF542PLUS in a clean, dry switchgear compartment with ambient temperature below 70°C. Ensure proper grounding (PE terminal) with a 4 mm² copper wire. Connect current transformers (CTs) and voltage transformers (VTs) using shielded cables, with shields grounded at both ends. Verify control voltage (110-240 V AC/DC) before wiring, using fused circuits (1 A) to protect the relay. Allow 50 mm clearance around the relay for ventilation.

Maintenance suggestions: Inspect REF542PLUS quarterly by checking LED indicators (green for normal operation, red for alarms). Clean the front panel with a dry cloth to maintain display visibility. Test protection functions annually using a relay test set, verifying trip times match settings. Back up configuration data monthly to a secure device. Replace fuses with ABB-specified ratings (250 mA) if blown. If communication fails, check network cables and IEC 61850 settings before replacing the relay—use ABB service tools for firmware updates to ensure optimal performance.

Service and guarantee commitment

The REF542PLUS comes with a 5-year warranty covering manufacturing defects. ABB provides technical support via its global service network, offering on-site commissioning assistance and remote troubleshooting. Customers receive access to configuration software, user manuals, and training materials to ensure proper operation.

ABB’s service package includes firmware updates during the warranty period and extended service contracts for long-term support. Replacement parts are stocked globally to minimize downtime. With over 30 years of experience in protection relays, ABB guarantees the REF542PLUS meets the highest reliability standards, backed by a commitment to customer satisfaction and network safety.
