GE IS200AEADH1ABA | Mark VI Series Input/Output Grid Fork Board for Turbine Control

Description

IS200AEADH1ABA: Product Overview​

1. Signal Acquisition: Receives analog/digital signals from field devices (e.g., a thermocouple measuring turbine exhaust temperature) and converts them into a format suitable for the VMEbus controller.
2. Signal Routing: Directs processed signals to the VMEbus controller for real-time analysis (e.g., adjusting fuel flow to maintain optimal efficiency) and routes control commands from the controller to field actuators (e.g., solenoid valves).

• VMEbus Compatibility: Conforms to VMEbus Rev. C.1, ensuring seamless integration with VME64 backplanes and controllers (e.g., GE Fanuc 90-30 series). This allows the board to work with existing Mark VI components without major system upgrades.
• Flexible Signal Handling: Supports multiple signal types (LVDT, thermocouple, 4–20 mA, ±10 V DC) through configurable input channels, making it adaptable to diverse field devices.
• High Precision: Uses 12-bit analog-to-digital converters (ADCs) for accurate signal conversion (error < ±0.1% full-scale), critical for maintaining turbine stability.
• Rugged Design: Industrial-grade components and a compact form factor enable 24/7 operation in high-temperature, high-vibration environments (e.g., power plant turbine halls).

• Reliability: The Mark VI system is the industry standard for gas turbine control, with a proven track record of 24/7 operation in power plants worldwide.
• Legacy Compatibility: The board is designed to work with existing Mark VI components (e.g., I/O modules, contactors), reducing the cost of system upgrades.
• Scalability: Supports expansion with additional I/O modules to accommodate growing system demands (e.g., adding more sensors to a turbine control system).

Technical Specifications​

• Model Number: IS200AEADH1ABA (Variant of IS200 Series)
• Manufacturer: GE (General Electric)
• Product Type: I/O Grid Fork Board
• Series: Mark VI (Gas/Steam Turbine Control)
• Form Factor: Rectangular PCB (no front faceplate, factory-drilled mounting holes)
• Bus Standard: VMEbus Rev. C.1 (supports 8/16/32-bit data transfer)
• Input Channels: Configurable (e.g., 8 analog inputs, 4–20 mA or ±10 V DC)
• Output Channels: Configurable (e.g., 4 analog outputs, 4–20 mA or ±10 V DC)
• Isolation: Galvanic isolation (optocouplers, 1500 V AC channel-to-channel)
• Resolution: 12-bit (analog input), 10-bit (analog output)
• Accuracy: ±0.1% (full-scale, analog input), ±0.2% (full-scale, analog output)
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Storage Temperature: -55°C to +100°C (-67°F to 212°F)
• Humidity: 5–95% non-condensing
• Weight: 0.6 kg (1.32 lbs)
• Certifications: CE, UL (inferred from GE industrial product standards)

Core Features & Customer Value​

VMEbus compatibility ensures seamless integration with existing VMEbus systems, minimizing downtime and effort during upgrades. This is invaluable for facilities with legacy VMEbus installations, allowing them to enhance system capabilities without replacing entire architectures.

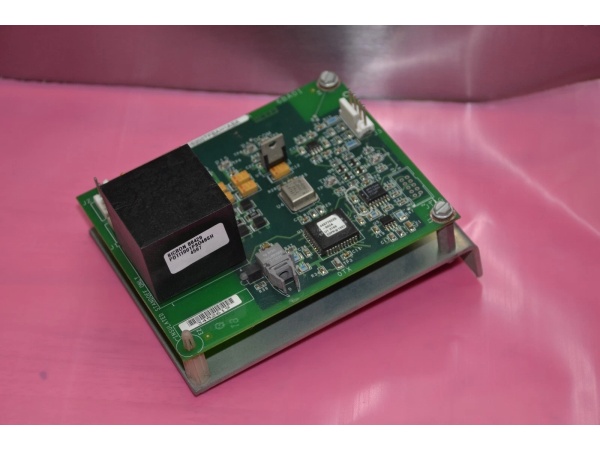

IS200AEADH1ABA

Typical Applications​

1. Power Generation:
   • Monitors analog signals from gas/steam turbines (e.g., blade position, fuel flow, temperature) for real-time control, ensuring stable power output.
2. Manufacturing:
   • Used in assembly lines to acquire analog signals from sensors (e.g., pressure, flow) and control actuators (e.g., valves, motors).
3. Petrochemical Industry:
   • Controls analog signals from refinery equipment (e.g., distillation columns, pumps), ensuring safe and efficient operation in hazardous environments.
