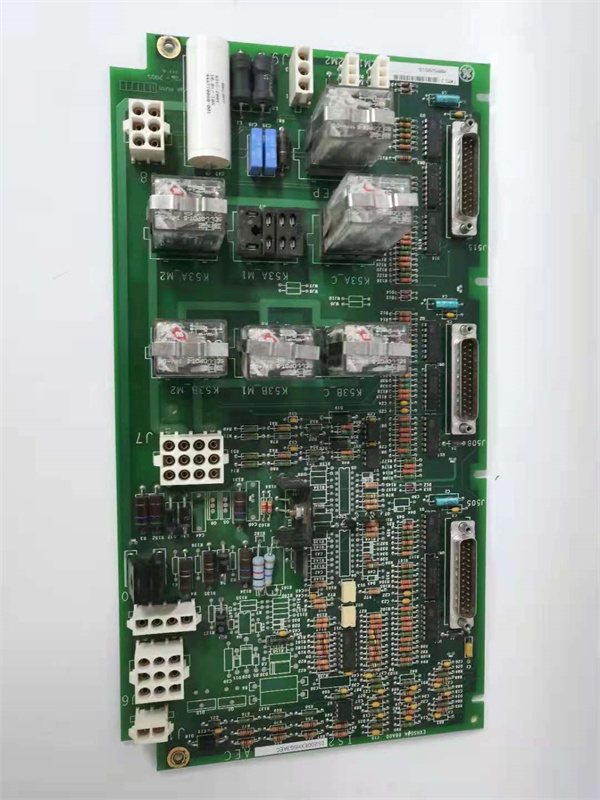

GE IS200EXHSG3REC

Description

1. Product Overview

The GE IS200EXHSG3REC is a key excitation control module within GE’s Mark VIe system, specifically designed for managing the excitation systems of synchronous generators. As an integral part of the Speedtronic product line, it plays a vital role in regulating the generator’s terminal voltage, reactive power output, and ensuring stable parallel operation with the power grid. This module is engineered to meet the stringent demands of industrial power generation, providing precise and reliable control to optimize generator performance and enhance system stability.

2. Technical Specifications

GE IS200EXHSG3REC

3. Core Advantages

Precise Excitation Control: The IS200EXHSG3REC offers exceptional voltage regulation accuracy of ±0.2%, ensuring the generator maintains stable terminal voltage even under varying load conditions. This precision is crucial in power generation plants, where voltage fluctuations can affect the quality of electricity supplied to the grid and damage sensitive equipment. For example, in a combined cycle power plant, the module adjusts the generator’s excitation to compensate for sudden changes in turbine output, keeping the voltage within strict limits.

Robust Environmental Adaptability: With an operating temperature range of -40°C to +70°C, the module thrives in extreme conditions. It can withstand the high temperatures near turbine enclosures, the cold of outdoor installations in northern climates, and the humidity of coastal power plants. This robustness minimizes downtime due to environmental factors, making it ideal for remote power generation sites such as offshore platforms and desert solar farms.

Seamless System Integration: Equipped with Ethernet TCP/IP and Modbus communication, the module integrates effortlessly with Mark VIe control systems, SCADA networks, and operator interfaces. This allows for real-time monitoring of excitation parameters, remote configuration, and data logging. In a large-scale power plant, operators can monitor and adjust excitation settings from a central control room, streamlining operations and reducing the need for on-site intervention.

Advanced Control Features: Incorporates advanced control algorithms, including proportional-integral-derivative (PID) control with adaptive tuning, to handle dynamic load changes and grid disturbances. It also supports grid code compliance, ensuring the generator meets regional requirements for fault ride-through and reactive power support. For instance, during a grid fault, the module can rapidly adjust the excitation to maintain generator stability and prevent disconnection from the grid.

4. Typical Application Scenarios

Thermal Power Plants: In coal-fired, gas-fired, or oil-fired power plants, the IS200EXHSG3REC controls the excitation of steam turbine generators. It regulates the generator’s reactive power output to meet grid requirements and ensures smooth synchronization with the grid during startup. For example, when a gas turbine generator is brought online, the module adjusts the excitation to match the grid voltage and frequency, enabling safe and efficient parallel operation.

Renewable Energy Systems: In wind farms and solar power plants with synchronous generators, the module manages excitation to optimize power output and grid integration. It compensates for the variable nature of wind and solar energy, adjusting the generator’s reactive power to maintain grid stability. In a wind farm, during periods of fluctuating wind speed, the module ensures the generator’s output remains consistent, reducing stress on the grid.

Industrial Cogeneration: In industrial facilities with on-site cogeneration systems (producing both electricity and heat), the IS200EXHSG3REC controls the generator’s excitation to balance power supply for internal use and export to the grid. It allows the facility to adjust reactive power output based on both internal demand and grid requirements, maximizing energy efficiency and reducing utility costs. For example, a pulp and paper mill can use the module to ensure its generator supplies stable power to both the mill’s machinery and the local grid.

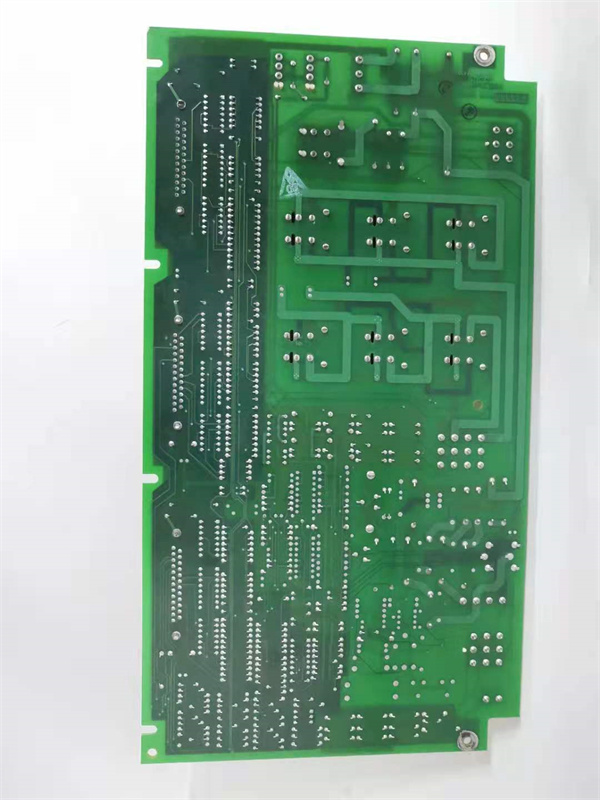

GE IS200EXHSG3REC

5. Related Product Recommendations

GE IS200EXLPG1B: A companion excitation power unit that works with the IS200EXHSG3REC to provide the necessary power to the generator’s field winding. This unit converts AC power to DC for excitation, complementing the control functions of the IS200EXHSG3REC. Together, they form a complete excitation system, ensuring reliable and efficient generator operation.

GE Turbine Control Modules (e.g., IS220UCSAH1A): Integrating the IS200EXHSG3REC with turbine control modules creates a unified control system for combined cycle power plants. The turbine control module manages the turbine’s output, while the excitation module regulates the generator, enabling coordinated operation to maximize efficiency and responsiveness.

GE SCADA Integration Software: This software allows the IS200EXHSG3REC to communicate with centralized SCADA systems, providing real-time data on excitation parameters, alarms, and performance trends. Operators can use this data to optimize maintenance schedules, troubleshoot issues remotely, and ensure compliance with grid regulations.

6. Installation and Maintenance

Installation: Before installation, disconnect power to the control system to prevent electrical hazards. Mount the module in a control cabinet using DIN rail or screw mounts, ensuring proper ventilation to maintain operating temperatures within the specified range. Connect analog inputs (from voltage transformers, current transformers, and sensors) and digital outputs (to excitation equipment) according to the wiring diagram. Configure communication settings (Ethernet/Modbus) to integrate with the existing control network, and perform initial calibration using GE’s configuration software.

Maintenance: Regularly monitor the module’s status via the SCADA system or local HMI, checking for alarms related to voltage, temperature, or communication. Inspect connections quarterly to ensure they are tight and free from corrosion, especially in humid environments. Calibrate analog inputs annually using calibrated test equipment to maintain regulation accuracy. Update firmware periodically using GE’s software tools to access new features and performance improvements. In case of faults, refer to the troubleshooting guide or contact GE technical support for assistance.

7. Service and Support

GE provides a 12-month warranty for the IS200EXHSG3REC, covering manufacturing defects and component failures under normal operating conditions. Their global technical support team offers 24/7 assistance for installation, configuration, and troubleshooting, with access to online resources such as user manuals, technical bulletins, and software updates. For critical applications, GE offers extended warranty options and on-site service agreements, ensuring minimal downtime and optimal performance of the excitation control system.
