Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | HIMA B5233-1H51q-HS |
| Manufacturer | HIMA |
| Product Category | Industrial Safety System |
| Operating Voltage | 24 V DC |
| Input Voltage Range | 24 V DC |
| Output Voltage | 5 V DC |
| Power Supply Modules | 3 x F7126 (24 V/5 V, 10 A each) |
| Redundancy | Triple power supply modules, dual central modules |
| Communication Protocols | Ethernet, Profibus-DP |
| Operating Temperature Range | -25°C to +60°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Dimensions | 19-inch rack, 5 height units |
| Certifications | TÜV Certified, SIL 3, CE Marking |

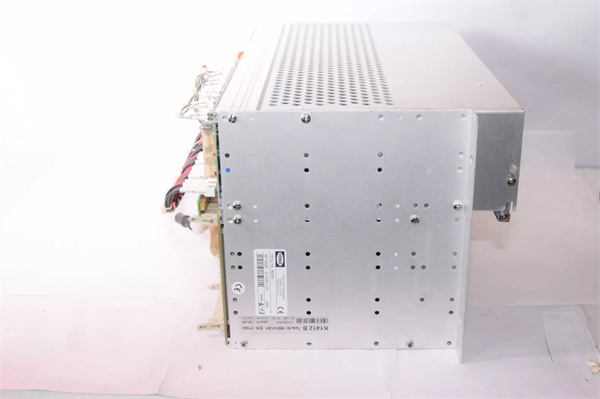

H51Q-HS TYPE B5233-1 19IN 997105233
Product Introduction
The HIMA B5233-1H51q-HS is a high-performance industrial safety system designed for critical applications. It features a modular design with redundant power supply and central modules, ensuring high reliability and safety. This system is widely used in industries such as oil and gas, power generation, and chemical processing。
Core Advantages and Technical Highlights
High Reliability and Safety
The B5233-1H51q-HS features a triple power supply module redundancy and dual central modules, ensuring fail-safe operation. It complies with SIL 3 safety standards and is TÜV certified。
Modular Design
The system includes a 19-inch rack with 5 height units, allowing for flexible installation and integration into existing control systems. It supports up to 10 communication modules and 6 coprocessor modules。
Comprehensive Monitoring
The system includes modules for power supply decoupling and fusing, fan monitoring, and fuse monitoring. It also features watchdog circuits for independent safety shutdown in case of faults。

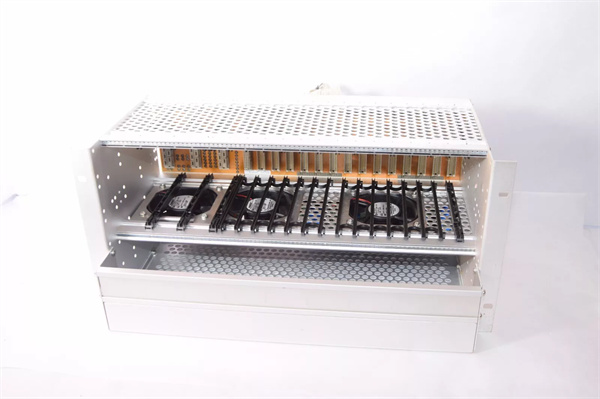

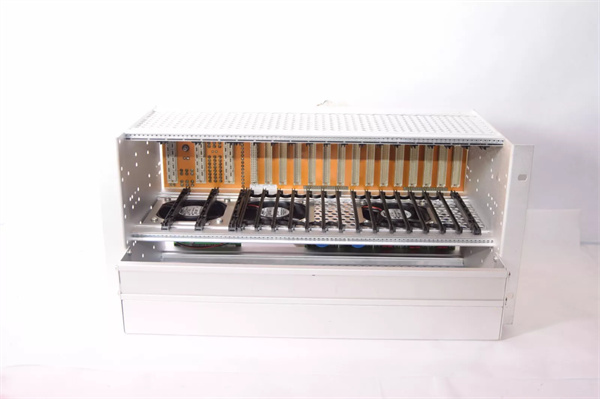

H51Q-HS TYPE B5233-1 19IN 997105233
Typical Application Scenarios
The HIMA B5233-1H51q-HS is widely used in:
-
Oil and Gas: For monitoring and controlling critical processes in oil platforms and pipelines。
-
Power Generation: Ensuring the stable operation of power plants。
-
Chemical Processing: For precise control and safety monitoring in chemical plants。
Related Model Recommendations
-
HIMA F8621A: Coprocessor module for enhanced system performance。
-
HIMA F8627: Ethernet communication module for seamless integration。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input and output cables according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation. Perform annual calibration checks and store calibration data in the module’s flash memory。
Service and Guarantee Commitment
The HIMA B5233-1H51q-HS is backed by a comprehensive warranty and after-sales service commitment. HIMA guarantees the quality of the product and provides reliable technical support and after-sales service to ensure user satisfaction。
