Key Technical Specifications
- Model Number: ABB IMDSM04
- Manufacturer: ABB
- Input Type: Digital discrete (dry contact/PNP/NPN compatible)
- Number of Channels: 4 (individually isolated)
- Supply Voltage: 24V DC ±10%
- Input Voltage Range: 19.2V DC (min) – 28.8V DC (max)
- Input Current: 4mA (typical) per channel
- Response Time: ≤1ms (standard), ≤0.1ms (fast mode)
- Operating Temperature: -25°C to 70°C (-13°F to 158°F)
- Isolation: 500V AC (channel-to-channel, channel-to-backplane)
- Diagnostics: Channel-level short-circuit, overvoltage detection
- Mounting: AC 800M I/O rack (compatible with PM850/PM860/PM861 CPUs)
- Power Consumption: 0.3W (standby), 0.5W (full load)
- Connector Type: Spring-cage terminal block (2-wire per channel)

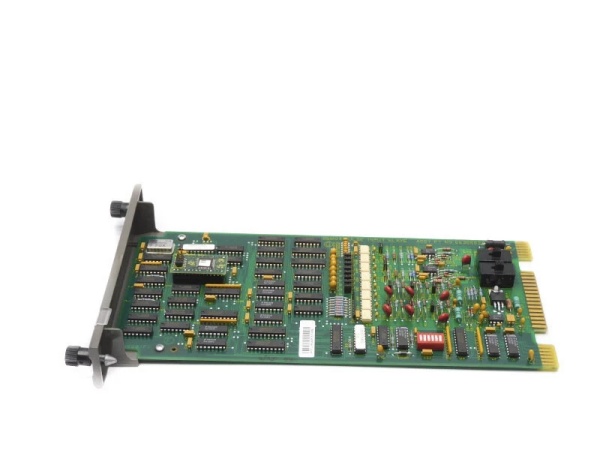

IMDSM04
Field Application & Problem Solved
In process industries—refineries, chemical plants, and pulp mills—reliable monitoring of discrete devices (limit switches, pressure switches, proximity sensors) is make-or-break for safety and efficiency. The challenge? Legacy digital input modules often lack isolation between channels, leading to cross-talk or catastrophic failures if one channel shorts. Others have slow response times that miss critical state changes, or no diagnostic feedback—leaving technicians blind to wiring faults until a process shuts down. The ABB IMDSM04 solves these pain points with isolated channels, fast response, and built-in diagnostics.
You’ll find this module in applications like monitoring valve position switches in oil refinery distillation columns, level sensor triggers in chemical storage tanks, or emergency stop (E-Stop) circuits in paper mill production lines. It’s a workhorse in AC 800M-based control systems, where it interfaces with low-power 24V DC sensors to feed discrete status data to the CPU. In power plant boiler control, it’s used to track the position of damper switches and feedwater pump interlocks—applications where false signals or delayed responses could lead to equipment damage or safety hazards.
Its core value is reliability through isolation and diagnostics. Channel-to-channel isolation prevents a short in one sensor from taking down the entire module, a common issue with non-isolated alternatives. Built-in short-circuit and overvoltage detection flags faults instantly, allowing technicians to resolve issues before they escalate to process downtime. For plant operators, this means fewer unplanned outages and faster troubleshooting—critical in 24/7 process environments where every minute of downtime costs thousands.
Installation & Maintenance Pitfalls (Expert Tips)
- Don’t Mix Sinking/Sourcing Without Checking Polarity: The IMDSM04 works with both sinking (NPN) and sourcing (PNP) sensors, but rookies often mix polarities across channels without verifying wiring. For sinking sensors, connect the sensor’s signal wire to the module’s input terminal and the common to 24V DC positive. For sourcing sensors, reverse this (signal to positive, common to ground). Mixing polarities causes channels to read “stuck on” or “stuck off”—a fault that’s easy to miss during initial testing but leads to incorrect process data.
- Overlook Terminal Torque (Loose Connections = Intermittent Faults): The module uses spring-cage terminals, which don’t require tools, but under-tightening (or over-tightening) is a common mistake. Aim for 0.5–0.6 Nm torque when securing wires—too loose, and vibration in industrial settings will create intermittent connections; too tight, and you’ll damage the terminal’s spring mechanism. Use a torque screwdriver for consistency, especially in high-vibration areas like pump rooms.
- Ignore Diagnostic Feedback in Control Software: The IMDSM04’s diagnostics (short-circuit, overvoltage) are only useful if you configure the AC 800M CPU to monitor them. Rookies often skip this step, leaving faults undetected until a channel fails completely. In Control Builder M, map the module’s diagnostic bits to the CPU’s input area and set up alarms for short-circuit or overvoltage events. This turns passive monitoring into proactive maintenance.
- Skimp on Wire Gauge (Voltage Drop Kills Performance): For long cable runs (over 50 meters), using 22 AWG or smaller wire causes voltage drop, leading to false “off” readings. The module’s minimum input voltage is 19.2V DC—voltage drop below this threshold triggers misreads. Use 18 AWG shielded twisted-pair wire for runs over 50 meters, and keep cables away from high-voltage power lines (minimum 30cm separation) to avoid electromagnetic interference (EMI).

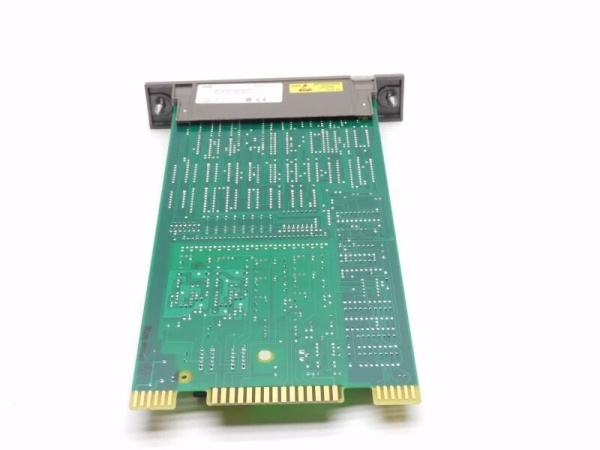

IMDSM04
Technical Deep Dive & Overview
The ABB IMDSM04 is a discrete digital input module designed for integration with ABB’s AC 800M controller series, a staple in process control. It functions as a front-end interface between field sensors (switches, proximity detectors) and the controller’s CPU, converting physical status (on/off) into digital signals the CPU can process. Its key design feature is individual channel isolation—each of the 4 channels is electrically isolated from the others and the backplane, preventing fault propagation and reducing noise interference.
The module draws 24V DC power from the AC 800M I/O rack’s backplane, eliminating the need for external power supplies. Each channel supports both sinking and sourcing sensors, configurable via wiring (no hardware switches), making it flexible for mixed-sensor environments. Response time is adjustable: standard mode (≤1ms) works for most applications, while fast mode (≤0.1ms) is ideal for high-speed processes like packaging lines or conveyor systems where quick state changes matter.
Communication between the module and the AC 800M CPU occurs via the rack’s backplane using ABB’s proprietary I/O bus, which prioritizes real-time data transfer. The module’s diagnostics work by monitoring input current and voltage—if a channel draws excess current (short-circuit) or exceeds 28.8V DC (overvoltage), the module flags the fault and sends a diagnostic signal to the CPU. This data is accessible via Control Builder M software, allowing technicians to identify faulty channels without physically inspecting the module.
Built to ABB’s industrial ruggedness standards, the IMDSM04 withstands extreme temperatures (-25°C to 70°C), vibration (up to 5g), and EMI—critical for harsh environments like refineries or chemical plants. Its compact design (1 slot in the AC 800M rack) maximizes I/O density, allowing plant operators to fit more channels in limited rack space. The spring-cage terminals simplify wiring and reduce installation time, while the module’s hot-swappable capability (when used with compatible racks) enables replacement without shutting down the entire control system—minimizing downtime during maintenance.
