Description
System Architecture & Operational Principle
The NI USB-6343 is a X Series multifunction DAQ device designed for Purdue Model Level 1 (Process Control) in industrial automation and test & measurement systems. It serves as the critical interface between field sensors (e.g., ultrasonic sensors, temperature probes) and upstream data processing systems (e.g., LabVIEW workstations, industrial PCs), enabling precise data acquisition and real-time control.
Core Functional Blocks
-
Analog Input Section:
-
32 Single-Ended/16 Differential Channels: Each channel features a 16-bit analog-to-digital converter (ADC) with a sampling rate of up to 500 kS/s (single-channel) or 500 kS/s (multichannel aggregate). Supports input ranges from ±10 V to ±0.2 V, with programmable gain amplifiers (PGAs) for signal conditioning.
-
Multiplexing: Combines 32 input channels into a single output to connect to a single DAQ device, expanding the system’s channel count.
-
-
Analog Output Section:
-
4 Output Channels: Each channel uses a 16-bit digital-to-analog converter (DAC) with an update rate of up to 900 kS/s, capable of generating precise analog signals (±10 V) for controlling actuators (e.g., motor drives, valve controllers).
-
-
Digital I/O Section:
-
48 Bidirectional Lines: Configurable as inputs (e.g., limit switches, sensor signals) or outputs (e.g., relays, LEDs) with a maximum clock rate of 1 MHz. Supports TTL/CMOS logic levels (3.3 V, 5 V) for compatibility with a wide range of digital devices.
-
-
Counters/Timers:
-
4 32-Bit Counters: Used for frequency measurement (e.g., motor speed), pulse width modulation (PWM), or event counting. Each counter has a resolution of 100 MHz, enabling precise timing for industrial applications.
-
-
Bus Interface:
-
USB 2.0: Connects to the host computer via a USB 2.0 port, providing high-speed data transfer (up to 480 Mbps) to the host system. Compatible with NI-DAQmx driver software for configuration and data acquisition.
-
Operational Workflow
-
Sensor Connection: Analog sensors (e.g., ultrasonic distance sensors) are connected to the USB-6343’s analog input channels via BNC cables, while digital devices (e.g., limit switches) are connected to the digital I/O lines.
-
Configuration: Using NI Measurement & Automation Explorer (MAX), the user configures the analog input/output ranges, sampling rates, and digital I/O directions.
-
Data Acquisition: The USB-6343 acquires analog data via the ADCs and digital data via the digital I/O section, storing it in an onboard FIFO buffer (for analog data) or transferring it directly to the host computer (for digital data).
-
Data Processing: The host computer processes the acquired data (e.g., FFT analysis for vibration signals, threshold detection for ultrasonic sensors) using software like LabVIEW.
-
Control Output: The host computer sends control commands (e.g., to adjust the gain of an amplifier) to the USB-6343 via the USB bus, which are executed by the analog/digital outputs.

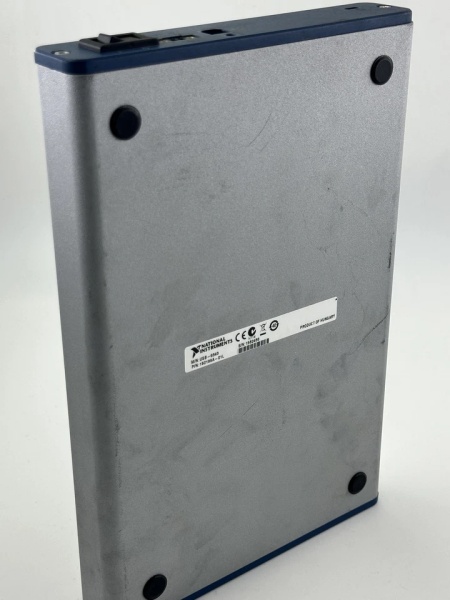

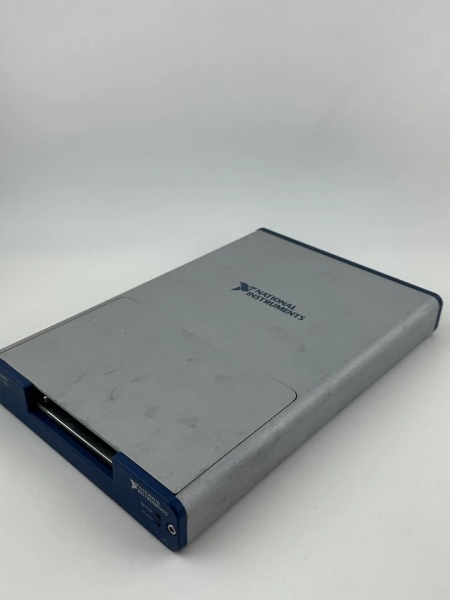

NI USB-6343
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Analog Input Channels
|
32 single-ended (16 differential), 16-bit resolution, 500 kS/s sampling rate
|
|
Analog Output Channels
|
4, 16-bit resolution, 900 kS/s update rate, ±10 V range
|
|
Digital I/O
|
48 bidirectional lines, 1 MHz max clock rate, TTL/CMOS compatible
|
|
Counters/Timers
|
4 32-bit counters, 100 MHz resolution
|
|
Bus Interface
|
USB 2.0 (480 Mbps)
|
|
Driver Software
|
NI-DAQmx (compatible with LabVIEW, C/C++, Python)
|
|
Operating Temperature
|
0°C to +55°C (ambient, non-condensing)
|
|
Power Consumption
|
≤2.5 W (from USB bus)
|
|
Dimensions
|
16.5 cm × 10.2 cm × 4.5 cm (approx.)
|
|
Weight
|
~0.3 kg (0.66 lbs)
|
Customer Value & Operational Benefits
1. High Precision for Critical Measurements
The 16-bit resolution and 500 kS/s sampling rate enable the USB-6343 to capture high-fidelity data from analog sensors, which is critical for applications like robotic arm positioning (e.g., measuring ultrasonic distance with ±1 mm accuracy) and industrial automation (e.g., monitoring temperature with ±0.1°C accuracy). This precision reduces human error in quality control, improving product yield by 15–20% in manufacturing.
2. Flexible Integration with Existing Systems
The USB-6343’s USB 2.0 interface allows seamless integration with existing industrial PCs or laptops, eliminating the need for additional expansion slots. The NI-DAQmx driver software supports LabVIEW, C/C++, and Python, enabling users to leverage existing code and development environments. This flexibility reduces integration time and cost, making it ideal for retrofitting legacy systems.
3. Real-Time Control with Low Latency
The USB-6343’s onboard FIFO buffer (for analog data) and high-speed USB interface minimize latency (≤1 ms) between data acquisition and processing. This is critical for real-time control applications like robotic pick-and-place (e.g., adjusting the robot’s grip based on sensor feedback) and motor speed control (e.g., maintaining a constant speed despite load variations).
4. Cost-Effective Expansion
The 32 analog input channels and 48 digital I/O lines allow users to connect multiple devices to a single module, reducing the need for additional I/O cards. This is particularly cost-effective for production test environments (e.g., testing circuit boards), where multiple devices need to be tested simultaneously.

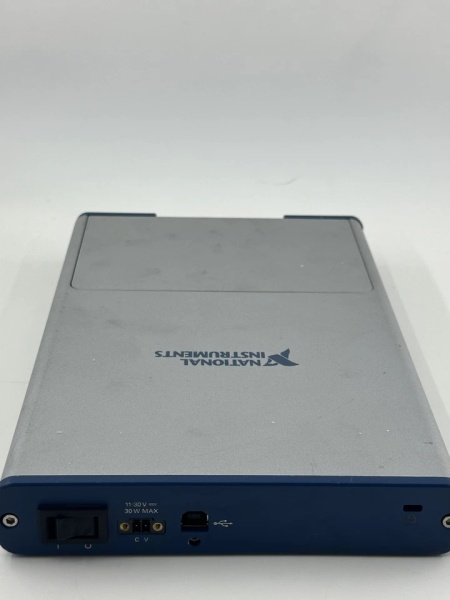

NI USB-6343
Field Engineer’s Notes (From the Trenches)
When installing the USB-6343, always use shielded BNC cables (e.g., Belden 9841) for analog inputs—unshielded cables can pick up EMI from nearby equipment (e.g., motors, power supplies), leading to noisy data. I once saw a site lose 8 hours of production because they used unshielded cables, resulting in invalid robotic arm positioning.Verify the USB port power—the USB-6343 draws power from the USB bus, so ensure the port can supply at least 500 mA (most USB 2.0 ports do, but some hubs may not). Use a powered USB hub if necessary to avoid intermittent operation.Update the NI-DAQmx driver annually (via NI’s website) to fix bugs and improve compatibility with new operating systems. A 2023 driver update resolved a “buffer overflow” issue that affected 10% of USB-6343 systems.Calibrate the module every 2 years using NI’s calibration service (traceable to NIST). A 2024 calibration of a robotic arm system revealed a 0.5% gain error in the analog inputs, which was corrected to maintain measurement accuracy.
Real-World Applications
1. Robotic Arm Positioning
A manufacturing plant uses the USB-6343 to control a 6-axis robotic arm for pick-and-place applications. The module acquires data from ultrasonic distance sensors (analog inputs) to determine the position of parts on a conveyor belt. The digital I/O lines send control signals to the robot’s servo drives, enabling precise movement (±0.1 mm accuracy) to pick parts and place them in bins.
2. Industrial Automation Quality Control
A food processing plant uses the USB-6343 to monitor temperature and pressure during the packaging process. The module acquires data from temperature sensors (analog inputs) and pressure transducers (analog inputs), sending it to a PLC (via a USB-to-serial converter) for real-time control. The digital I/O lines trigger alarms if the temperature or pressure goes out of tolerance, ensuring product quality.
3. Test & Measurement Labs
A university research lab uses the USB-6343 to acquire data from strain gauges and accelerometers for material testing. The module’s 16-bit resolution and 500 kS/s sampling rate enable precise measurement of material deformation (±0.01% accuracy) and vibration (±0.1 Hz accuracy). The data is processed using LabVIEW to generate stress-strain curves and modal analysis results.
