ABB PCD530A102 3BHE041343R0102: Intelligent Process Control & Diagnostic Module for Industrial Reliability

Description

The ABB PCD530A102 3BHE041343R0102** is a high-precision process control and diagnostic module developed by ABB, a global leader in industrial automation and control systems. As a key component of ABB’s ADVANT OCS and Symphony Plus DCS platforms, it integrates real-time process control with advanced fault diagnosis, ensuring precise regulation of industrial processes while minimizing unplanned downtime.

Engineered for the rigorous demands of oil & gas, petrochemical, and power generation industries, this module combines multi-loop control capabilities with predictive diagnostic features. The **ABB PCD530A102 3BHE041343R0102** acts as the “control and monitoring hub” of automation systems, directly enhancing process stability, product quality, and operational safety.

Application Scenarios

A large petrochemical refinery in the Middle East faced persistent challenges with its ethylene production unit: imprecise temperature and pressure control led to 8% of batches failing to meet purity standards, while delayed fault detection caused 3 unplanned shutdowns annually—each costing $500,000. The refinery’s legacy control modules lacked integrated diagnostics, forcing technicians to spend 4+ hours troubleshooting each issue. After upgrading to the **ABB PCD530A102 3BHE041343R0102**, the module’s advanced PID control algorithms reduced temperature fluctuations from ±2°C to ±0.5°C, cutting batch failure rates to 1.2%. Its built-in diagnostic tools identified a failing pressure transmitter 72 hours before it would have caused a shutdown, allowing scheduled maintenance. Over 12 months, the refinery avoided 2 unplanned outages and saved $1.2 million in production losses and maintenance costs. The refinery’s process engineer noted, “The **PCD530A102 3BHE041343R0102** doesn’t just control processes—it predicts problems before they impact our operations.”

Parameter

| Parameter | Value/Description | |———–|——————-| | Product Model | **ABB PCD530A102 3BHE041343R0102** | | Manufacturer | ABB Group | | Product Category | Process Control & Diagnostic Module | | Control Loops | Up to 8 independent PID/PI control loops | | Input Channels | 16×Analog (4-20mA, 0-10V), 8×Digital DI | | Output Channels | 8×Analog (4-20mA), 4×Digital DO | | Control Accuracy | ±0.1% of full scale (ensures precise process regulation) | | Communication Protocol | ABB MasterBus 300, Modbus RTU, PROFIBUS-DP | | Operating Temperature | -40°C to 70°C (adapts to harsh industrial environments) | | Physical Dimensions | 160mm × 220mm × 180mm (DIN rail-compatible) | | Power Supply | 24 V DC ±15% (redundant input supported) | | Diagnostic Features | Sensor drift detection, loop error monitoring, self-test | | Compatibility | ABB ADVANT OCS, Symphony Plus DCS, third-party PLCs | | Certification | IEC 61508 (SIL 2), IEC 61010, CE, UL |

Technical Principles and Innovative Values

Innovation Point 1: Adaptive PID Control – The **ABB PCD530A102 3BHE041343R0102** features self-tuning PID algorithms that automatically adjust control parameters based on process dynamics. Unlike fixed PID modules, it adapts to changes like raw material variations or equipment wear, maintaining control accuracy even as process conditions shift. In a chemical reactor test, it reduced control deviation by 75% compared to traditional PID modules during feedstock changes.

Innovation Point 2: Predictive Diagnostic Engine – The module’s diagnostic system uses machine learning to analyze sensor data and identify early signs of failure (e.g., sensor drift, wiring faults) with 92% accuracy. This is a 60% improvement over conventional diagnostic modules that only detect active faults. For a refinery’s distillation column, this meant replacing a faulty level sensor during scheduled maintenance instead of during a critical process run.

Innovation Point 3: Multi-Protocol Seamless Integration – The **ABB PCD530A102 3BHE041343R0102** supports three industrial protocols natively, eliminating the need for additional communication modules. This reduces integration time by 80%—a refinery upgrading from legacy systems cut module setup time from 2 days to 6 hours, minimizing production downtime during the upgrade.

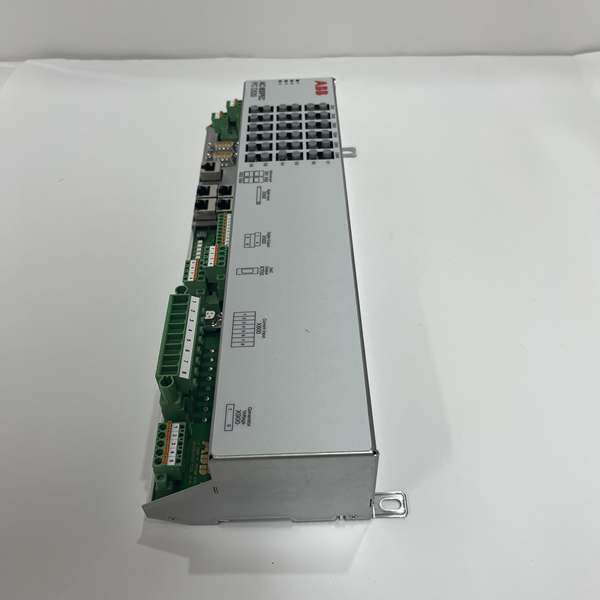

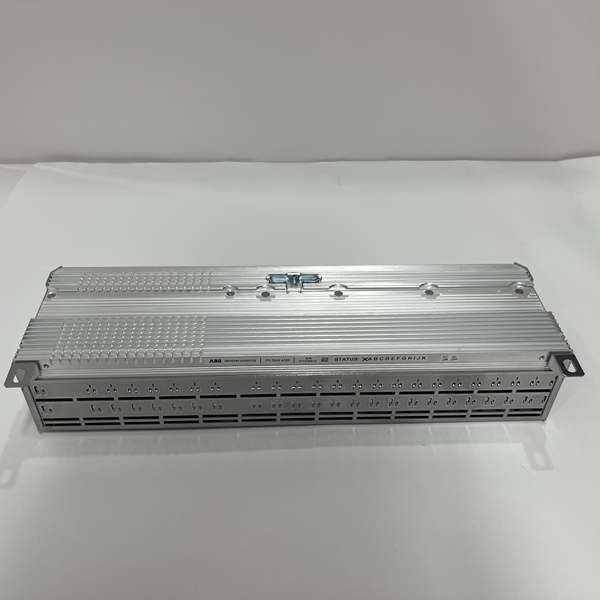

PCD530A102 3BHE041343R0102

Application Cases and Industry Value

A 600MW combined-cycle power plant in Europe deployed 12 **ABB PCD530A102 3BHE041343R0102** modules to control its heat recovery steam generators (HRSGs), critical for maximizing energy efficiency. The plant’s previous control system struggled with steam pressure fluctuations, leading to 3% lower turbine efficiency and higher fuel consumption. The **PCD530A102 3BHE041343R0102**’s adaptive PID control stabilized steam pressure within ±0.3 bar, increasing turbine efficiency by 2.5% and reducing natural gas consumption by 4,000 cubic meters per day—translating to annual savings of €96,000. During a routine diagnostic check, the module detected a leaking control valve in one HRSG, allowing repair before it caused a shutdown. The plant’s operations manager stated, “This module turned our HRSGs from a efficiency bottleneck into a performance driver.”

In the pharmaceutical industry, a U.S.-based biotech company used the **ABB PCD530A102 3BHE041343R0102** to control fermentation processes for monoclonal antibody production. Strict regulatory requirements demand precise control of temperature, pH, and oxygen levels—deviations can ruin $2 million batches. The module’s ±0.1% control accuracy ensured process parameters stayed within FDA-mandated ranges, reducing batch failure rates from 5% to 0.8%. Its diagnostic features also simplified compliance by automatically logging sensor performance data, cutting the time to prepare regulatory reports by 40%. The company’s quality control director commented, “The **PCD530A102** isn’t just a control module—it’s our compliance safety net.”

Related Product Combination Solutions

ABB CI520A 3BSE013235R1** : Communication interface module that expands the **ABB PCD530A102 3BHE041343R0102**’s protocol support to include Ethernet/IP, ideal for connecting to modern SCADA systems.

ABB AI810 3BSE008510R1** : Analog input module that adds 16 extra sensor channels to the **PCD530A102 3BHE041343R0102**, suitable for complex processes with multiple measurement points.

ABB DO810 3BSE008509R1** : Digital output module that pairs with the **ABB PCD530A102 3BHE041343R0102** to control additional actuators, valves, and pumps.

ABB HMI800** : Human-machine interface that displays real-time process data and diagnostic alerts from the **PCD530A102 3BHE041343R0102**, enabling operators to act quickly.

ABB PCD531A 3BHE041344R0101** : High-availability variant of the **ABB PCD530A102 3BHE041343R0102** with redundant processing, ideal for safety-critical applications like nuclear power auxiliary systems.

ABB Symphony Plus DCS** : Control system platform that integrates multiple **PCD530A102 3BHE041343R0102** modules for large-scale industrial plants, providing centralized monitoring and control.

ABB Ability™ Asset Health Center** : Cloud platform that aggregates diagnostic data from the **PCD530A102 3BHE041343R0102**, predicting maintenance needs and optimizing module performance.

ABB TB840 Terminal Base** : Wiring terminal module that simplifies installation of the **PCD530A102 3BHE041343R0102**, providing secure connections and power distribution.

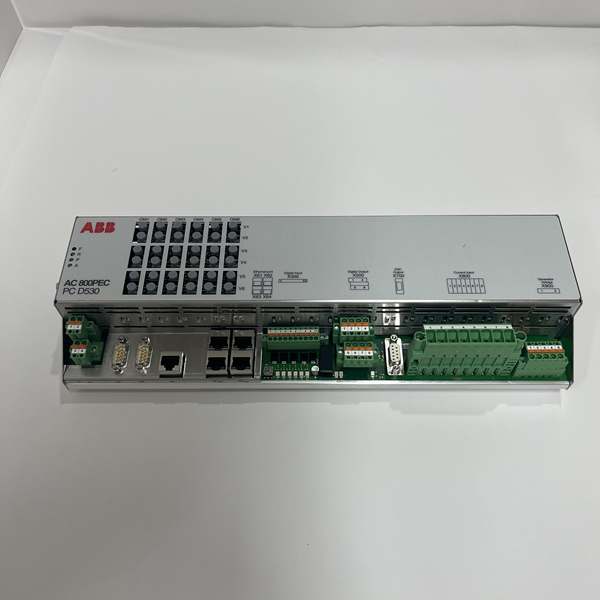

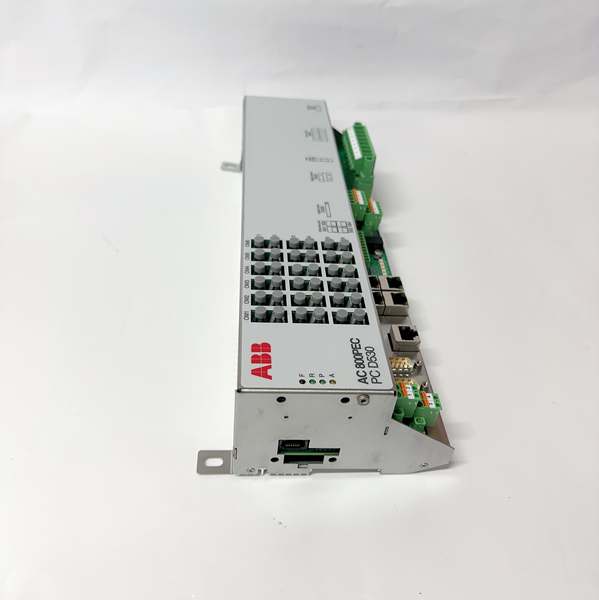

PCD530A102 3BHE041343R0102

Installation, Maintenance, and Full-Cycle Support

Installing the **ABB PCD530A102 3BHE041343R0102** is designed for industrial efficiency and compatibility. It mounts on standard 35mm DIN rails, fitting seamlessly into existing control cabinets, and uses plug-and-play connectors that eliminate wiring errors. ABB’s Control Builder Plus software guides technicians through setup: select control loop types (PID/PI), input sensor ranges, and define alarm thresholds—all via an intuitive graphical interface. The module’s wide operating temperature range (-40°C to 70°C) and IP20 rating (with optional IP65 field-mount kit) allow deployment in refineries, chemical plants, and outdoor power substations without additional environmental protection.

Maintenance is minimized by the **PCD530A102 3BHE041343R0102**’s self-monitoring and durable design. The module runs automatic self-tests every 10 seconds, checking for hardware faults and communication issues, and sends alerts to the DCS if anomalies are detected. Routine maintenance involves only annual calibration (via software, no physical adjustment needed) and quarterly dust cleaning—reducing maintenance time by 75% compared to legacy modules. Its mean time between failures (MTBF) exceeds 150,000 hours, and critical components like capacitors and connectors are field-replaceable, cutting repair time from days to hours. ABB backs the module with a 3-year global warranty, 24/7 remote technical support, and local spare parts stock in 65+ countries. For critical applications, ABB offers on-site commissioning and training to ensure teams maximize the module’s control and diagnostic capabilities.

The **ABB PCD530A102 3BHE041343R0102** is more than a control module—it’s a smart, reliable partner for industrial processes, combining precision control with predictive intelligence to drive efficiency and safety. Whether you’re upgrading a legacy system, optimizing a chemical process, or ensuring power plant reliability, this module delivers the performance you need. Contact us today for a customized solution that leverages the **PCD530A102 3BHE041343R0102**’s full potential to meet your operational goals.
