Yokogawa NFCP502-W05 | CENTUM VP/ProSafe-RS CPU Module – Specifications & Industrial Integration Guide

Description

System Architecture & Operational Principle

• I/O Modules: Collects data from field devices (e.g., sensors, actuators) and sends control signals.
• HMI/Engineering Stations: Provides real-time process data to operators and allows engineers to configure the system.
• Communication Networks: Uses Vnet/IP (Yokogawa’s proprietary protocol) for high-speed communication with other CENTUM VP components.

Operational Workflow

1. Data Collection: I/O modules send field data (e.g., temperature, pressure) to the NFCP502-W05 via the control bus.
2. Logic Execution: The CPU executes control logic (e.g., PID loops) to determine the required control actions.
3. Signal Output: The CPU sends control signals to I/O modules, which forward them to field devices (e.g., valves, motors).
4. Communication: The CPU exchanges data with HMI/engineering stations for monitoring and configuration.

Advantages Over Legacy Modules

• Higher Performance: 32-bit/64-bit CPU handles complex control logic faster than older 16-bit modules.
• Redundancy: Supports dual CPU configuration for fault tolerance (seamless switchover if the primary CPU fails).
• Scalability: Compatible with a wide range of I/O modules (analog/digital, high-density/low-density) for flexible system expansion.

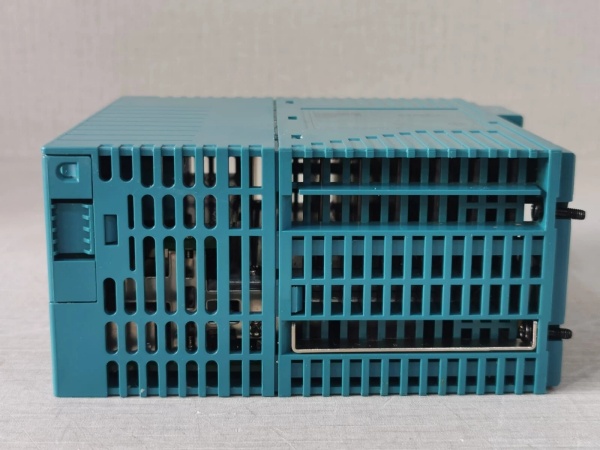

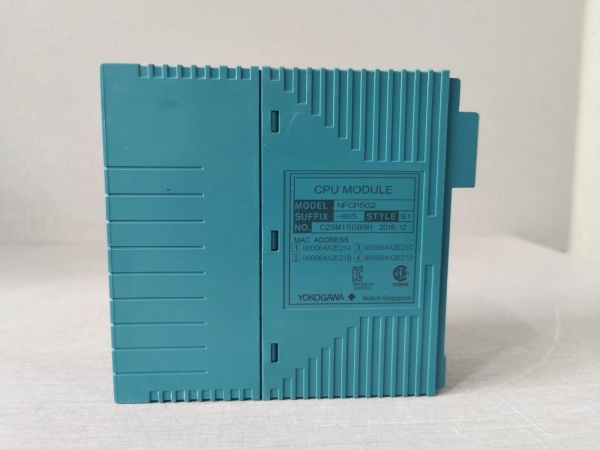

  YOKOGAWA NFCP502-W05

Core Technical Specifications

Customer Value & Operational Benefits

The module’s hot-swappable design allows technicians to replace it without shutting down the system. A refinery using the module reduced maintenance downtime by 50% compared to legacy non-hot-swappable modules.

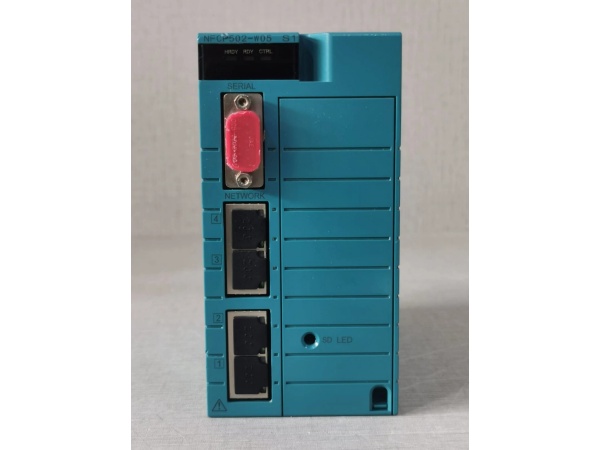

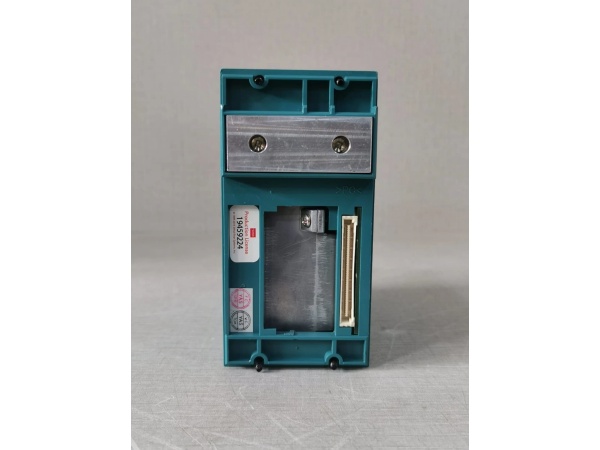

YOKOGAWA NFCP502-W05

Field Engineer’s Notes (From the Trenches)

When installing the NFCP502-W05, always verify the Vnet/IP network configuration—incorrect IP addresses or subnet masks can prevent communication with HMI/engineering stations. I once saw a site where a technician misconfigured the IP address, resulting in a 2-hour delay in system startup. Using Yokogawa’s CENTUM VP Configuration Tool​ to verify the network settings fixed the issue immediately.

Another gotcha: check the ECC memory status—the module’s ECC memory detects and corrects single-bit errors, but if multiple errors occur, it may indicate a hardware fault. Use the CENTUM VP Diagnostic Tool​ to monitor the ECC memory status regularly (e.g., weekly) to prevent unexpected failures.

If the module’s “FAULT” LED illuminates, check the CPU load—high CPU utilization (above 80%) can cause the module to enter a fault state. Use the CENTUM VP Performance Monitor​ to identify and optimize resource-intensive control logic (e.g., complex PID loops).

Real-World Applications

• Chemical Manufacturing:
  A chemical plant uses the NFCP502-W05 to control its batch reactor process. The module executes PID loops to maintain the reactor temperature and pressure, ensuring consistent product quality. The redundant configuration ensures that the process remains stable even if the primary CPU fails.
• Power Generation:
  A power plant uses the NFCP502-W05 to control its boiler-turbine system. The module collects data from temperature and pressure sensors and sends control signals to valves and motors, optimizing the steam flow and turbine speed. The high-performance CPU enables faster response to load changes, improving energy efficiency by 15%.
• Water Treatment:
  A water treatment plant uses the NFCP502-W05 to control its filtration and disinfection processes. The module monitors the turbidity and chlorine levels and adjusts the flow rates of chemicals and water, ensuring compliance with environmental regulations. The hot-swappable design allows technicians to replace the module without interrupting the treatment process.

High-Frequency Troubleshooting FAQ

• CPU Overload: The CPU utilization is above 80% (check the CENTUM VP Performance Monitor);
• ECC Memory Error: Multiple bit errors in the ECC memory (replace the module);
• Network Communication Failure: Loss of communication with HMI/engineering stations (verify the Vnet/IP configuration).

1. Install the Secondary CPU: Insert the secondary NFCP502-W05 into the Control Station (adjacent to the primary CPU).
2. Configure the Network: Use the CENTUM VP Configuration Tool​ to set up the Vnet/IP network for redundant communication (assign unique IP addresses to each CPU).
3. Enable Redundancy: In the CENTUM VP System Manager, enable the redundant configuration and specify the switchover criteria (e.g., CPU fault, communication loss).

1. Network Cable: Ensure the Ethernet cable is connected to the correct port (Port 1 on the NFCP502-W05);
2. IP Address: Verify the HMI’s IP address matches the NFCP502-W05’s IP address (e.g., 192.168.1.100);
3. Protocol: Ensure the HMI is using the Vnet/IP protocol (not Modbus TCP/IP).
