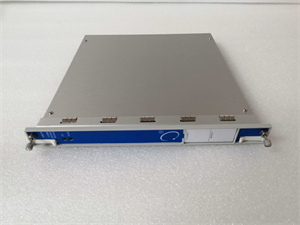

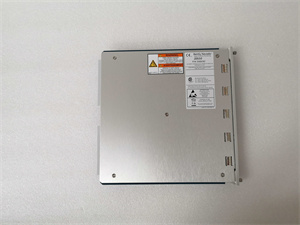

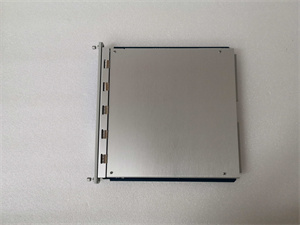

BENTLY 136180-01

Product introduction

The 136180-01 from Bently Nevada is the standard production variant of the 3500/92 system interface module, serving as the primary configuration and management hub for 3500 Machinery Protection Systems. This precision-engineered module acts as the critical bridge between engineering workstations and the diverse components within 125744-02 racks, enabling comprehensive system setup, parameter adjustment, and diagnostic data retrieval. As the most widely deployed variant of the 3500/92 series, 136180-01 provides the essential programming interface that ensures all connected modules operate with synchronized configurations and coordinated protection logic.

Bently Nevada’s 136180-01 module is designed to simplify the complexity of configuring and managing machinery protection systems. It enables engineers to define monitoring parameters, establish alarm thresholds, program control logic, and manage data flow across the entire system. By centralizing these functions, 136180-01 ensures configuration consistency, simplifies maintenance, and supports efficient troubleshooting, making it an indispensable component in power generation, oil and gas, and manufacturing applications where reliable machinery protection is critical.

Core advantages and technical highlights

Centralized system configuration: 136180-01 provides a single access point for configuring all connected 3500 components, eliminating the need for individual module programming. This centralized approach ensures parameter consistency across 125712-01 I/O modules, 140734-01 communication gateways, and other system components, reducing configuration errors and simplifying the implementation of complex protection strategies.

Dual-interface flexibility: Equipped with both Ethernet and USB connectivity, 136180-01 offers versatile access options for system programming and diagnostics. Ethernet enables remote configuration from engineering workstations, while the USB port provides direct local access for initial setup, troubleshooting, or configuration backup/restore operations when network connectivity is unavailable.

Comprehensive diagnostic capabilities: The module continuously monitors and records key system health metrics, including backplane communication status, module operating temperatures, and power supply integrity across the rack. This diagnostic data is readily accessible through configuration software, enabling proactive identification of potential issues before they affect protection system performance.

Configuration persistence: 136180-01 maintains system configurations in secure non-volatile memory, ensuring critical protection settings are preserved through power cycles and system shutdowns. This feature minimizes recovery time following interruptions and ensures consistent system operation regardless of power conditions.

Typical application scenarios

In power generation facilities, 136180-01 modules installed in 125744-02 racks serve as the configuration center for turbine protection systems. Engineers use these modules to program protection logic that coordinates 125712-01 I/O modules monitoring bearing temperatures with vibration sensors connected via 136711-01 cables. The Ethernet interface enables remote access for configuration adjustments during system optimization, while the USB port provides local access for initial setup and troubleshooting in turbine control rooms.

Oil and gas processing plants utilize 136180-01 to configure compressor train protection systems. The module facilitates the integration of pressure, temperature, and vibration measurements from various sensors, enabling engineers to establish cascaded alarm levels that account for process conditions. Its centralized configuration capabilities ensure consistent protection logic across multiple compressor stations, simplifying training and maintenance procedures.

Manufacturing facilities deploy 136180-01 to standardize protection configurations across production lines. The module enables the creation of template configurations that can be deployed to identical machinery protection systems, ensuring consistent monitoring and alarm behavior across the plant. Its diagnostic capabilities support centralized system health monitoring, helping maintenance teams identify configuration issues between 125712-01 modules and other system components before they impact production.

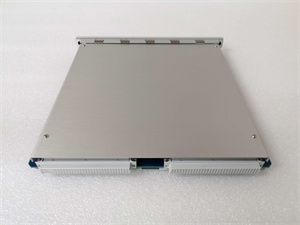

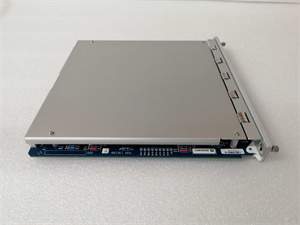

BENTLY 136180-01

Related model recommendations

3500/92: Base system interface series that includes the 136180-01 variant.

125744-02: Rack assembly that houses and powers the 136180-01 module.

125712-01: I/O module configured and monitored through 136180-01.

140734-01: Communication gateway whose parameters are managed via 136180-01.

136711-01: Sensor cable whose connected devices are configured through 136180-01.

3500/60 163179-01: Display module whose visualization settings are configured through 136180-01.

3500 System Configuration Software: Essential tool for programming 136180-01 and connected modules.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing 136180-01, verify compatibility with the target 125744-02 rack firmware version. Ensure the rack has an available slot and that the system power supply can accommodate the additional load. Gather required tools including a torque screwdriver, laptop with 3500 configuration software, and Ethernet/USB cables. Inspect the module for shipping damage, particularly checking communication ports and backplane connectors.

Maintenance suggestions: Include 136180-01 in quarterly system checks, verifying communication status with both the rack backplane and configuration software. Implement monthly configuration backups to prevent data loss. During scheduled maintenance, compare current configurations with approved baselines using configuration software to detect unintended changes. Keep module firmware updated to support the latest features of connected components like 125712-01 and 140734-01. Clean communication ports annually with approved electronic contact cleaner to maintain reliable connections.

Service and guarantee commitment

Bently Nevada provides 136180-01 with a 36-month warranty covering manufacturing defects and performance issues under normal operating conditions, including communication reliability, configuration storage, and interface functionality. Our technical support team offers expert guidance on system configuration, software integration, and troubleshooting with connected components.

We offer specialized training on 136180-01 programming, configuration management, and diagnostic procedures specific to industrial applications. Beyond the warranty period, our service agreements include technical support, firmware updates, and expedited replacement services to minimize system downtime. Bently Nevada’s commitment to quality ensures reliable performance of 136180-01 throughout its operational lifecycle, backed by our global network of service professionals.
