Name: Bently 149992-01 | 3500/33 Series 16-Channel Relay Output Module - Specifications & Manual - XINYEDA
Brand: Bently Nevada

Description

System Architecture & Operational Principle

The Bently 149992-01 is a 16-channel relay output module within the Bently Nevada 3500 Series Machinery Protection System, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the rear slot of the 3500 rack (full-height) and serves as the bridge between 3500/33 series logic modules (which process vibration, temperature, or speed signals) and external control systems (e.g., emergency shutdown solenoids, alarm annunciators, motor starters).

Upstream Communication

Receives digital signals from 3500/33 series modules via the rack’s backplane. These signals represent:

Alarm Conditions: e.g., “vibration exceeds trip threshold” (from 3500/40M vibration monitors).
Interlock Commands: e.g., “isolate faulty compressor” (from 3500/45 position monitors).

Downstream Communication

Transmits relay outputs to external devices to initiate actions:

Emergency Shutdown (ESD): Triggers solenoids to shut down turbines, compressors, or pumps during critical faults (e.g., overspeed, bearing failure).
Alarm Annunciation: Activates lights, horns, or SCADA alerts to notify operators of non-critical faults (e.g., high vibration, low lubrication pressure).
Equipment Control: Starts/stops motors, opens/closes valves, or resets fault states.

Operational Advantages

High Channel Density: 16 relays in a single rear slot maximize the 3500 rack’s footprint efficiency, reducing the number of modules needed for complex control tasks.
Independent Programming: Each relay channel can be configured via 3500 Rack Configuration Software for custom logic (e.g., AND/OR voting, normally open/closed states), allowing flexible adaptation to different applications.
Fast Response Time: ≤10 ms relay switching ensures immediate action to critical fault signals, minimizing equipment damage risks (e.g., turbine blade failure).

Core Technical Specifications

Attribute	Specification
Number of Channels	16 independent relay channels
Relay Type	Single-Pole, Double-Throw (SPDT, Form C)
Contact Rating	5A @ 250VAC (resistive); 30VDC (resistive); Max 2A DC / 5A AC (inductive)
Response Time	≤10 ms (typical)
Power Supply	Powered via 3500 rack backplane (24 VDC)
Operating Temperature	-40°C to +85°C (-40°F to 185°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Humidity Tolerance	0%–95% non-condensing
Vibration Resistance	20g peak at 2kHz
Shock Resistance	30g peak
Contact Life	100,000 cycles at rated load
Termination Style	Euro-style screw terminals (field wiring connection)
Certifications	CE, UL, CSA, ATEX/IECEx (hazardous locations)

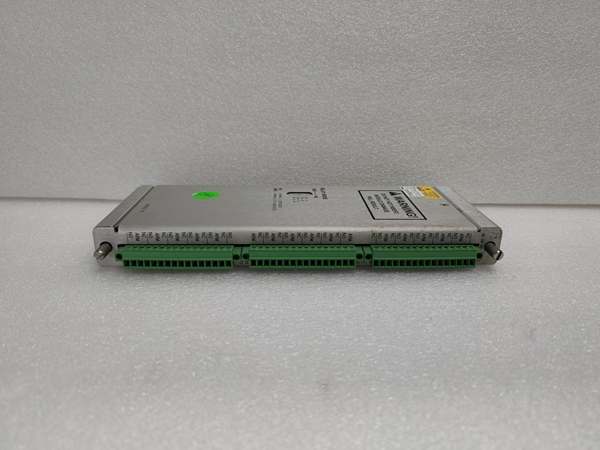

Bently 149992-01

Customer Value & Operational Benefits

Enhanced Machinery Safety

The 149992-01’s relay outputs are the final link between condition monitoring and machine safety. For example, a 600MW thermal power plant used the module to trigger turbine trip relays within 8ms of detecting a bearing vibration over-limit, avoiding a $500,000 unplanned shutdown.

Flexible Control Logic

With 16 independently programmable channels, the module supports complex voting logic (e.g., 2-out-of-3 for critical faults), preventing nuisance trips while ensuring safety. A refinery deployed the module to control compressor valve interlocks, isolating only the faulty unit during a minor fault and maintaining 80% of production capacity.

Seamless Integration with 3500 Series

Plug-and-play compatibility with 3500 series racks simplifies installation and reduces commissioning time by 30%. The module’s rear-slot design fits standard 3500 rack slots, ensuring easy system expansion.

Harsh-Environment Durability

The -40°C to +85°C operating range and anti-vibration/shock design enable reliable operation in extreme industrial sites (e.g., offshore oil platforms, desert power plants). A steel mill integrated the module to switch motor start/stop relays, improving equipment uptime by 35%.

Field Engineer’s Notes (From the Trenches)

When installing the 149992-01, always verify the rack slot requirements—the module occupies 1 full-height rear slot. I once saw a site where a contractor tried to install it in a front slot, resulting in bent pins and a 2-hour downtime. Use the 3500 Rack Layout Guide to plan slot assignments.

Another gotcha: check the relay logic configuration—use the 3500 Rack Configuration Software to verify that each relay’s “normally open (NO)” or “normally closed (NC)” state matches the application requirements. A power plant once had a false trip because a relay was configured for NO instead of NC, causing it to trigger when power was lost.

If the module’s “CH Alarm” LED is red, check the upstream 3500/33 module—the relay module is just acting on signals from the logic module. Use the 3500 software to view the 3500/33’s alarm status and ensure it’s not a false positive (e.g., a loose sensor wire).

Real-World Applications

Power Generation: Steam Turbine Protection

A 600MW thermal power plant uses the 149992-01 to trigger 12 turbine trip relays and 4 lubrication pump start relays. The module detected a bearing vibration over-limit and activated the trip relay within 8ms, avoiding a $500,000 unplanned shutdown.
Petrochemical: Compressor Interlock

A refinery deployed the 149992-01 to control 16 compressor valve interlocks. Its independent channel programming ensured that only the faulty unit was isolated, maintaining 80% of production capacity during a minor fault.
Steel Mill: Motor Control

A steel mill integrated the 149992-01 to switch 10 motor start/stop relays and 6 alarm horns. Its fast response minimized motor damage from voltage surges, improving equipment uptime by 35%.

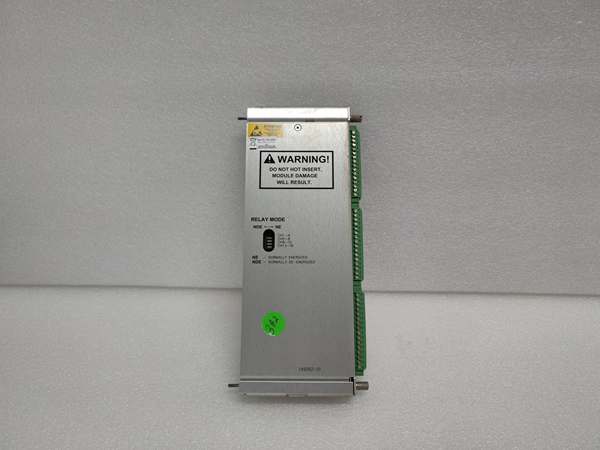

Bently 149992-01

High-Frequency Troubleshooting FAQ

Q: What does the “OK” LED indicate on the 149992-01?

A: The green “OK” LED indicates that the module is receiving power from the 3500 rack and communicating with the 3500/33 logic module. If it’s off, check the rack’s power supply (3500/15) and the module’s connection to the backplane.

Q: Can the 149992-01 be used with non-3500 systems?

A: No, the module is designed exclusively for Bently Nevada 3500 Series systems. It relies on the 3500 rack’s backplane for power and communication, so using it with non-3500 systems will result in compatibility issues.

Q: How do I replace the 149992-01?

A: Follow these steps:

Power Down: Turn off the 3500 rack’s main power supply.
Remove Old Module: Unscrew the module from the rear slot (use a Phillips screwdriver).
Install New Module: Secure the new 149992-01 to the rack and tighten the screws.
Power Up: Turn on the main power supply and verify the module’s operation (check the “OK” LED).

Q: Why is the 149992-01 not triggering the relay?

A: Check three things first:

Upstream Signal: Ensure the 3500/33 logic module is sending a trip signal (use the 3500 software to view the logic module’s status).
Relay Logic: Verify that the relay’s “NO/NC” configuration matches the application requirements.
Wiring: Check the external wiring for loose connections or incorrect polarity (use a multimeter to test continuity).
