Name: Bently 176449-08 | 3500/72M Series 4-Channel Rod Position Monitor - Specifications & Manual - XINYEDA
Brand: Bently Nevada

Description

System Architecture & Operational Principle

The Bently 176449-08 is a 4-channel rod position monitor module within the Bently Nevada 3500/72M Series, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the 3500/72M Series rack (typically in Slots 3–14, adjacent to relay or communication modules) and serves as the bridge between proximity transducers (e.g., 3300 XL series) and higher-level systems (e.g., DCS, SCADA).

Upstream Communication

Receives raw signals from up to four proximity transducers via the 3500 rack’s backplane. These transducers measure the position of reciprocating rods (e.g., in compressors) by detecting changes in eddy currents induced by the moving rod.

Downstream Communication

Transmits processed data (e.g., rod position, rod drop) to:

3500 Series Relay Modules (e.g., 3500/32): Trigger alarms or shutdowns if parameters exceed thresholds (e.g., “rod drop > 0.5 inches”).
External Systems (e.g., Emerson DeltaV, Siemens S7-1500): Send real-time data for monitoring or analytics via Modbus TCP/IP or proprietary protocols.

Operational Advantages

High Precision: Measures rod position with ±0.33% typical accuracy, critical for detecting incipient faults (e.g., rod wear, misalignment).
Hot-Swappable Design: Can be replaced without shutting down the 3500 system, minimizing downtime during maintenance.
API Compliance: Meets API 618 (American Petroleum Institute standard for reciprocating compressors), ensuring it meets the rigorous requirements of oil & gas applications.

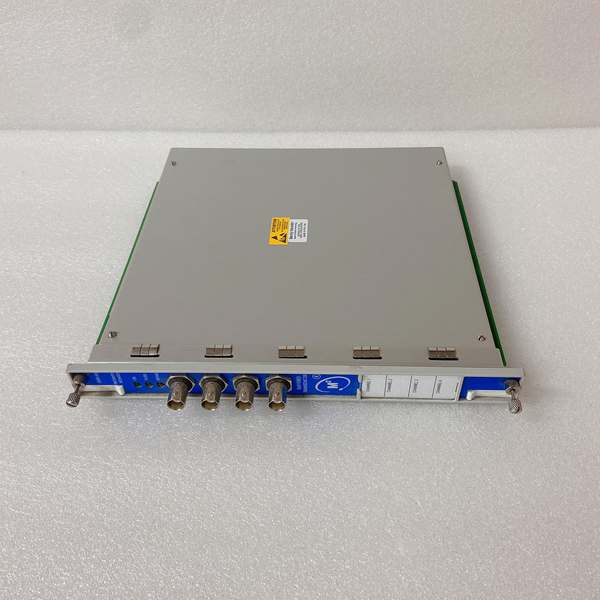

BENTLY 176449-08

Core Technical Specifications

Attribute	Specification
Channel Count	4 independent channels
Input Type	Proximity transducer signals (3300 XL series)
Measurement Parameters	Rod position, rod drop, hyper-compressor displacement
Accuracy	±0.33% typical, ±1% max (excluding filters)
Power Supply	24 VDC (from 3500 rack)
Operating Temperature	-30°C to +65°C (-22°F to 149°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Dimensions (W×H×D)	241.3 mm × 24.4 mm × 241.8 mm (9.50 in × 0.96 in × 9.52 in)
Weight	0.91 kg (2.0 lbs)
Certifications	CE, UL, CSA, ATEX, API 618
Compatibility	3500/72M Series racks; works with 3500/20 RIM for communication

Customer Value & Operational Benefits

Enhanced Machinery Protection

The 176449-08’s high-precision measurements enable early detection of incipient faults (e.g., rod wear, misalignment), preventing catastrophic failures and reducing unplanned downtime. For example, an oil refinery using the module to monitor a reciprocating compressor can detect abnormal rod drop and shut down the compressor before damage occurs.

Seamless Integration with 3500 Series

As a core component of the 3500/72M Series, the 176449-08 integrates seamlessly with other 3500 modules (e.g., 3500/32 relays, 3500/92 communication gateway). This eliminates the need for custom wiring or protocol converters, reducing integration time and costs.

Reduced Maintenance Costs

The hot-swappable design allows technicians to replace a faulty module in minutes without interrupting the 3500 system’s operation. This minimizes labor costs and production losses—critical for facilities with tight maintenance budgets.

Compliance with Industry Standards

The module’s compliance with API 618 ensures it meets the rigorous requirements of oil & gas applications, making it a trusted choice for reciprocating compressor protection.

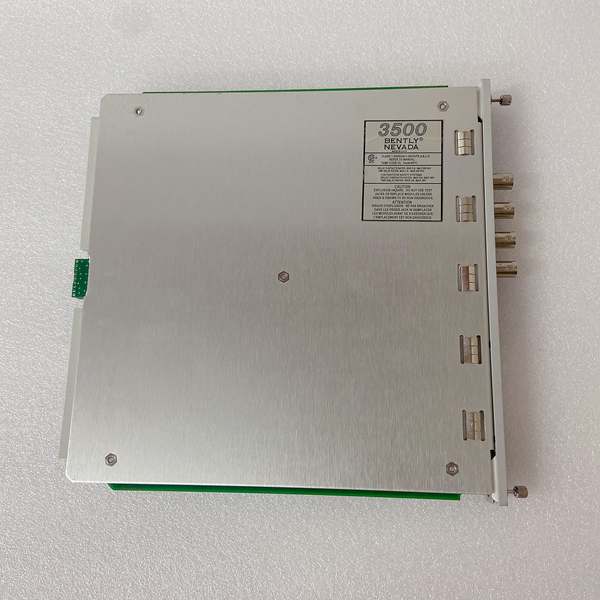

BENTLY 176449-08

Field Engineer’s Notes (From the Trenches)

When installing the 176449-08, always verify the proximity transducer gap—the gap between the transducer and the rod must be set to the manufacturer’s specification (typically 0.5–1.0 mm for 3300 XL transducers). An incorrect gap will cause the module to misinterpret signals, leading to false alarms. I once saw a site where a contractor set the gap too wide, resulting in missed faults and a damaged compressor.

Another gotcha: ground the module properly—the 3500 system’s IP65 rating requires a proper ground connection to protect against electric shock and EMI. I’ve fixed countless “ghost” faults (e.g., random communication drops) by ensuring the module’s ground wire is connected to the cabinet’s earth ground.

If the module’s “FAULT” LED is red, check the transducer wiring—loose or reversed wires are a common cause of faults. Use a multimeter to test for continuity between the transducer and the module’s input terminals. Also, ensure the transducer’s shield is grounded to the 3500 rack’s earth ground to reduce EMI.

Real-World Applications

Oil & Gas: Reciprocating Compressor Protection

An offshore oil platform uses the 176449-08 to monitor a reciprocating compressor’s rod position. The module processes signals from four 3300 XL proximity transducers (installed on the compressor’s rod) and transmits data to a Siemens S7-1500 PLC via Modbus TCP/IP. The PLC uses this data to adjust the compressor’s inlet guide vanes, preventing surge events.
Chemical Processing: Pump Rod Monitoring

A chemical plant uses the 176449-08 to monitor a pump’s rod position. The module receives signals from two proximity transducers (installed on the pump’s rod) and triggers an alarm if the rod position deviates from the normal range, preventing pump failure.

High-Frequency Troubleshooting FAQ

Q: What does the “FAULT” LED indicate on the 176449-08?

A: The red “FAULT” LED indicates a critical error, such as:

Transducer failure (e.g., broken wire, faulty probe).
Input signal out of range (e.g., too high or too low voltage).
Module hardware failure (e.g., corrupted firmware, damaged components).

Check the 3500 Rack Configuration Software for detailed fault codes and follow the manufacturer’s troubleshooting steps.

Q: Can the 176449-08 be used with non-Bently transducers?

A: No, the module is designed to work exclusively with Bently Nevada proximity transducers (e.g., 3300 XL series). Non-Bently transducers may not meet the required signal specifications, leading to inaccurate measurements or module failure.

Q: How do I calibrate the 176449-08?

A: The module does not require regular calibration if the transducers are properly installed and maintained. However, if you suspect a calibration issue, use a proximity transducer simulator (e.g., Bently’s 3300 XL Simulator) to test the module’s input and output signals. Follow the manufacturer’s instructions for simulator setup and testing.

Q: Why is the 176449-08 not transmitting data to the DCS?

A: Check three things first:

Communication Gateway: Ensure the 3500/92 Communication Gateway is properly configured and connected to the DCS.
Protocol Settings: Verify that the DCS is configured for the correct protocol (e.g., Modbus TCP/IP) and that the module’s IP address is correct.
Module Status: Check the module’s LED indicators—if the “FAULT” LED is on, resolve the internal fault before proceeding.

Commercial Availability & Pricing

Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
