System Architecture & Operational Principle
The Bently 288055-01 is a Transient Data Interface (TDI) module residing in Slot 1 of a 3500 Series rack, positioning it at the edge of the control layer (Purdue Level 1/2). It pulls data from all monitor modules (e.g., 3500/40M, 3500/45) via the rack’s backplane. Upstream, it receives raw steady-state values (vibration amplitude, shaft position) and high-resolution transient waveforms (startup/shutdown events, trip conditions). Downstream, it pushes this data through Ethernet (RJ-45 or fiber optic) to Bently’s System 1 software or a plant DCS/SCADA. It also offers a front-panel USB-B port for direct PC configuration. The backplane connection provides galvanic isolation and a dedicated path for high-speed data, avoiding contention on the main system bus. Its primary advantage is capturing transient events that standard polling misses, giving engineers the waveform data needed for accurate fault diagnosis.
Core Technical Specifications
-
Physical Interface: 1x RJ-45 (10/100Base-TX), 1x Fiber Optic LC (100Base-FX), 1x USB-B (front panel)
-
Signal Type: Digital (Ethernet/IP), Analog (waveform data encapsulated in TCP packets)
-
Channel Density: Aggregates data from all modules in the rack (no fixed channel count)
-
Communication Bus: Proprietary backplane protocol to 3500 modules; Ethernet to external systems
-
Environmental Tolerance: Operating: -30°C to +65°C; Storage: -40°C to +85°C
-
Power Draw: ~10.5 W (24 VDC from rack)
-
Dimensions: 241.3 mm × 24.4 mm × 241.8 mm (9.50 in × 0.96 in × 9.52 in)
-
Weight: 0.91 kg (2.0 lbs)
-
Certifications: CE, UL, CSA, ATEX
-
Hot-Swap Capable: Yes, without system shutdown

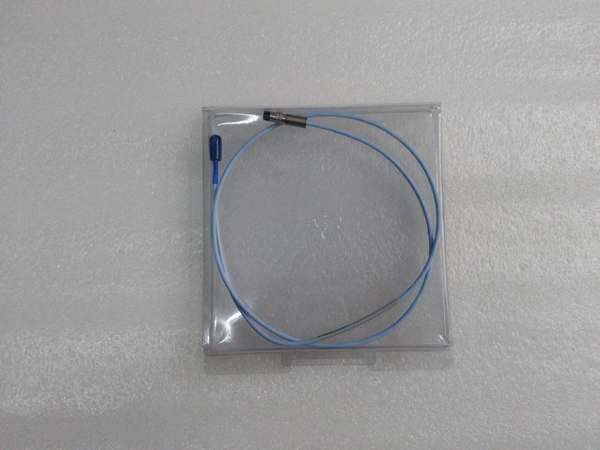

Bently 330105-02-12-10-02-CN
Customer Value & Operational Benefits
Accelerated Fault Diagnosis
Capturing transient waveforms during a trip event eliminates guesswork. Instead of seeing a simple alarm, you get the vibration signature that caused it. This cuts root-cause analysis time from hours to minutes.
Extended Asset Life
By integrating with System 1 for predictive analytics, you can schedule maintenance based on actual asset condition, not arbitrary calendars. This avoids premature overhauls and catches wear before it becomes a failure.
Minimized Downtime
The hot-swap design lets you replace a failed TDI module in under 15 minutes. Since it’s in Slot 1, access is straightforward, and the rest of the rack continues operating normally.
Field Engineer’s Notes (From the Trenches)
When installing the 288055-01, slot position is non-negotiable. It mustgo in Slot 1, right next to the power supply. I’ve seen techs put it elsewhere, and it won’t communicate with the monitor modules. Also, if you’re using fiber, double-check the connector type—100Base-FX uses SC connectors, not LC. I once spent half a day troubleshooting a “bad module” only to find the fiber patch cord was for a different standard. Lastly, always verify the rack’s power supply (3500/15) is healthy; a sagging supply voltage can cause intermittent TX/RX LED flickering that looks like a network problem.
Real-World Applications
-
Gas Turbine Overspeed ProtectionOn a 7FA gas turbine, the 288055-01 captures the vibration waveform during an overspeed trip initiated by the 3500/50 module. Engineers analyze the waveform to differentiate between true overspeed and a sensor glitch, preventing unnecessary inspections.
-
Hydrocracker Reactor Feed Pump MonitoringIn a refinery, the module streams continuous vibration data from a 3500/42 monitor to the plant’s DCS. Trend analysis identifies increasing bearing wear 30 days before it reaches the alarm threshold, allowing a scheduled shutdown.
Bently 330105-02-12-10-02-CN
High-Frequency Troubleshooting FAQ
Q: Why is the 288055-01’s “OK” LED off after installation?
A: First, verify the module is fully seated in Slot 1 and the rack power supply (3500/15) is on. Second, check the backplane connector pins for bent pins or debris. Third, use the 3500 Rack Configuration Software to confirm the module is recognized. If the LED remains off, the module may have a hardware fault.
Q: Can I use a standard Ethernet cable for the fiber-optic connection?
A: No. The 100Base-FX port requires a duplex fiber-optic cable with SC connectors. Using a copper Ethernet cable will not work and could damage the port.
Q: How do I configure the IP address for System 1 communication?
A: Use the 3500 Configuration Software. Navigate to the TDI module’s properties and enter the desired IP address, subnet mask, and gateway. Ensure the address is unique on your network and does not conflict with other devices.
Q: What does a flashing “TX/RX” LED indicate?
A: It indicates active data transmission or reception. If it’s flashing rapidly, the module is actively streaming data. If it’s off, there’s a communication breakdown with either the backplane (monitor modules) or the external network (System 1/DCS).
