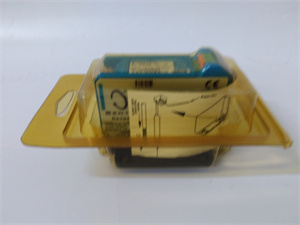

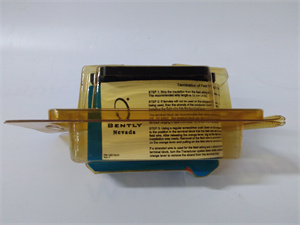

BENTLY 330180-90-05

Description

Detailed parameter table

BENTLY 330180-90-05

Product introduction

The 330180-90-05 from Bently Nevada is a high-performance eddy current proximity sensor, a core component of the 3300 XL Proximitor Sensor System, designed for precise measurement of shaft vibration, position, and displacement in rotating machinery. This sensor converts physical gap changes between its tip and a target surface into a proportional electrical signal, providing critical data for machinery health monitoring and protection. Bently Nevada’s 330180-90-05 is engineered to deliver reliable performance in harsh industrial environments, working seamlessly with the 330130-080-00-00 calibration fixture to ensure measurement accuracy throughout its operational lifecycle.

Bently Nevada’s 330180-90-05 serves as the frontline data acquisition component in machinery monitoring systems, capturing subtle changes in shaft behavior that indicate early-stage faults. Its 0 to 12.7 mm measurement range makes it ideal for applications requiring precise short-range proximity measurements, such as monitoring radial vibration in turbines, compressors, and motors. When paired with the 330130-080-00-00 calibration fixture during setup, this sensor ensures that the vibration and position data transmitted to controllers like the 1900/27 is accurate and trustworthy, forming the foundation of effective predictive maintenance and machinery protection strategies.

Core advantages and technical highlights

Precision measurement capability: The 330180-90-05 delivers exceptional linearity across its 0 to 12.7 mm range, ensuring accurate measurements even at the extremes of its operating range. When calibrated with the 330130-080-00-00 fixture, it maintains consistent sensitivity of 8.0 V/mm, providing reliable data for detecting subtle machinery movements that precede catastrophic failures.

Extreme environment durability: Constructed with 316L stainless steel housing and an IP68 protection rating, the 330180-90-05 withstands harsh industrial conditions including exposure to moisture, dust, chemicals, and high temperatures up to 121°C. This rugged design ensures reliable operation in turbine enclosures, compressor skids, and other demanding environments where machinery protection is critical.

Integrated signal integrity: The sensor features an integral 5-meter shielded cable with a Micro-D 15-pin connector, minimizing signal interference and ensuring clean data transmission to monitoring systems. This integrated design reduces connection points, minimizing potential failure points while maintaining electromagnetic compatibility with nearby equipment—a crucial feature in electrically noisy industrial environments.

System-optimized performance: Specifically engineered for compatibility with the 3300 XL system, the 330180-90-05 works seamlessly with 330130-080-00-00 calibration fixtures for precision setup and 330100-90-01 housings for protected installation. This system integration ensures that the sensor’s full performance capabilities are realized, from accurate data acquisition to reliable signal transmission through cables like the 330103-00-03-05-02-05.

Typical application scenarios

In power generation facilities, the 330180-90-05 is installed on turbine bearing housings to monitor shaft radial vibration and eccentricity. Calibrated with the 330130-080-00-00 fixture, it provides accurate measurements of rotor movement, enabling early detection of imbalance, misalignment, or bearing degradation. The sensor’s high-temperature rating allows installation in steam turbine enclosures, where it operates reliably alongside other monitoring components like the 330901-05-32-05-02-00 accelerometer to provide comprehensive machinery health data.

Oil and gas processing plants utilize the 330180-90-05 to monitor compressor shaft position and vibration in both centrifugal and reciprocating compressors. Housed in 330100-90-01 enclosures, these sensors detect shaft movement that indicates seal wear, rotor instability, or foundation issues. The data from multiple 330180-90-05 sensors is processed by 133819-01 signal conditioners and transmitted to 1900/27 controllers, forming a complete protection system that prevents unplanned downtime.

Manufacturing facilities deploy the 330180-90-05 on critical production machinery such as large motors, gearboxes, and paper machine rolls. The sensor monitors shaft runout and vibration, providing data that helps maintain product quality and prevent equipment damage. When calibrated with the 330130-080-00-00 fixture, it ensures that the precision required for high-tolerance manufacturing processes is maintained, even in the presence of factory floor vibration and electrical noise.

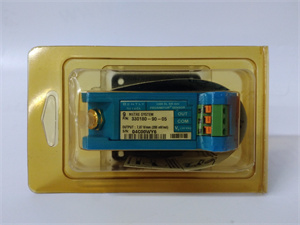

BENTLY 330180-90-05

Related model recommendations

330130-080-00-00 (Bently Nevada): Calibration fixture used to calibrate the 330180-90-05 sensor.

330100-90-01 (Bently Nevada): Protective housing for the 330180-90-05 in harsh environments.

133819-01 (Bently Nevada): Signal conditioner that processes output from the 330180-90-05.

330103-00-03-05-02-05 (Bently Nevada): Extension cable for system expansion with the 330180-90-05.

1900/27 (Bently Nevada): Controller that analyzes data from the 330180-90-05 sensor.

330180-90-01 (Bently Nevada): Variant with different cable length for specific installation requirements.

60M100-00 (Bently Nevada): Display unit that visualizes measurements from the 330180-90-05.

330901-05-32-05-02-00 (Bently Nevada): Accelerometer that complements the 330180-90-05 in comprehensive monitoring systems.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the 330180-90-05, select a mounting location that provides a clear line of sight to the target surface (typically a rotating shaft) and allows for proper gap adjustment. Ensure the mounting surface is clean, flat, and rigid to prevent measurement errors. Required tools include a torque wrench for mounting hardware, the 330130-080-00-00 calibration fixture, and a multimeter for signal verification. Inspect the sensor and cable for damage, checking for kinks, connector issues, or housing damage that could affect performance.

Calibration and commissioning: After mounting the 330180-90-05, use the 330130-080-00-00 fixture to set the initial gap and verify sensor output. Connect the sensor to its monitoring system and verify the 0 to 10 V output corresponds correctly to gap changes. For non-steel targets, perform additional calibration using the fixture to account for material conductivity differences. Document calibration results and establish baseline measurements during commissioning for future comparison.

Maintenance suggestions: To ensure reliable operation of the 330180-90-05, conduct quarterly visual inspections to verify secure mounting and check for cable damage or corrosion. During scheduled shutdowns, recalibrate using the 330130-080-00-00 fixture to ensure measurement accuracy hasn’t drifted. Clean the sensor tip carefully with a soft cloth to remove debris that could affect measurements. Inspect cable routing to ensure it isn’t subjected to excessive bending or mechanical stress. Compare current measurements with baselines to identify potential sensor degradation.

Service and guarantee commitment

Bently Nevada provides the 330180-90-05 with a 24-month warranty covering manufacturing defects and material failures, ensuring consistent performance under normal operating conditions. Our technical support team offers expert guidance on proper installation techniques, calibration procedures with the 330130-080-00-00 fixture, and troubleshooting system integration issues.

We offer specialized training on proximity sensor technology, installation best practices, and calibration procedures specific to the 330180-90-05. Beyond the warranty period, our service agreements include recalibration services, performance testing, and expedited replacement options to minimize downtime. Bently Nevada’s commitment to quality ensures the 330180-90-05 delivers reliable measurement performance throughout its operational lifecycle, backed by our global network of service professionals.
