Description
System Architecture & Operational Principle
The Bently 3500/04 136719-01 is an Internal Barrier I/O Module within the Bently Nevada 3500 Series Machinery Protection System, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the 3500 Series rack (occupying 1 half-height slot) and serves as the bridge between intrinsically safe transducers (e.g., proximity probes, magnetic pickups) and 3500 Series monitor modules (e.g., 3500/40M vibration monitors, 3500/45 displacement monitors).
Upstream Communication
Receives raw signals from intrinsically safe transducers via the 3500 rack’s backplane. These transducers measure critical machinery parameters (e.g., shaft vibration, displacement) in hazardous areas (e.g., oil & gas platforms, chemical plants).
Downstream Communication
Transmits processed signals to 3500 Series monitor modules for analysis. The module’s internal barriers ensure that only safe levels of voltage and current reach the transducers, preventing ignition in explosive atmospheres.
Operational Advantages
-
Hazardous Area Compliance: Certified for Class I Division 2 hazardous locations, making it suitable for use in environments with flammable gases or vapors.
-
Galvanic Isolation: Provides electrical isolation between the transducer and the monitor module, reducing noise and improving signal integrity.
-
High Density: Half-height design allows for more modules to be installed in a single rack, maximizing space efficiency.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Module Type
|
Internal Barrier I/O Module (Half-Height)
|
|
Input Channels
|
2 (for proximity probes or magnetic pickups)
|
|
Hazardous Location Rating
|
Class I Division 2 (CSA/NRTL/C certified)
|
|
Compatibility
|
3500 Series racks; works with 3500/40M, 3500/45, and other 3500 monitor modules
|
|
Dimensions (H×W×D)
|
241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in)
|
|
Weight
|
0.46 kg (1.01 lbs)
|
|
Power Supply
|
Powered via 3500 rack backplane (24 VDC)
|
|
Signal Isolation
|
Galvanic isolation (per channel)
|
|
Certifications
|
CE, UL, CSA, ATEX (hazardous locations)
|

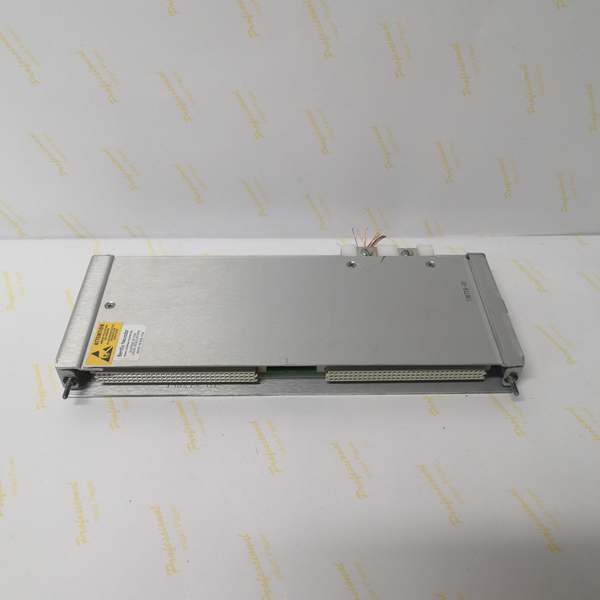

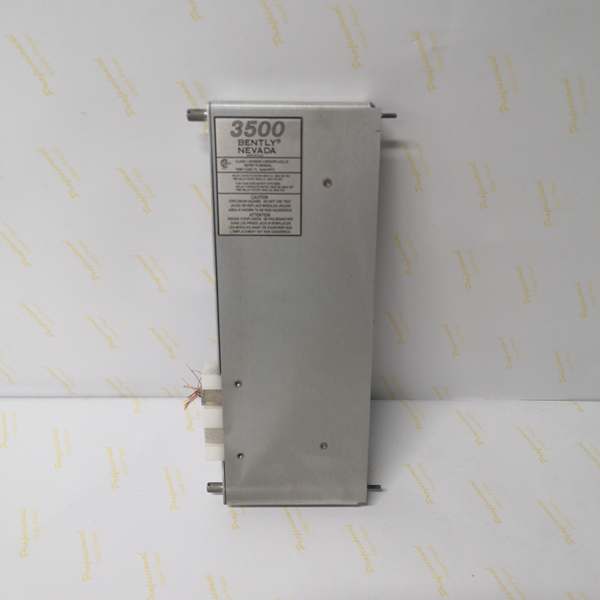

BENTLY 3500/04 136719-01
Customer Value & Operational Benefits
Enhanced Safety in Hazardous Areas
The 3500/04 136719-01’s intrinsic safety features ensure that transducer systems can be used in explosive atmospheres without risk of ignition. This is critical for industries like oil & gas and chemicals, where flammable materials are present.
Improved Signal Integrity
Galvanic isolation reduces electromagnetic interference (EMI) and noise, ensuring that monitor modules receive accurate signals from transducers. This leads to more reliable machinery monitoring and fewer false alarms.
Space Efficiency
The half-height design allows for more modules to be installed in a single 3500 Series rack, reducing the need for additional racks and saving valuable cabinet space.
Compliance with Industry Standards
The module’s certifications (CE, UL, CSA, ATEX) ensure compliance with international safety standards, making it a trusted choice for global industrial applications.
Field Engineer’s Notes (From the Trenches)
When installing the 3500/04 136719-01, always verify the rack slot compatibility—this is a half-height module, so it must be installed in a half-height slot. I once saw a site where a contractor tried to install it in a full-height slot, resulting in bent pins and a 2-hour downtime. Use the 3500 Rack Layout Guide to confirm the correct slot type.Another gotcha: check the transducer compatibility—the module supports proximity probes and magnetic pickups, but not all transducer types. Refer to the 3500 Series Compatibility Matrix to ensure the transducer is supported.If the module’s “FAULT” LED is red, check the backplane connection—loose connections are a common cause of faults. Use a multimeter to test the backplane pins for continuity. Also, ensure the module is properly seated in the slot.
Real-World Applications
-
Oil & Gas: Offshore Platform Compressor MonitoringAn offshore oil platform uses the 3500/04 136719-01 to connect intrinsically safe proximity probes to a 3500/40M vibration monitor. The module’s intrinsic safety features prevent ignition in the presence of flammable gases, while the monitor tracks compressor shaft vibration to prevent damage.
-
Chemical Processing: Reactor Feed Pump ProtectionA chemical plant uses the 3500/04 136719-01 to interface with magnetic pickups on a reactor feed pump. The module’s galvanic isolation reduces noise from nearby chemical reactors, ensuring the 3500/45 displacement monitor receives accurate signals to prevent pump failure.

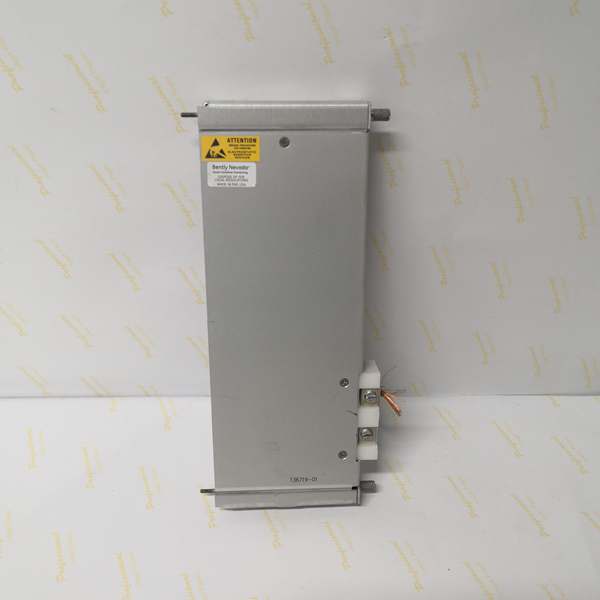

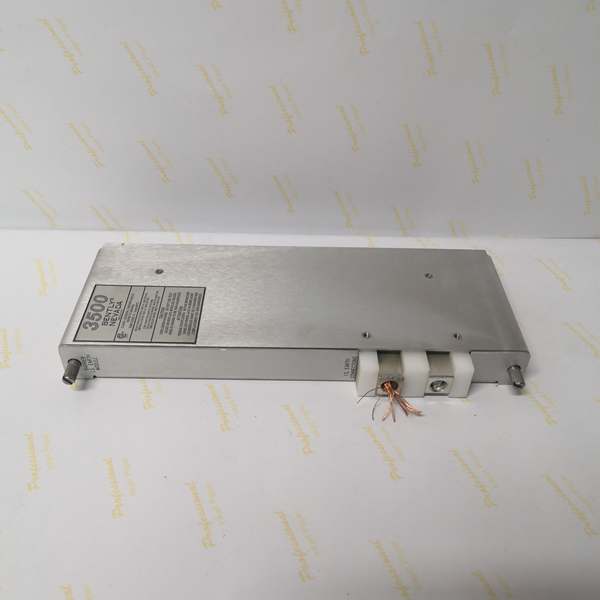

BENTLY 3500/04 136719-01
High-Frequency Troubleshooting FAQ
Q: What is the correct slot type for the 3500/04 136719-01?
A: The 3500/04 136719-01 is a half-height module and must be installed in a half-height slot in the 3500 Series rack. Installing it in a full-height slot will damage the module and the rack.
Q: Can the 3500/04 136719-01 be used with non-intrinsically safe transducers?
A: No, the module is designed exclusively for intrinsically safe transducers. Using non-intrinsically safe transducers will void the hazardous location certification and may cause ignition.
Q: How do I troubleshoot a “FAULT” LED on the 3500/04 136719-01?
A: First, check the backplane connection to ensure the module is properly seated. Second, verify the transducer is connected and powered. Third, use the 3500 Rack Configuration Software to check for fault codes. If the fault persists, replace the module.
Q: What certifications does the 3500/04 136719-01 have?
A: The module is certified for CE, UL, CSA, and ATEX hazardous locations, making it suitable for use in Class I Division 2 environments.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
