Description
System Architecture & Operational Principle
The Bently 3500/32 125712-01 is a 4-channel relay module within the Bently Nevada 3500 Series Machinery Protection System, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the 3500 Series rack (occupying 1 full-height slot) and serves as the bridge between 3500 Series monitor modules (e.g., 3500/40M radial vibration monitors, 3500/45 axial displacement monitors) and external safety systems (e.g., emergency shutdown solenoids, alarm annunciators).
Upstream Communication
Receives alarm/trip signals from 3500 Series monitor modules via the rack’s backplane. These signals are triggered by abnormal process variables (e.g., excessive vibration, shaft displacement beyond limits).
Downstream Communication
Transmits relay outputs to external devices to initiate protective actions:
-
Emergency Shutdown (ESD): Triggers solenoids to shut down turbines, compressors, or pumps during critical faults (e.g., overspeed, bearing failure).
-
Alarm Annunciation: Activates lights, horns, or SCADA alerts to notify operators of non-critical faults (e.g., high vibration, low lubrication pressure).
Operational Advantages
-
High Reliability: Uses electromechanical relays (not solid-state) for fail-safe operation—relays default to a known safe state during power loss, critical for safety shutdown circuits.
-
Independent Channel Isolation: Each relay operates independently with separate LED indicators, allowing maintenance teams to verify individual channel health without disrupting other safety functions.
-
Seamless Integration: Plug-and-play compatibility with 3500 Series monitor modules (e.g., 3500/40M, 3500/45) reduces engineering time—no configuration software required for basic operation.

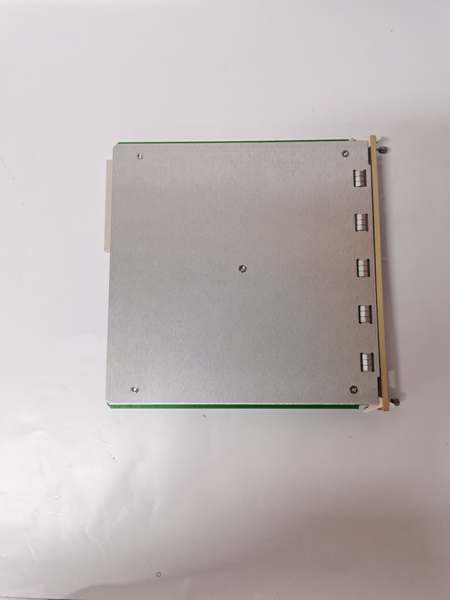

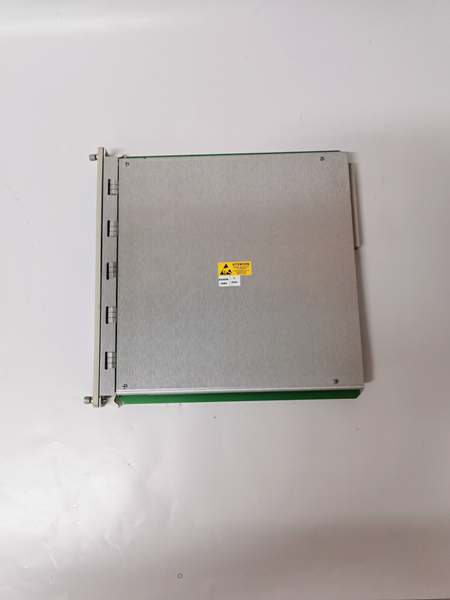

Bently Nevada 3500/32 125712-01
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Channel Count
|
4 independent channels
|
|
Relay Type
|
Single-pole, Double-throw (SPDT) per channel
|
|
Contact Rating
|
5A @ 250VAC (resistive); 30VDC (resistive); Max 2A DC / 5A AC (inductive)
|
|
Response Time
|
≤10 ms (typical)
|
|
Power Supply
|
Powered via 3500 rack backplane (24 VDC)
|
|
Operating Temperature
|
-30°C to +65°C (-22°F to 149°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity Tolerance
|
0%–95% non-condensing
|
|
Vibration Resistance
|
20g peak at 2kHz
|
|
Shock Resistance
|
30g peak
|
|
Contact Life
|
100,000 cycles at rated load
|
|
Termination Style
|
Euro-style screw terminals (field wiring connection)
|
|
Certifications
|
CE, UL, CSA, ATEX/IECEx (hazardous locations)
|
Customer Value & Operational Benefits
Enhanced Machinery Safety
The 3500/32 125712-01’s relay outputs are the final link between condition monitoring and machine safety. For example, a power plant using the module to monitor a steam turbine can trigger an emergency shutdown if vibration exceeds the trip threshold (e.g., 12 mils), preventing catastrophic blade failures or bearing seizures.
Reduced Downtime with Hot-Swappable Design
The module can be replaced without shutting down the 3500 system, minimizing production losses during maintenance. This is critical for 24/7 operations like oil & gas production, where even a short outage can result in significant costs.
Flexible Configuration
Each relay can be configured as alarm (non-critical) or trip (critical) via the 3500 Rack Configuration Software. For example, a refinery might configure relays 1–8 as alarm relays (triggering lights/horns) and relays 9–16 as trip relays (shutting down pumps).
Cost-Effective Solution
The 3500/32 125712-01 is a cost-effective alternative to custom relay panels. Its high channel density (4 channels per module) reduces the number of modules needed, saving cabinet space and installation costs.
Field Engineer’s Notes (From the Trenches)

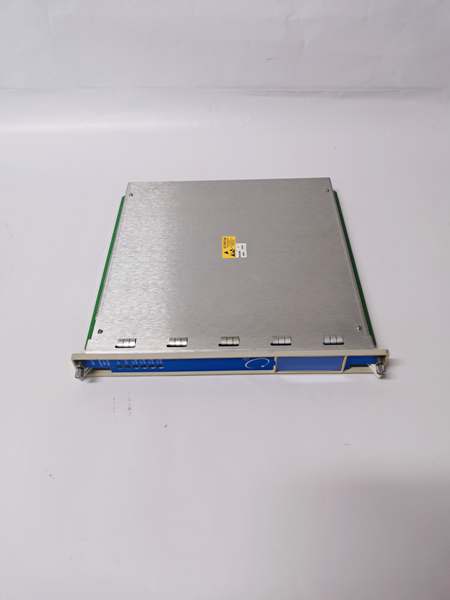

When installing the 3500/32 125712-01, always verify the rack slot requirements—the module occupies 1 full-height slot. I once saw a site where a contractor tried to install it in a half-height slot, resulting in bent pins and a 2-hour downtime. Use the 3500 Rack Layout Guide to plan slot assignments.Another gotcha: check the relay logic configuration—use the 3500 Rack Configuration Software to verify that each relay’s “normally energized (NE)” or “normally de-energized (ND)” state matches the application requirements. A power plant once had a false trip because a relay was configured for NE instead of ND, causing it to trigger when power was lost.If the module’s “CH Alarm” LED is red, check the upstream monitor module—the relay module is just acting on signals from the monitors. Use the 3500 software to view the monitor’s alarm status and ensure it’s not a false positive (e.g., a loose sensor wire).Bently Nevada 3500/32 125712-01
Real-World Applications
-
Power Generation: Steam Turbine Emergency ShutdownA coal-fired power plant uses the 3500/32 125712-01 to drive the turbine’s emergency shutdown solenoid. The module receives vibration signals from a 3500/40M monitor—if vibration exceeds 12 mils, the module triggers the solenoid, shutting down the turbine before damage occurs.
-
Oil & Gas: Centrifugal Compressor Anti-Surge ProtectionAn offshore oil platform uses the 3500/32 125712-01 to activate the compressor’s surge control valves. The module receives displacement signals from a 3500/45 monitor—if the compressor’s displacement exceeds 0.5 inches, the module opens the surge valves, preventing impeller damage.
High-Frequency Troubleshooting FAQ
Q: What does the “OK” LED indicate on the 3500/32 125712-01?
A: The green “OK” LED indicates that the module is receiving power from the 3500 rack and communicating with the monitor modules. If it’s off, check the rack’s power supply (3500/15) and the module’s connection to the backplane.
Q: Can the 3500/32 125712-01 be used with non-Bently monitors?
A: No, the module is designed exclusively for Bently Nevada 3500 Series monitors. Non-Bently monitors may not provide the correct signal format, leading to incorrect relay activation.
Q: How do I replace the 3500/32 125712-01?
A: Follow these steps:
-
Power Down: Turn off the 3500 rack’s main power supply.
-
Remove Old Module: Unscrew the module from the rack slot (use a Phillips screwdriver).
-
Install New Module: Secure the new 3500/32 125712-01 to the rack and tighten the screws.
-
Power Up: Turn on the main power supply and verify the module’s operation (check the “OK” LED).
Q: Why is the 3500/32 125712-01 not triggering the relay?
A: Check three things first:
-
Monitor Output: Ensure the upstream monitor module is reporting an alarm (use the 3500 software to view the monitor’s status).
-
Relay Logic: Verify that the relay’s “NE/ND” configuration matches the application requirements.
-
Wiring: Check the external wiring for loose connections or incorrect polarity (use a multimeter to test continuity).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
