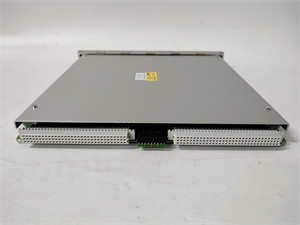

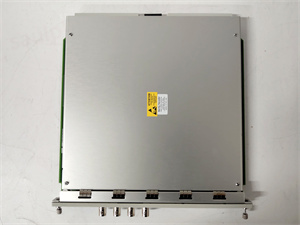

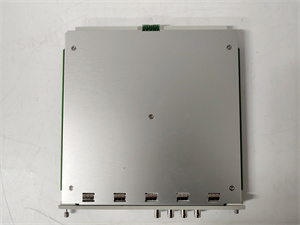

BENTLY 3500/40M

Product introduction

The 3500/40M from Bently Nevada is a high-performance communication module that serves as the critical networking hub within the 3500 Machinery Protection System. This advanced module enables seamless data exchange between field sensors, protection monitors, and enterprise-level control systems, acting as the digital nervous system of the machinery health monitoring ecosystem. By aggregating and distributing critical machinery data, the 3500/40M ensures that valuable insights from vibration, temperature, and position sensors—connected via cables like the 176449-01—reach both local operators and remote decision-makers.

Bently Nevada’s 3500/40M is engineered to bridge the gap between industrial machinery and modern data-driven operations. Its multi-protocol support and robust communication capabilities make it an essential component for facilities seeking to integrate machinery protection data into broader industrial automation systems. By providing reliable connectivity for the 3500 system, the 3500/40M enables comprehensive condition monitoring, predictive maintenance, and enhanced operational efficiency across critical machinery assets in various industrial sectors.

Core advantages and technical highlights

Multi-protocol flexibility: The 3500/40M supports industry-standard communication protocols including Modbus TCP/IP and OPC UA, along with Bently Nevada’s proprietary protocol for seamless system integration. This versatility allows the module to connect with diverse industrial systems—from SCADA and DCS platforms to enterprise asset management software—without requiring custom interface development, simplifying integration into existing automation architectures.

Redundant communication architecture: Featuring dual Ethernet ports with automatic failover capability, the 3500/40M ensures uninterrupted data transmission even during network disruptions. This redundancy is critical for maintaining visibility of machinery health status, ensuring that protection system alerts and diagnostic data reach operators regardless of primary network conditions, enhancing overall system reliability.

High-integrity data transmission: The 3500/40M maintains the integrity of critical machinery data collected from sensors connected via 176449-01 cables and other field devices. Its advanced signal processing capabilities prioritize time-sensitive protection data while efficiently handling historical trending information, ensuring both safety-critical alerts and diagnostic analytics are transmitted with appropriate priority and accuracy.

Scalable system expansion: Designed to support up to 32 connected nodes, the 3500/40M enables system scalability from single-machine monitoring to plant-wide machinery protection networks. Its RS-485 port facilitates daisy-chain connections for distributed I/O modules, while Ethernet capabilities support star-topology networking, providing flexible deployment options for growing monitoring requirements.

Typical application scenarios

In large-scale power generation facilities, the 3500/40M serves as the central communication gateway for turbine and generator protection systems. It aggregates vibration data from sensors connected via 176449-01 cables across multiple turbine trains, transmitting real-time protection status to control room displays while sending historical trend data to plant historians. This enables both immediate operator response to critical alerts and long-term performance analysis, supporting optimal maintenance scheduling and operational efficiency.

Oil and gas processing plants utilize the 3500/40M to integrate compressor train monitoring systems with centralized asset management platforms. The module connects to multiple 3500/70M monitors, collecting vibration and temperature data from reciprocating compressors and transmitting standardized information to plant SCADA systems via Modbus TCP/IP. This integration allows both local operators and remote reliability teams to access consistent machinery health data, enhancing collaboration and enabling data-driven maintenance decisions.

In manufacturing environments with multiple critical rotating assets, the 3500/40M provides a unified communication interface for diverse machinery protection systems. It consolidates data from pumps, motors, and gearboxes across production lines, making this information available to both local 3500/61 displays for operator visibility and to MES systems for production optimization. This comprehensive data distribution supports both machinery protection and process efficiency initiatives within the facility.

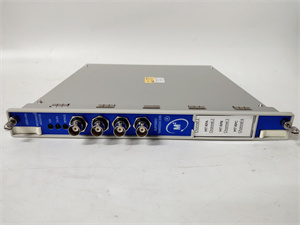

BENTLY 3500/40M

Related model recommendations

176449-01: Seismic sensor cable that provides critical vibration data to systems connected through the 3500/40M.

3500/70M: Reciprocating machinery monitor whose data is aggregated and transmitted by the 3500/40M.

3500/61: Display module that receives real-time data distributed by the 3500/40M for local visualization.

3500/22M: Power supply module that provides reliable operating power to the 3500/40M within the 3500 rack.

3500/34: Redundant communication gateway that complements the 3500/40M in large-scale installations.

125720-01: Temperature transmitter whose measurements are integrated into data streams via the 3500/40M.

3500/15: Relay module whose status information is reported through the 3500/40M to control systems.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the 3500/40M, verify compatibility with existing 3500 system components and ensure the 3500/20 rack has an available slot. Confirm the system power supply can accommodate the additional load. Gather required tools including a torque screwdriver, network cable tester, and laptop with 3500 configuration software. Inspect the module for shipping damage, particularly checking Ethernet ports and backplane connectors. Plan network topology in advance, especially for redundant configurations requiring separate switch paths.

Maintenance suggestions: Include the 3500/40M in quarterly network system checks, verifying status LEDs indicate normal operation and checking network link integrity. Review communication logs periodically to identify potential issues like packet loss or connection interruptions. Test redundant failover functionality semi-annually by disconnecting primary network connections and confirming automatic switchover. Keep firmware updated to the latest version during scheduled maintenance windows. Clean ventilation openings regularly to prevent overheating and ensure reliable operation in control room or cabinet environments.

Service and guarantee commitment

Bently Nevada backs the 3500/40M with a 36-month warranty covering manufacturing defects and performance issues under normal operating conditions. Our global technical support team provides expert assistance for network configuration, protocol implementation, and system integration with both 3500 components like the 176449-01 and third-party systems.

We offer comprehensive application engineering support to help design optimal communication architectures for specific industrial environments. Beyond the warranty period, our service agreements include technical support, firmware updates, and expedited replacement options to minimize downtime. Bently Nevada’s commitment to excellence ensures the 3500/40M delivers reliable communication performance throughout its operational lifecycle, supported by our industry-leading expertise in machinery protection solutions.
