Description
System Architecture & Operational Principle
The Bently 3500/42M 135489-01 is a 4-channel I/O module within the Bently Nevada 3500 Series Machinery Protection System, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the 3500 Series rack (typically in Slots 3–14, adjacent to 3500/42M monitors) and serves as the bridge between sensors (e.g., proximity probes, seismic transducers) and 3500/42M Proximitor/Seismic Monitors.
Upstream Communication
Receives raw signals from up to four sensors via the 3500 rack’s backplane:
-
Proximity Probes: Measure shaft radial vibration or axial position using eddy current technology.
-
Seismic Transducers: Measure casing vibration (velocity/acceleration) to detect mechanical faults (e.g., bearing wear, misalignment).
-
Accelerometers: Measure absolute vibration of machinery components (e.g., motor housings).
Downstream Communication
Transmits processed signals to 3500/42M Proximitor/Seismic Monitors, which convert the signals into usable data (e.g., vibration amplitude, phase angle) for analysis. The monitors then compare this data to user-programmable alarm setpoints to trigger alerts or shutdowns.
Operational Advantages
-
High Channel Density: 4 channels per module maximize the 3500 rack’s footprint efficiency, reducing the number of modules needed for complex monitoring tasks.
-
Internal Barrier Design: Provides galvanic isolation between sensors and the monitor, preventing electrical surges or faults from damaging equipment.
-
Hot-Swappable: Can be replaced without shutting down the 3500 system, minimizing downtime during maintenance.

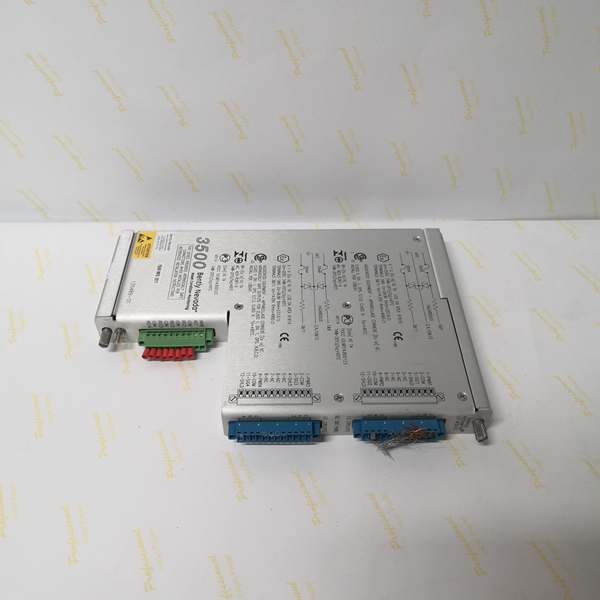

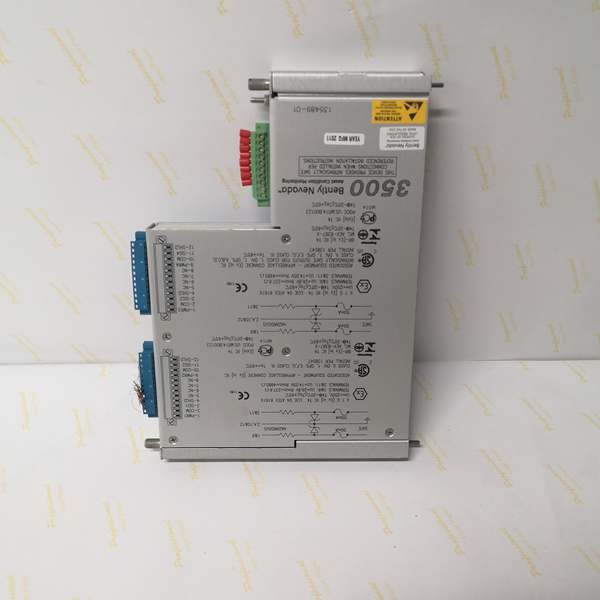

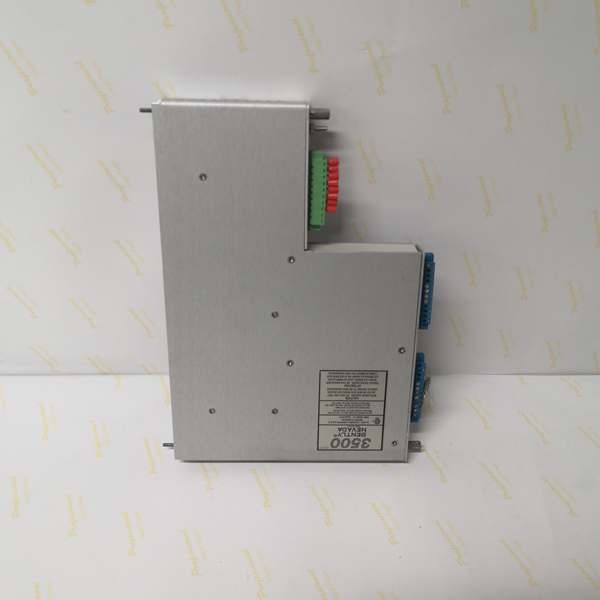

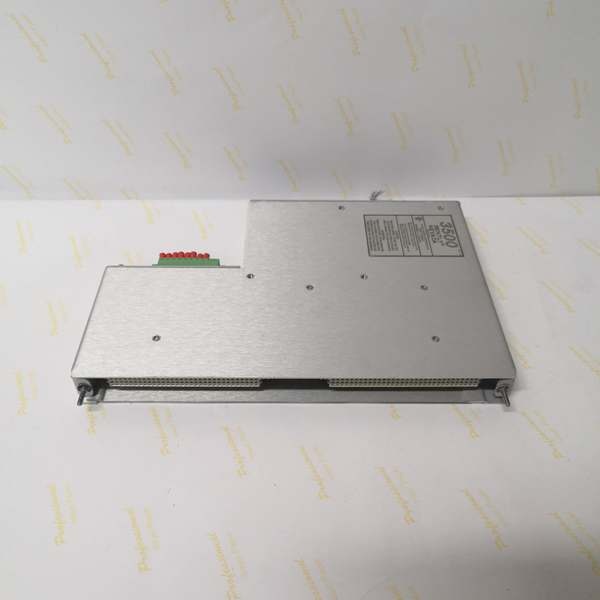

Bently 3500/42M 135489-01
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Channel Count
|
4 independent channels
|
|
Input Types
|
Proximity probes (8mm/11mm), seismic transducers, accelerometers
|
|
Signal Conditioning
|
Amplification, filtering (gap filter: -3 dB at 0.09 Hz; direct filter: -3 dB at 15.6 Hz)
|
|
Output Sensitivity
|
3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) (configurable)
|
|
Power Supply
|
24 VDC (from 3500 rack)
|
|
Power Consumption
|
7.7 W typical
|
|
Operating Temperature
|
-30°C to +65°C (-22°F to 149°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Dimensions (H×W×D)
|
241.3 mm × 24.4 mm × 163.1 mm (9.5 in × 0.96 in × 6.42 in)
|
|
Weight
|
0.46 kg (1.01 lbs)
|
|
Certifications
|
API 670, ATEX, IECEx, CE, UL
|
|
Compatibility
|
3500 Series racks; works with 3500/42M Proximitor/Seismic Monitors
|
Customer Value & Operational Benefits
Enhanced Machinery Protection
The 3500/42M 135489-01’s high-precision signal conditioning enables early detection of incipient faults (e.g., bearing wear, rotor imbalance). By providing accurate vibration and position data, it helps prevent catastrophic failures (e.g., turbine blade damage) and reduces unplanned downtime.
Seamless Integration with 3500 Series
As a core component of the 3500 Series, the 135489-01 integrates seamlessly with 3500/42M monitors and other 3500 modules (e.g., 3500/32 relays, 3500/92 communication gateway). This eliminates the need for custom wiring or protocol converters, reducing integration time and costs.
Reduced Maintenance Costs
The hot-swappable design allows technicians to replace a faulty module in minutes without interrupting the 3500 system’s operation. This minimizes labor costs and production losses—critical for facilities with tight maintenance budgets.
Compliance with Industry Standards
The module’s certifications (API 670, ATEX, IECEx) ensure it meets the rigorous requirements of industries like oil & gas, power generation, and chemical processing. This compliance is critical for facilities seeking to adhere to regulatory or corporate safety standards.
Field Engineer’s Notes (From the Trenches)
When installing the 3500/42M 135489-01, always verify the sensor compatibility—the module supports 8mm/11mm proximity probes, but not all sensor types. Refer to the 3500 Series Compatibility Matrix to ensure the sensor is supported. I once saw a site where a contractor used a non-compatible probe, resulting in no signal and a missed fault (bearing wear).Another gotcha: check the internal barrier connections—if the barrier is not properly seated, the module will not receive power. Use a multimeter to test the barrier’s continuity; if the resistance is above 10 Ω, replace the barrier.If the module’s “FAULT” LED is red, check the sensor wiring—loose or reversed wires are a common cause of faults. Use a multimeter to test for continuity between the sensor and the module’s input terminals. Also, ensure the sensor’s shield is grounded to the 3500 rack’s earth ground to reduce EMI.Bently 3500/42M 135489-01
Real-World Applications
-
Power Generation: Steam Turbine MonitoringA coal-fired power plant uses the 3500/42M 135489-01 to process signals from four proximity probes (installed on the turbine’s shaft) and two seismic transducers (installed on the turbine’s casing). The module transmits the data to a 3500/42M monitor, which triggers an alarm if vibration exceeds 12 mils, preventing damage to the turbine.
-
Oil & Gas: Centrifugal Compressor ProtectionAn offshore oil platform uses the 3500/42M 135489-01 to monitor a centrifugal compressor’s shaft displacement. The module receives signals from two proximity probes (installed on the compressor’s shaft) and transmits data to a 3500/42M monitor, which sends a signal to the platform’s DCS to shut down the compressor if displacement exceeds 0.5 inches, preventing impeller damage.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the 3500/42M 135489-01?
A: The red “FAULT” LED indicates a critical error, such as:
-
Sensor failure (e.g., broken wire, faulty probe).
-
Input signal out of range (e.g., too high or too low voltage).
-
Module hardware failure (e.g., corrupted firmware, damaged components).Check the 3500 Rack Configuration Software for detailed fault codes and follow the manufacturer’s troubleshooting steps.
Q: Can the 3500/42M 135489-01 be used with non-Bently sensors?
A: No, the module is designed exclusively for Bently Nevada sensors (e.g., 3300 XL proximity probes, seismic transducers). Non-Bently sensors may not meet the required signal specifications, leading to inaccurate measurements or module failure.
Q: How do I replace the 3500/42M 135489-01?
A: Follow these steps:
-
Power Down: Turn off the 3500 rack’s main power supply.
-
Remove Old Module: Unscrew the module from the 3500 rack’s slot (use a Phillips screwdriver).
-
Install New Module: Secure the new 3500/42M 135489-01 to the rack and tighten the screws.
-
Power Up: Turn on the main power supply and verify the module’s operation (check the “OK” LED).
Q: Why is the 3500/42M 135489-01 not transmitting data to the monitor?
A: Check three things first:
-
Sensor Power: Ensure the sensor (e.g., proximity probe) is receiving power (use a multimeter to measure the voltage at the sensor’s terminals).
-
Wiring: Check the sensor’s wiring for loose connections or incorrect polarity (use a multimeter to test for continuity).
-
Module Configuration: Use the 3500 Rack Configuration Software to verify that the module is configured for the correct sensor type (proximity probe, seismic transducer).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
