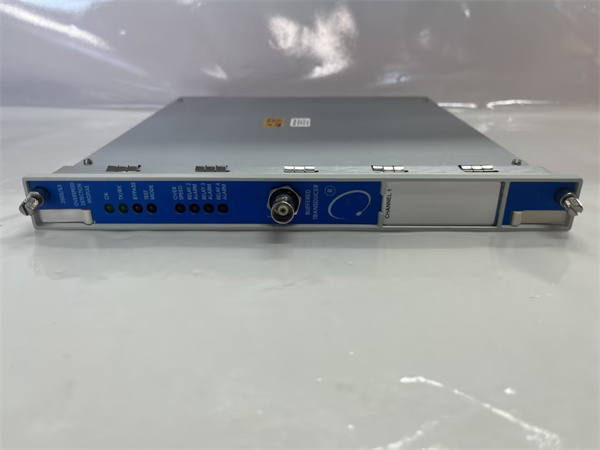

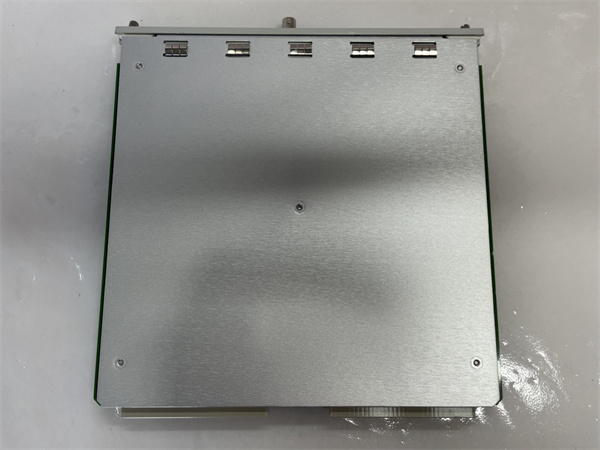

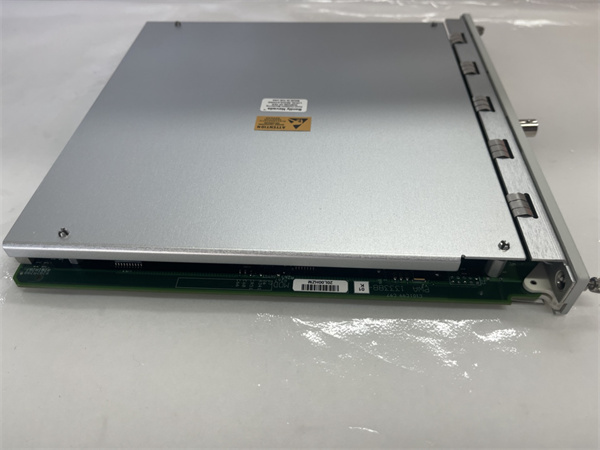

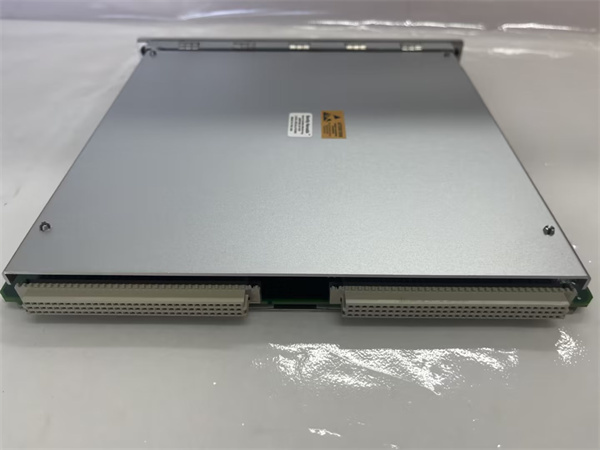

BENTLY 3500/53

Product introduction

The 3500/53 from Bently Nevada represents a series of advanced transient data monitoring modules that form a critical component of 3500 Machinery Protection Systems. These specialized 2-slot modules are engineered to capture and analyze high-resolution dynamic machinery behavior—focusing on transient events that provide essential insights beyond standard continuous monitoring. As the dedicated transient data acquisition solution in the 3500 ecosystem, the 3500/53 series bridges the gap between real-time protection and detailed diagnostic analysis, enabling proactive machinery health management across critical industrial applications.

Bently Nevada’s 3500/53 series is designed to address the unique challenges of monitoring dynamic machinery conditions. Unlike continuous monitoring modules that focus on steady-state operations, these transient monitors specialize in capturing short-duration events such as startup/shutdown sequences, load changes, and fault conditions. By recording these high-fidelity data snapshots, the 3500/53 series provides maintenance teams with the detailed information needed to detect early-stage faults, track machinery degradation, and optimize maintenance strategies in power generation, oil and gas, and manufacturing environments.

Core advantages and technical highlights

High-speed data acquisition: All variants in the 3500/53 series feature sampling rates up to 12,800 samples per second per channel, enabling capture of high-frequency vibration components and rapid machinery events that standard monitoring might miss. This capability is essential for detecting bearing defects, gear anomalies, and resonance conditions that manifest primarily during transient operations.

Intelligent event triggering: The 3500/53 series incorporates sophisticated trigger mechanisms that automatically capture data when predefined conditions occur—including alarm thresholds, machinery startup/shutdown, load changes, or external signals. This targeted recording optimizes memory usage while ensuring critical events are never missed, providing focused data for diagnostic analysis.

Robust data storage: Equipped with non-volatile memory (starting at 16 MB), the 3500/53 series retains transient records through power cycles and system shutdowns. This ensures valuable pre-fault and event data is preserved for post-incident analysis, supporting root cause determination and preventing recurrence of machinery issues.

Seamless ecosystem integration: The 3500/53 series integrates fully with the 3500 platform through rack backplanes, receiving configuration from system interface modules and sharing data with communication gateways. This integration allows transient data to be correlated with continuous monitoring data and process variables, providing a comprehensive view of machinery health.

Typical variants and applications

Standard transient monitor (exemplified by 133388-01)

The most common implementation, typified by 133388-01, serves as the standard transient monitoring solution across industries. Installed in 125744-02 racks and configured via 136180-01 modules, these variants capture critical data during turbine startups, compressor load changes, and motor starts/stops. Their 4-channel configuration and 16 MB memory make them ideal for general-purpose transient monitoring in most industrial applications.

Extended memory variant

Specialized 3500/53 variants with expanded memory capacities (up to 64 MB) are designed for applications requiring extended transient capture—such as long-duration startup sequences in large turbines or complex machinery with multiple operational phases. These variants provide additional storage for capturing extended events without compromising data resolution or quality.

High-temperature variant

For harsh environment applications, certain 3500/53 variants feature enhanced thermal ratings, operating reliably at temperatures up to +70°C. These ruggedized modules are deployed in engine test cells, high-temperature process equipment, and other extreme environments where standard electronics might experience performance degradation.

BENTLY 3500/53

System integration ecosystem

The 3500/53 series connects with key components in the 3500 ecosystem:

3500 series racks (including 125744-02) provide physical mounting and backplane connectivity

Configuration modules like 136180-01 program monitoring parameters and trigger conditions

Vibration sensors connected via 136711-01 cables supply input signals for transient analysis

Communication gateways such as 140734-01 transmit transient data to enterprise systems

Display modules including 3500/60 163179-01 visualize transient events for operators

I/O modules like 125712-01 provide process data for correlation with transient measurements

3500 System Configuration Software enables setup and data analysis for all 3500/53 variants

This integrated approach ensures transient data is captured, analyzed, and acted upon within a comprehensive machinery protection strategy.

Installation, commissioning and maintenance guidelines

Installation preparation: When installing any 3500/53 module, verify compatibility with target rack firmware and ensure two adjacent slots are available. Confirm power supply capacity meets the module’s requirements (up to 12 W). Gather necessary tools including torque screwdrivers, oscilloscopes for calibration, and configuration laptops. Inspect modules for shipping damage, paying special attention to input connectors and backplane pins.

Maintenance best practices: Include all 3500/53 modules in quarterly inspections, verifying status indicators and memory usage. Implement regular data download procedures to prevent memory overflow. During scheduled maintenance, verify trigger configurations and calibration through system interface modules. Clean input connectors annually with approved electronic contact cleaner. Update firmware during major system upgrades to ensure compatibility with latest configuration features and diagnostic capabilities.

Service and guarantee commitment

Bently Nevada provides comprehensive support for the 3500/53 series, including a 36-month warranty covering manufacturing defects and performance issues across all variants. Our technical support team offers expert guidance on configuration, trigger setup, and data analysis for transient events.

We provide specialized training on transient data interpretation, module programming, and diagnostic techniques specific to the 3500/53 series. Beyond the warranty period, our service agreements include technical support, calibration verification, and expedited replacement services to minimize downtime. Bently Nevada’s commitment to quality ensures reliable performance of 3500/53 modules throughout their operational lifecycle, backed by our global network of service professionals.
